Low Intensity Building Obstruction Light LED Solar Powered Aviation Obstruction Light

Low Intensity Building Obstruction Light LED Solar Powered Aviation Obstruction Light

Low Intensity Building Obstruction Light

Building Obstruction Light LED Solar

Low Intensity solar aircraft warning light

Place of Origin:

SHAANXI, CHINA

Brand Name:

WelandSignal

Certification:

ROHS, CE

Model Number:

AFS2104

Contact Us
Request A Quote
Product Details
Light Source:
Super Bright LED
Color:
Red, Green, Yellow, Blue, White
Material:
Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection
Working Mode:
Flashing, Steady On
Peak Intensity:
10cd, 32.5cd, 55cd
Waterproof:
IP68
Solar Panel:
2W Mono
Battery:
LifePO4 Lithium Battery
Mounting:
4pcs Bolts
Warranty:
3 Years
OEM:
Color, Flashing Frequency, Logo, Carton Design
Standard:
FAA,ICAO
Application:
Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area
Highlight:

Low Intensity Building Obstruction Light

,

Building Obstruction Light LED Solar

,

Low Intensity solar aircraft warning light

Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
USD$59~79
Packaging Details
Each has one small carton and 6pcs in one big carton
Delivery Time
3-7 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
20000pcs/month
Product Description

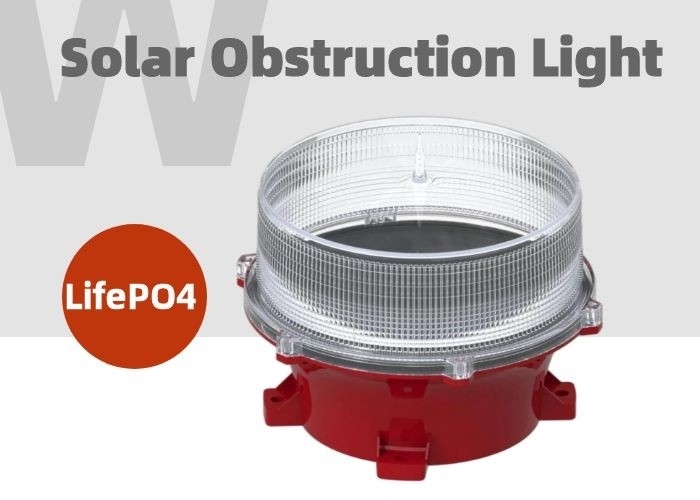

Low Intensity LED Solar Powered Aviation Obstruction Light For Tall Buildings

The AFS2104 solar aviation warning light is designed for masts & tower obstacles (telecommunication, GSM, radio & TV), tall cranes, chimneys, tall buildings, sport stadiums, light pylons, high voltage towers and any other potentially hazardous obstructions to air traffic. Featuring a flashing red safety light, the latest LED technology, a high grade silicon solar battery module and a maintenance-free LifePO4 battery, the light will provide over 25 days of continuous operation in rainy and cloudy conditions.
The housing uses PC and a die-casting aluminium base, helping to provide good water tightness. The built-in photocell switches on and off at both dusk and dawn. The product has the advantage of shockproof and can withstand the harsh effect of the environment (such as thunder, storm, typhoon and hailstone).

Low Intensity Building Obstruction Light LED Solar Powered Aviation Obstruction Light 0

NOTE:

  • Year-round, unrestricted solar exposure is critical to long-term performance. Shade dramatically reduces the ability of the light to charge its battery.
  • Charge every 3 months when storing.



KEY FEATURES



ENERGY SAVING

  • Low Power Consumption
  • Will charge under nearly all weather conditions and up to 200 hours of operating capacity.
  • Over 60% cost saving, compared with using traditional types. No cables or electrical infrastructure required, and lab also saves by no need to take heavy to the top.



UP-TO-DATE MATERIALS AND TECHNOLOGY

  • We update main components every year with the rapid development of solar panel, batteries and LEDs.
  • We always keep ourselves up-to-date.



RELIABLE

  • Patented dome protects solar panel while improving efficiency, sheds snow.
  • Regulation automatically turns on at dusk and off at dawn.



SPECIFICATIONS





Low Intensity LED Solar Powered Aviation Obstruction Light For Tall Buildings



Mechanical Specifications Electrical Specifications



Peak Intensity



Steady On : 32.5cd

Flashing: 55cd

Structure

Solar Integrated Design

Bird deterrent conjoined with lens for not easy to break



Working Model



Flahing/Steady On Lens Material Polycarbonate



Protect Level



IP68 Solar Panel 2W mono



Energy Manage System (EMS)



Intelligent Microprocessor Storage Battery 3.7V8.8AH LiFePO4 battery



Temperature



-45℃~70℃ Function Optional Synchronization



Continuous Working Hours

250hours Mounting 4 bolts M6 for Mounting



Automatic Light Control (ALC)



Turn on at night and off at daytime automatically OEM Service

Color: Red, Green, Yellow, Blue, White

Flashing frequency



SIZE (mm)

Low Intensity Building Obstruction Light LED Solar Powered Aviation Obstruction Light 1

STANDARD



CATEGORIES: Low intensity obstruction light, FAA L810, ICAO type A, ICAO type A,Solar obstruction light, Tower obstruction light.Solar obstruction light, Tower obstruction light. Chimney obstacle warning light ,Bridge navigation light, Tall buildings obstacle light.

Low Intensity Building Obstruction Light LED Solar Powered Aviation Obstruction Light 2
