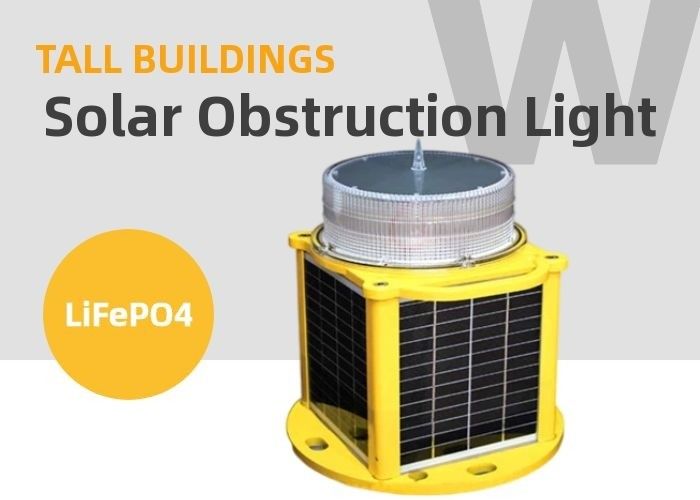

7KM Visible Ol800 Solar Obstruction Light IP68 250 Hours Endurance

7KM Visible Ol800 Solar Obstruction Light IP68 250 Hours Endurance

  • 7KM Visible Ol800 Solar Obstruction Light IP68 250 Hours Endurance
7KM Visible Ol800 Solar Obstruction Light IP68 250 Hours Endurance
Product Details:
Place of Origin: SHAANXI, CHINA
Brand Name: WelandSignal
Certification: ROHS, CE
Model Number: OL810
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD$149-169
Packaging Details: Each has one small carton and 6pcs in one big carton
Delivery Time: 3-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Light Source: Super Bright LED Made By OSRAM Color: Red, Green, Yellow, Blue, White
Material: Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection Working Mode: Flashing, Steady On
Visibility: 6-7KM Automatic Light Control (ALC): Adjusts Output Intensity In Response To Unusually Low Amounts Of Sunlight To Ensure Continued Operation
Waterproof: IP68 Solar Panel: 3W * 4pcs Mono
Battery: Designed For 15 Year Battery Life; Replaceable And Recyclable Mounting: 4pcs Bolts
Design: Solar Integrated Design Bird Deterrent Conjoined With Lens For Not Easy To Break Continuous Working Hours: 250hours
Standard: Complies With ICAO Low-Intensity Obstacle Light Type A & B - Annex 14, 5th Edition, July 2009 (Red) And 6th Edition, July 2013 (Red). Application: Crane Marking Light, Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area
High Light:

7KM Visible Solar Obstruction Light

,

Ol800 Solar Obstruction Light IP68

,

IP68 solar powered obstruction lights

Ol800 Solar Obstruction Light

In remote locations where 110V or 220V cannot be used unless the cost is prohibitive, solar powered FAA and ICAO obstruction lights have become the preferred and often necessary for marking utility transmission towers, telecom towers, wind farm testing, airports and other tall buildings solution structure. Harnessing solar energy is simpler, greener, cheaper, and also takes the lights off the grid.

Welandsignal' Ol800 Solar Obstruction Lights meet or exceed the specifications of the 2008 FAA Solar Obstruction Lights bulletin. Every solar system must be sized and engineered for a specific installation and geographic location, so be sure to contact us for a sizing analysis and a quote when you start your next project.


SPECIFICATIONS



Ol800 Solar Obstruction Light



Mechanical Specifications Electrical Specifications



Peak Intensity



10-800cd adjustable Structure

Solar Integrated Design

Bird deterrent conjoined with lens for not easy to break



Working Model



Flahing/Steady On Lens Material Polycarbonate



Protect Level



IP68 Solar Panel 3W * 4pcs mono



Energy Manage System (EMS)



Intelligent Microprocessor Storage Battery 12.8V4AH LiFePO4 battery



Temperature



-45℃~70℃ Function Optional Synchronization



Continuous Working Hours

250hours Mounting 4 bolts M6 for Mounting



Automatic Light Control (ALC)



Turn on at night and off at daytime automatically OEM Service Color: Red, Green, Yellow, Blue, White
Flashing frequency




7KM Visible Ol800 Solar Obstruction Light IP68 250 Hours Endurance 0


Intuitive setup and programming
• Top mounted LED display with simple "click to activate" function.
• Easily check light settings without an external controller.
• Programmable via optional infrared remote control.
Scalable, cost-effective design
• Customizable for best performance value.
• Multiple battery pack options.
Smart Energy Management
• Best-in-class high-efficiency solar panels.
• Maximum Power Point Tracking (MPPT).
• Patented Energy Management System (EMS).
• Ensure maximum battery life and lighting performance, even in worst environment.
Durable, low maintenance
• Compact, self-contained, maintenance-free unit.
• Integrated solar panels, batteries, electronics and LED lights resource.
• Replaceable battery extends life to more than five years. trustworthy
• Thousands of installations worldwide.
• Our solar LED lights are permanent and Temporary installation.



GPS Synchronization

7KM Visible Ol800 Solar Obstruction Light IP68 250 Hours Endurance 1

NOTE:

  • Year-round, unrestricted solar exposure is critical to long-term performance. Shade dramatically reduces the ability of the light to charge its battery.
  • Charge every 3 months when storing.


KEY FEATURES

  • No limitation on distance or objects between lights
  • No quality limitation
  • Internal GPS synchronization modules with no enteral components or wires required.
  • Each lantern operates independently
  • GPS receiver is housed with the lantern and no additional power suppliers, aerials or control systems are required.
  • Lanterns set to the same flash pattern will come into synchronization.



SIZE (mm)

7KM Visible Ol800 Solar Obstruction Light IP68 250 Hours Endurance 2

STANDARS

High-rise building aviation obstacle light configuration scheme



The obstacle lights set up by high-rise buildings and building complexes should be able to see the outline of the object from all directions, and the horizontal direction can also refer to the barrier lights set at a distance of about 45 meters, and the general building should install obstacle lights at the top of it, and the installation height H is calculated from the horizontal ground. Reference Standards: CAAC, ICAO, FAA MH/T6012-2015, MH5001-2013



7KM Visible Ol800 Solar Obstruction Light IP68 250 Hours Endurance 3




  • When h ≤ 45m, a low light intensity dual aviation obstacle light or low light intensity aviation obstacle light shall be set at the top
  • When 45 < h < 105m, medium light intensity B-type aviation obstacle light shall be set at the top, and low light intensity aviation obstacle light shall be set at 1 / 2 of its height
  • When 105 ≤ h < 150m, medium light intensity type a aviation obstacle light shall be set at the top, and low light intensity aviation obstacle light shall be set at 1 / 2 of its height
  • High light intensity aviation obstruction lamps shall be set at the top of H ≥ 150m and at the interval of 75-105m, and medium light intensity aviation obstruction lamps shall be set between the layers of high light intensity aviation obstruction lamps
