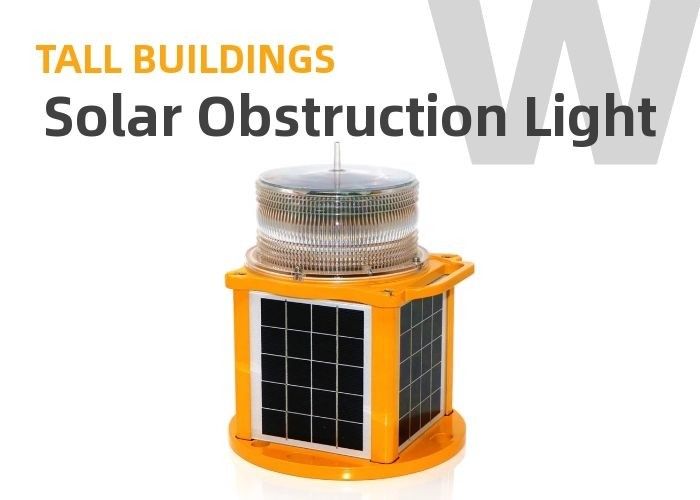

ROHS Solar Building Obstruction Light IP68 Low Intensity Obstacle Light

Product Details:

Place of Origin:	SHAANXI, CHINA
Brand Name:	WelandSignal
Certification:	ROHS, CE
Model Number:	AFS400

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD$149-169
Packaging Details:	Each has one small carton and 6pcs in one big carton
Delivery Time:	3-7 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	20000pcs/month

Contact Now

Detailed Product Description

Light Source:	Super Bright LED Made By OSRAM	Color:	Red, Green, Yellow, Blue, White
Material:	Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection	Working Mode:	Flashing, Steady On
Visibility:	6-7KM	Automatic Light Control (ALC):	Adjusts Output Intensity In Response To Unusually Low Amounts Of Sunlight To Ensure Continued Operation
Waterproof:	IP68	Solar Panel:	3W * 4pcs Mono
Battery:	Designed For 15 Year Battery Life; Replaceable And Recyclable	Mounting:	4pcs Bolts
Ingress:	EN 60529 IP 68 Immersion MIL-STD-202G Immersion & Damp Heat Cycling MIL-STD-810G Rain & Salt Fog	OEM:	Color, Flashing Frequency, Logo, Carton Design
Standard:	Complies With ICAO Low-Intensity Obstacle Light Type A & B - Annex 14, 5th Edition, July 2009 (Red) And 6th Edition, July 2013 (Red).	Application:	Crane Marking Light, Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area
High Light:	Solar Building Obstruction Light IP68 , IP68 Low Intensity Obstacle Light , IP68 solar barricade warning light

Solar Led Low Intensity Obstacles Light For Tall Buildings in an easy-to-install, low-maintenance package.,has three engine sizes are available and include new user-friendly features.Complies with ICAO requirements for Type A and Type B low-intensity obstruction lights according to ICAO Annex 14, Volume 1, 5th Edition, July 2009 and 6th Edition, July 2013 (red).Type L-810 obstruction light compliant with FAA Advisory Circular AC 150/5345-43G 09/26/12 (red).Intertek compliance test reports and global mock maps are available upon request.

SPECIFICATIONS

Solar led Low Intensity Obstacles Light for tall buildings
Mechanical Specifications		Electrical Specifications
Peak Intensity	10-800cd adjustable	Structure	Solar Integrated Design Bird deterrent conjoined with lens for not easy to break
Working Model	Flahing/Steady On	Lens Material	Polycarbonate
Protect Level	IP68	Solar Panel	3W * 4pcs mono
Energy Manage System (EMS)	Intelligent Microprocessor	Storage Battery	12.8V4AH LiFePO4 battery
Temperature	-45℃~70℃	Function Optional	Synchronization
Continuous Working Hours	250hours	Mounting	4 bolts M6 for Mounting
Automatic Light Control (ALC)	Turn on at night and off at daytime automatically	OEM Service	Color: Red, Green, Yellow, Blue, White Flashing frequency

ROHS Solar Building Obstruction Light IP68 Low Intensity Obstacle Light 0

Intuitive setup and programming
• Top mounted LED display with simple "click to activate" function.
• Easily check light settings without an external controller.
• Programmable via optional infrared remote control.
Scalable, cost-effective design
• Customizable for best performance value.
• Multiple battery pack options.
Smart Energy Management
• Best-in-class high-efficiency solar panels.
• Maximum Power Point Tracking (MPPT).
• Patented Energy Management System (EMS).
• Ensure maximum battery life and lighting performance, even in worst environment.
Durable, low maintenance
• Compact, self-contained, maintenance-free unit.
• Integrated solar panels, batteries, electronics and LED lights resource.
• Replaceable battery extends life to more than five years. trustworthy
• Thousands of installations worldwide.
• Our solar LED lights are permanent and Temporary installation.

GPS Synchronization

ROHS Solar Building Obstruction Light IP68 Low Intensity Obstacle Light 1

NOTE:

Year-round, unrestricted solar exposure is critical to long-term performance. Shade dramatically reduces the ability of the light to charge its battery.
Charge every 3 months when storing.

KEY FEATURES

No limitation on distance or objects between lights
No quality limitation
Internal GPS synchronization modules with no enteral components or wires required.
Each lantern operates independently
GPS receiver is housed with the lantern and no additional power suppliers, aerials or control systems are required.
Lanterns set to the same flash pattern will come into synchronization.

SIZE (mm)

STANDARS

High-rise building aviation obstacle light configuration scheme

The obstacle lights set up by high-rise buildings and building complexes should be able to see the outline of the object from all directions, and the horizontal direction can also refer to the barrier lights set at a distance of about 45 meters, and the general building should install obstacle lights at the top of it, and the installation height H is calculated from the horizontal ground. Reference Standards: CAAC, ICAO, FAA MH/T6012-2015, MH5001-2013

When h ≤ 45m, a low light intensity dual aviation obstacle light or low light intensity aviation obstacle light shall be set at the top
When 45 ＜ h ＜ 105m, medium light intensity B-type aviation obstacle light shall be set at the top, and low light intensity aviation obstacle light shall be set at 1 / 2 of its height
When 105 ≤ h ＜ 150m, medium light intensity type a aviation obstacle light shall be set at the top, and low light intensity aviation obstacle light shall be set at 1 / 2 of its height
High light intensity aviation obstruction lamps shall be set at the top of H ≥ 150m and at the interval of 75-105m, and medium light intensity aviation obstruction lamps shall be set between the layers of high light intensity aviation obstruction lamps
