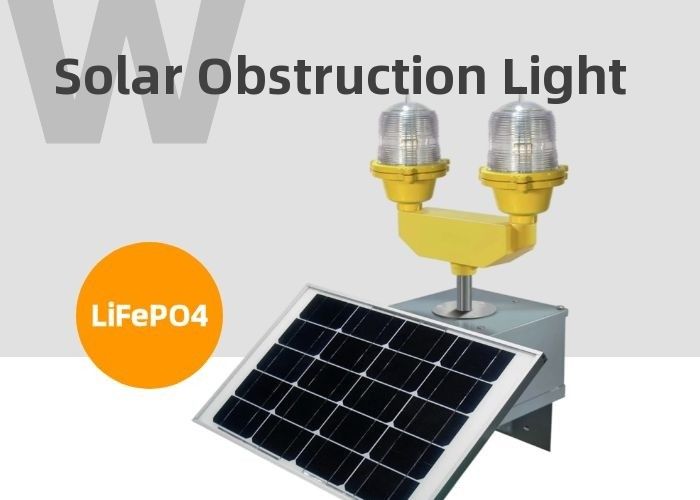

FAA Double Solar Powered Aircraft Warning Lights For Buildings IP67

FAA Double Solar Powered Aircraft Warning Lights For Buildings IP67

  • FAA Double Solar Powered Aircraft Warning Lights For Buildings IP67
FAA Double Solar Powered Aircraft Warning Lights For Buildings IP67
Product Details:
Place of Origin: SHAANXI, CHINA
Brand Name: WelandSignal
Certification: ROHS,CE
Model Number: OLS32-D
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD$299
Packaging Details: Each has one small carton and 6pcs in one big carton
Delivery Time: 3-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Light Source: Super Bright Medium Intensity LED Color: Red, Green, Yellow, Blue, White
Optional Function: Fault Alarm System Material: Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection
Working Mode: Service+Standby Or Service+Service Peak Intensity: 10cd/32cd/200cd
Waterproof: IP67 Mounting: 4pcs Bolts
Battery Option: LifePO4 Lithium Battery With 15 Years Life OEM: Color, Flashing Frequency, Logo, Carton Design
Standard: ICAO Annex 14 6th Edition, Medium Intensity Type B, FAA L864/865 Application: Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area
High Light:

FAA Aircraft Warning Lights

,

Aircraft Warning Lights For Buildings IP67

,

FAA aviation warning lights IP67

Double Solar Powered Aircraft Warning Lights
The FAA recommends the use of stable red obstruction lights on towers and communication obstacles 50 to 2,200 feet high, which can be dangerous to small aircraft and helicopters at night. Steady red obstruction lights are recommended at 150 feet, moderate red or white flashing lights at 350 feet, and multi-level lights at 1750 feet. See FAA Advisory.
The L-864/L-865 Medium Intensity Dual LED Beacon Obstruction Lights are designed to illuminate communication towers, chimneys, wind turbines and other air navigation obstacles. Solid red LED beacons and flashing white LED beacons meet FAA advisory and FCC guidelines.
Unlike conventional xenon flash tube technology, little maintenance is required during its lifetime. The operating voltage of the system is less than 200VDC, significantly lower than that for which xenon flash tubes are designed, representing a safety improvement.
The L-864/L-865 LED Dual Beacon Obstruction Lights operate on a 48VDC power supply. The power/control box can be placed up to 550 feet from the light engine, such as the bottom of a tower.
The L-864/L-865 Beacon Obstruction Lights come with a 5-year warranty, with a typical lifespan approaching 15 years.


SPECIFICATIONS




Double Solar Powered Aircraft Warning Lights


Mechanical Specifications Electrical Specifications



Peak Intensity



10cd/32cd/200cd Lens Material Polycarbonate



Working Model



Steady on/ Flashing /on off controlled by a switch inside Storage Battery AGM,GEL,Lithium Battery option



Protect Level



IP67 Solar Panel mono-crystalline 18% efficiency



LED



Super-bright medium intensty Leds Function Optional Synchronization



Temperature



-45℃~70℃ Mounting 4 bolts M6



Automatic Light Control (ALC)



Turn on at night and off at daytime automatically OEM Service Color: Red, Green, Yellow, Blue, White
Flashing frequency







FAA Double Solar Powered Aircraft Warning Lights For Buildings IP67 0

KEY FEATURES


ENERGY SAVING

  • The obstruction lights can operate with solar panels and batteries in order to offer low power consumption.
  • Will charge under nearly all weather conditions and up to 200 hours of operating capacity.
  • Over 60% cost saving, compared with using traditional types. No cables or electrical infrastructure required, and lab also saves by no need to take heavy to the top.


UP-TO-DATE MATERIALS AND TECHNOLOGY

  • We update main components every year with the rapid development of solar panel, batteries and LEDs.
  • We always keep ourselves up-to-date.


RELIABLE

  • Designed to meet FAA and ICAO obstruction standards
  • Regulation automatically turns on at dusk and off at dawn.



SIZE (mm)
FAA Double Solar Powered Aircraft Warning Lights For Buildings IP67 1
Bracket
FAA Double Solar Powered Aircraft Warning Lights For Buildings IP67 2



COMPLIANT TO

FAA AC NO: 150/5345-43FAA
ICAO Annex 14, 4th Edition, July 2004
ICAO Aerodromes Design Manual, Chapter 18





STANDARS

High-rise building aviation obstacle light configuration scheme
The obstacle lights set up by high-rise buildings and building complexes should be able to see the outline of the object from all directions, and the horizontal direction can also refer to the barrier lights set at a distance of about 45 meters, and the general building should install obstacle lights at the top of it, and the installation height H is calculated from the horizontal ground. Reference Standards: CAAC, ICAO, FAA MH/T6012-2015, MH5001-2013
OM2K SOLAR LED Tall Building Medium Intensity Aviation Obstruction Lights 2

  • When h ≤ 45m, a low light intensity dual aviation obstacle light or low light intensity aviation obstacle light shall be set at the top
  • When 45 < h < 105m, medium light intensity B-type aviation obstacle light shall be set at the top, and low light intensity aviation obstacle light shall be set at 1 / 2 of its height
  • When 105 ≤ h < 150m, medium light intensity type a aviation obstacle light shall be set at the top, and low light intensity aviation obstacle light shall be set at 1 / 2 of its height
  • High light intensity aviation obstruction lamps shall be set at the top of H ≥ 150m and at the interval of 75-105m, and medium light intensity aviation obstruction lamps shall be set between the layers of high light intensity aviation obstruction lamps
