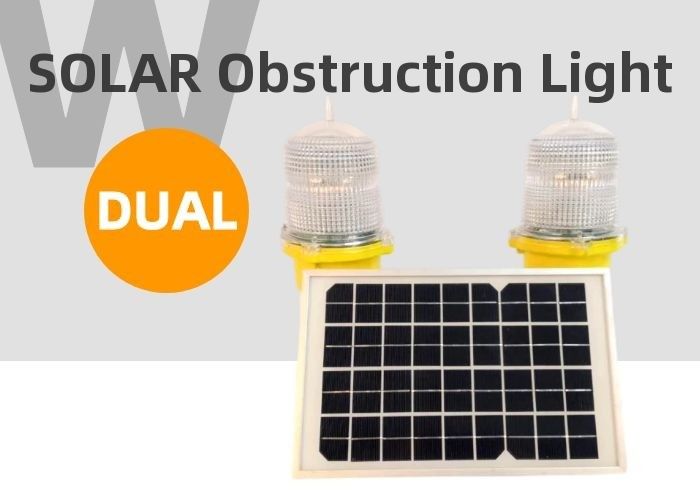

OL32D Building Obstruction Light Low Intensity Double Obstruction Light

OL32D Building Obstruction Light Low Intensity Double Obstruction Light

  • OL32D Building Obstruction Light Low Intensity Double Obstruction Light
OL32D Building Obstruction Light Low Intensity Double Obstruction Light
Product Details:
Place of Origin: SHAANXI, CHINA
Brand Name: WelandSignal
Certification: ROHS,CE
Model Number: OLS32-D
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD$199
Packaging Details: Each has one small carton and 6pcs in one big carton
Delivery Time: 3-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Light Source: Super Bright Medium Intensity LED Color: Red, Green, Yellow, Blue, White
Optional Function: Fault Alarm System Material: Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection
Working Mode: Service+Standby Or Service+Service Peak Intensity: 10cd/32cd/200cd
Waterproof: IP67 Mounting: 4pcs Bolts
Warranty: 3 Years OEM: Color, Flashing Frequency, Logo, Carton Design
Standard: ​ICAO Annex 14, 4th Edition, July 2004 ICAO Low Intensity, Type B FAA AC150/5345-43F, 2006 FAA, Type L810 Application: Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area
High Light:

Building Obstruction Light Low Intensity

,

Low Intensity double obstruction light

,

Low Intensity solar aircraft warning light

This OL32D Low Intensity double obstruction light is a stable burning low intensity LED obstruction light designed to meet ICAO LIOL Type A and B requirements. The model can be used to mark obstacles up to 45 meters above the ground that pose a hazard to aircraft at night, such as telecommunication towers, wind turbines, buildings and other tall structures.

OL32D Low Intensity double obstruction light provides an ultra-bright, energy-efficient and cost-effective lighting solution. Adjustable intensity settings allow users to easily switch between 10cd (Type A) and 32cd (Type B).

The double obstruction light is available in two configurations, Universal DC (12-48VDC) or Universal AC (110-240VAC).

Advanced optics use a single LED for lowest power consumption. Corrosion-resistant polycarbonate lenses are specifically designed for use with LEDs to maximize light intensity and uniformity. An integrated sensor in the light is able to detect when the ambient light threshold has dropped sufficiently and the light will automatically start running.

The luminaire contains internal diagnostic checks and alarm contacts for remote monitoring. The alarm relay is energized during normal operation and will release as long as the LED is not lit.

OL32D Low Intensity double obstruction lights can also be used to combine visual and infrared (IR) for pilots using night vision to see.



SPECIFICATIONS





OL32D Low Intensity Double Obstruction Light



Mechanical Specifications Electrical Specifications



Peak Intensity



10cd/32cd/200cd

Lens Material

Polycarbonate



Working Model



Steady on/ Flashing /on off controlled by a switch inside Storage Battery AGM,GEL,Lithium Battery option



Protect Level



IP67  Solar Panel mono-crystalline 18% efficiency



LED



Super-bright medium intensty Leds  Function Optional Synchronization



Temperature



-45℃~70℃ Mounting 4 bolts M6



Automatic Light Control (ALC)



Turn on at night and off at daytime automatically OEM Service

Color: Red, Green, Yellow, Blue, White

Flashing frequency



KEY FEATURES



ENERGY SAVING

  • The obstruction lights can operate with solar panels and batteries in order to offer low power consumption.
  • Will charge under nearly all weather conditions and up to 200 hours of operating capacity.
  • Over 60% cost saving, compared with using traditional types. No cables or electrical infrastructure required, and lab also saves by no need to take heavy to the top.



UP-TO-DATE MATERIALS AND TECHNOLOGY

  • We update main components every year with the rapid development of solar panel, batteries and LEDs.
  • We always keep ourselves up-to-date.



RELIABLE

  • Designed to meet FAA and ICAO obstruction standards
  • Regulation automatically turns on at dusk and off at dawn.



OL32D Building Obstruction Light Low Intensity Double Obstruction Light 0



Applications

  • Telecomm tower
  • Radio tower
  • Wind turbine
  • Somke stacks & chimney
  • Tall building
  • Power transmission line



STANDARS

High-rise building aviation obstacle light configuration scheme
The obstacle lights set up by high-rise buildings and building complexes should be able to see the outline of the object from all directions, and the horizontal direction can also refer to the barrier lights set at a distance of about 45 meters, and the general building should install obstacle lights at the top of it, and the installation height H is calculated from the horizontal ground. Reference Standards: CAAC, ICAO, FAA MH/T6012-2015, MH5001-2013

OL32D Building Obstruction Light Low Intensity Double Obstruction Light 1



  • When h ≤ 45m, a low light intensity dual aviation obstacle light or low light intensity aviation obstacle light shall be set at the top
  • When 45 < h < 105m, medium light intensity B-type aviation obstacle light shall be set at the top, and low light intensity aviation obstacle light shall be set at 1 / 2 of its height
  • When 105 ≤ h < 150m, medium light intensity type a aviation obstacle light shall be set at the top, and low light intensity aviation obstacle light shall be set at 1 / 2 of its height
  • High light intensity aviation obstruction lamps shall be set at the top of H ≥ 150m and at the interval of 75-105m, and medium light intensity aviation obstruction lamps shall be set between the layers of high light intensity aviation obstruction lamps
