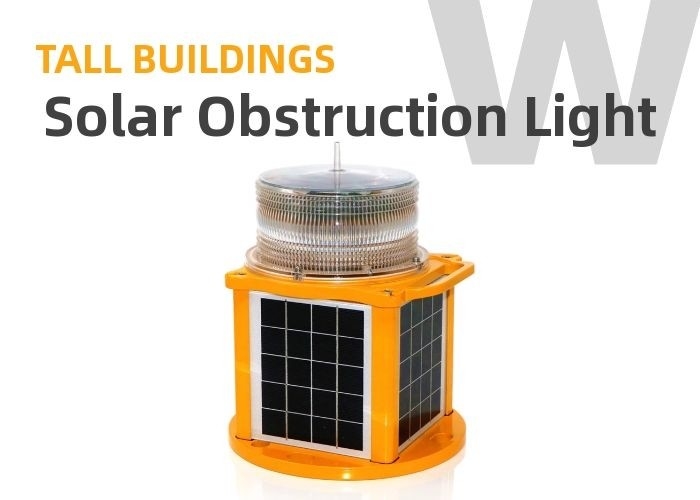

Mining Area LED Warning Light Anti UV Steady Red 6-7KM Visible

Mining Area LED Warning Light Anti UV Steady Red 6-7KM Visible

Mining Area LED Warning Light

LED Warning Light Anti UV

7KM Visible Solar Obstruction Light

Place of Origin:

SHAANXI, CHINA

Brand Name:

WelandSignal

Certification:

ROHS, CE

Model Number:

AFS400

Contact Us
Request A Quote
Product Details
Light Source:
Super Bright LED Made By OSRAM
Color:
Red, Green, Yellow, Blue, White
Material:
Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection
Working Mode:
Flashing, Steady On
Visibility:
6-7KM
Automatic Light Control (ALC):
Adjusts Output Intensity In Response To Unusually Low Amounts Of Sunlight To Ensure Continued Operation
Waterproof:
IP68
Solar Panel:
3W * 4pcs Mono
Battery:
Designed For 15 Year Battery Life; Replaceable And Recyclable
Mounting:
4pcs Bolts
Ingress:
EN 60529 IP 68 Immersion MIL-STD-202G Immersion & Damp Heat Cycling MIL-STD-810G Rain & Salt Fog
OEM:
Color, Flashing Frequency, Logo, Carton Design
Standard:
Complies With ICAO Low-Intensity Obstacle Light Type A & B - Annex 14, 5th Edition, July 2009 (Red) And 6th Edition, July 2013 (Red).
Application:
Crane Marking Light, Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area
Highlight:

Mining Area LED Warning Light

,

LED Warning Light Anti UV

,

7KM Visible Solar Obstruction Light

Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
USD$149-169
Packaging Details
Each has one small carton and 6pcs in one big carton
Delivery Time
3-7 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
20000pcs/month
Product Description

Steady Red Light Solar Led Mining Warning Light improves the efficiency of mining operations. By collecting full visibility of miners, and additional sensors built into Bluetooth beacons, we are able to collect ambient temperature, motion, and fall detection. These sensor alerts enhance detailed reporting on miner safety and security. Tracking can record when people come and go and accurately detect location and location in real time. BeaconTrax IoT hardware and software products are optimized for use in hazardous environments, capturing data wirelessly from Bluetooth beacons and gateways in the field.

SPECIFICATIONS



Steady Red Light Solar Led Mining Warning Light



Mechanical Specifications Electrical Specifications



Peak Intensity



10-800cd adjustable Structure

Solar Integrated Design

Bird deterrent conjoined with lens for not easy to break



Working Model



Flahing/Steady On Lens Material Polycarbonate



Protect Level



IP68 Solar Panel 3W * 4pcs mono



Energy Manage System (EMS)



Intelligent Microprocessor Storage Battery 12.8V4AH LiFePO4 battery



Temperature



-45℃~70℃ Function Optional Synchronization



Continuous Working Hours

250hours Mounting 4 bolts M6 for Mounting



Automatic Light Control (ALC)



Turn on at night and off at daytime automatically OEM Service Color: Red, Green, Yellow, Blue, White
Flashing frequency





Mining Area LED Warning Light Anti UV Steady Red 6-7KM Visible 0


Intuitive setup and programming
• Top mounted LED display with simple "click to activate" function.
• Easily check light settings without an external controller.
• Programmable via optional infrared remote control.
Scalable, cost-effective design
• Customizable for best performance value.
• Multiple battery pack options.
Smart Energy Management
• Best-in-class high-efficiency solar panels.
• Maximum Power Point Tracking (MPPT).
• Patented Energy Management System (EMS).
• Ensure maximum battery life and lighting performance, even in worst environment.
Durable, low maintenance
• Compact, self-contained, maintenance-free unit.
• Integrated solar panels, batteries, electronics and LED lights resource.
• Replaceable battery extends life to more than five years. trustworthy
• Thousands of installations worldwide.
• Our solar LED lights are permanent and Temporary installation.



GPS Synchronization

Mining Area LED Warning Light Anti UV Steady Red 6-7KM Visible 1

NOTE:

  • Year-round, unrestricted solar exposure is critical to long-term performance. Shade dramatically reduces the ability of the light to charge its battery.
  • Charge every 3 months when storing.


KEY FEATURES

  • No limitation on distance or objects between lights
  • No quality limitation
  • Internal GPS synchronization modules with no enteral components or wires required.
  • Each lantern operates independently
  • GPS receiver is housed with the lantern and no additional power suppliers, aerials or control systems are required.
  • Lanterns set to the same flash pattern will come into synchronization.




SIZE (mm)

Mining Area LED Warning Light Anti UV Steady Red 6-7KM Visible 2




APPLICATION

Mining Area LED Warning Light Anti UV Steady Red 6-7KM Visible 3
