| Place of Origin: | SHAANXI, CHINA |
| Brand Name: | WelandSignal |
| Certification: | ROHS, CE |
| Model Number: | AFS302P |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD$49~69 |
| Packaging Details: | Each has one small carton and 6pcs in one big carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000pcs/month |
| Light Source: | Super Bright LED | Color: | Red, Green, Yellow, Blue, White |
|---|---|---|---|
| Material: | Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection | Structure: | Bird Deterrent Needles Design |
| Working Mode: | Flashing, Steady On | Peak Intensity: | Less Than 55cd Adjustable |
| Waterproof: | IP68 100% Waterproof | Solar Panel: | 1.5W Mono Solar Panel |
| Battery: | 5000mAh Lithium Battery | Mounting: | 4pcs Bolts |
| Warranty: | 3 Years | OEM: | Color, Flashing Frequency, Logo, Carton Design |
| Standard: | FAA L810, ICAO Type A | Application: | Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area |
| High Light: | Bridge Marking LED Aviation Obstruction Light,L810 Aircraft Obstruction Lights,L810 LED Obstruction Light |
||

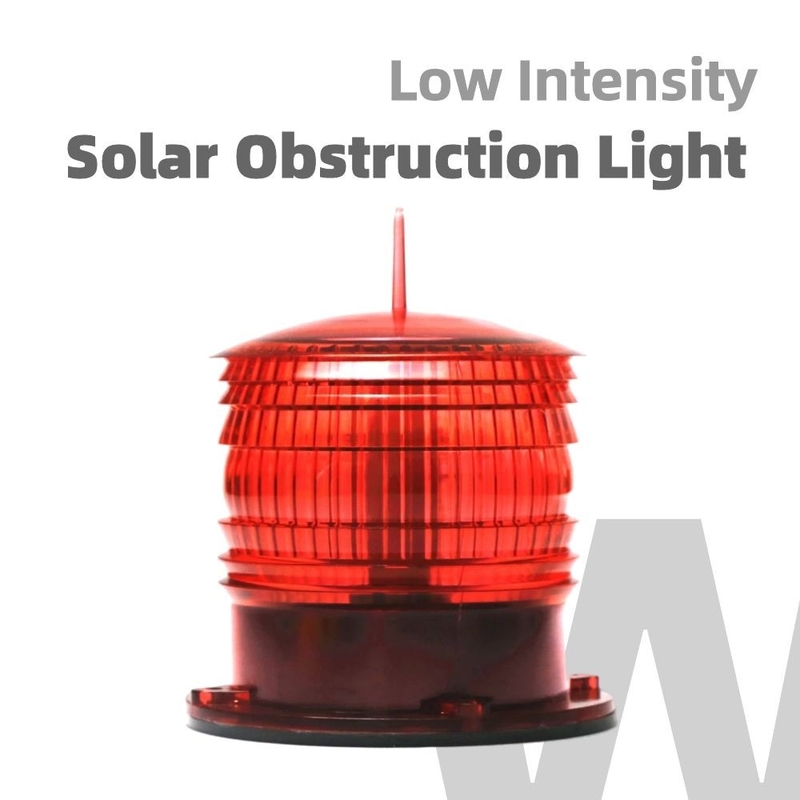

L810 Solar LED Aircraft Obstruction Lights for Bridge Marketing is an integrated lighting solution integrated in a structure that includes solar panels, lithium batteries and a high-efficiency LED light source. It was the first model of The WelandSignal for solar-powered aerial obstacle lighting. Thanks to its integrated type, it has become the most classic model and serves more than 80 counties. in more than 50,000 projects. The AFS302 is designed to meet the lighting standards of the FAA L-810, ICAO Low Intensity A/B Type (Red). It can be used as a low intensity obstacle light. Only 4 bolts are required for the Eastern Installation and can be maintenance-free or repair-free for up to five years. It complies with the requirements of the FAA ICAO.
SPECIFICATIONS
|
L 810 Solar LED Aircraft Obstruction Lights for Bridge Marketing
|
|||
| Mechanical Specifications | Mechanical Specifications | ||
|
Peak Intensity
|
Steady On : 32.5cd Flashing: 55cd |
Structure |
Solar Integrated Design Bird deterrent conjoined with lens for not easy to break |
|
Working Model
|
Flahing/Steady On | Lens Material | Polycarbonate |
|
Protect Level
|
IP68 | Solar Panel | 1.5 W mono |
|
Energy Manage System (EMS)
|
Intelligent Microprocessor | Storage Battery | 5000mAh Lithium battery |
|
Temperature
|
-45℃~70℃ | Function Optional | Synchronization |
|
Continuous Working Hours |
200hours | Mounting | 4 bolts M6 for Mounting |
|
Automatic Light Control (ALC)
|
Turn on at night and off at daytime automatically | OEM Service |
Color: Red, Green, Yellow, Blue, White Flashing frequency |
NOTE:
KEY FEATURES
ENERGY SAVING
UP-TO-DATE MATERIALS AND TECHNOLOGY
RELIABLE
SIZE (mm)
STANDARD
CATEGORIES: Low intensity obstruction light, FAA L810, ICAO type A, ICAO type A,Solar obstruction light, Tower obstruction light.Solar obstruction light, Tower obstruction light. Chimney obstacle warning light ,Bridge navigation light, Tall buildings obstacle light.
