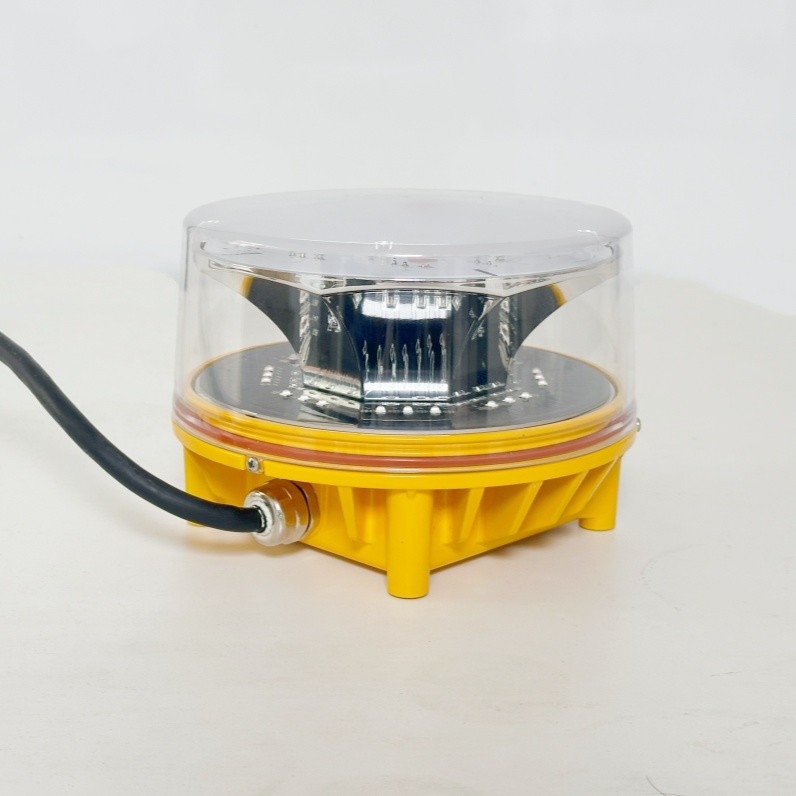

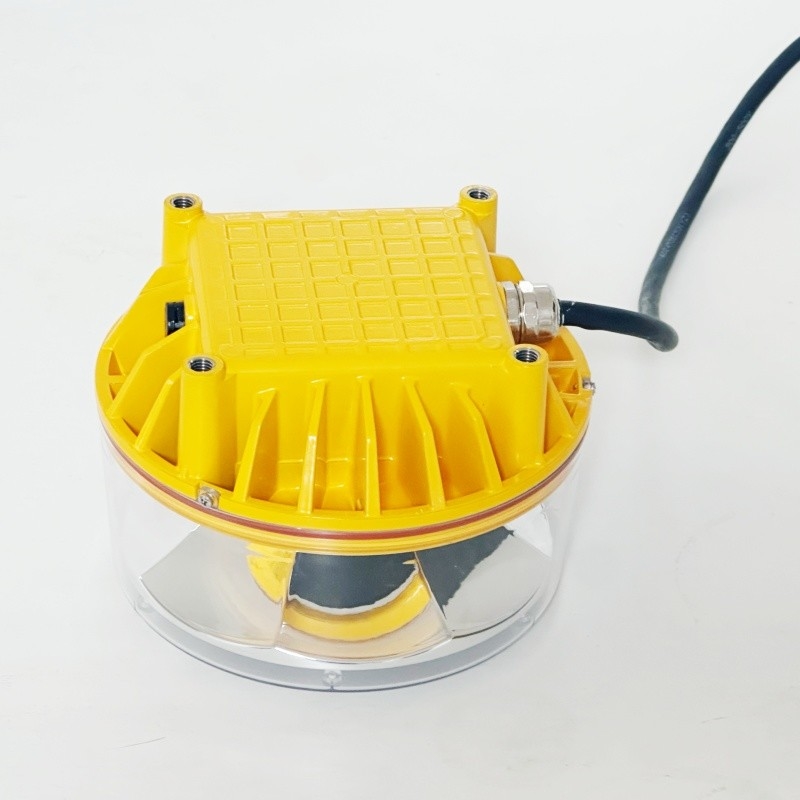

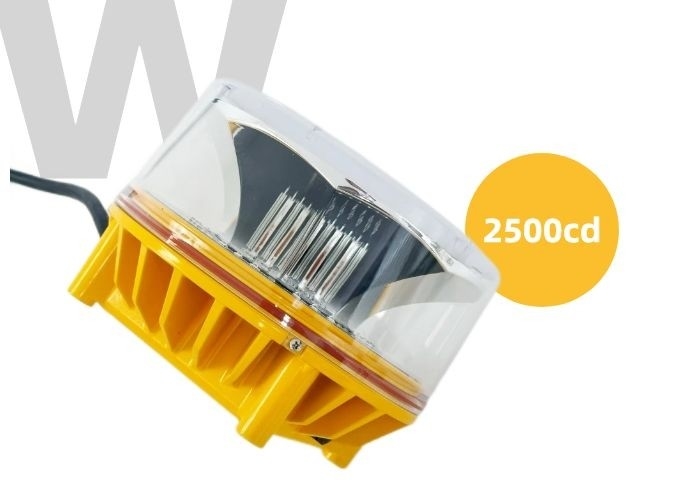

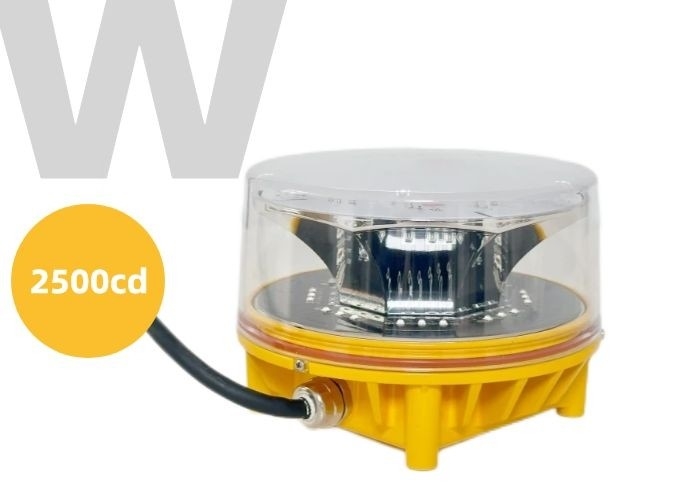

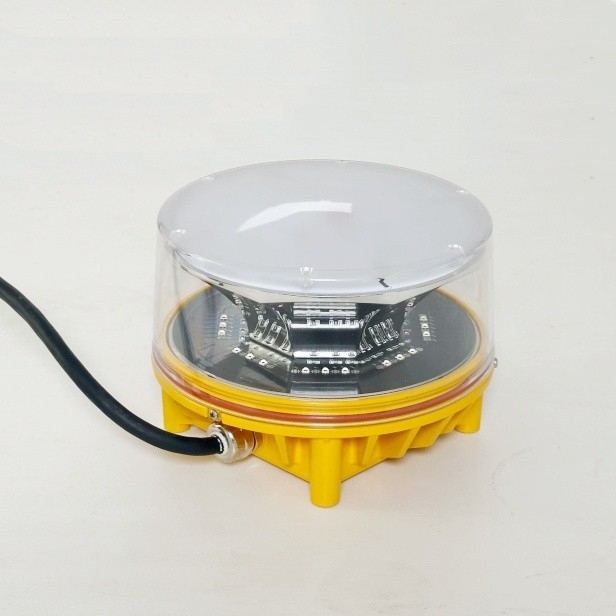

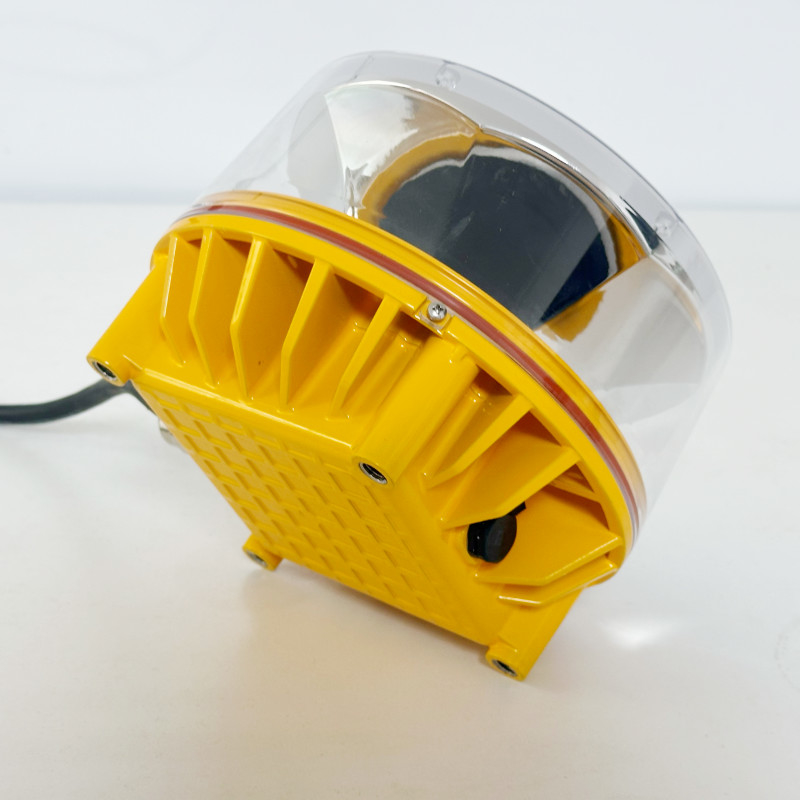

ICAO Compliant OM2K-B Medium Intensity Aviation Obstruction Light for Towers and Buildings

ICAO Compliant OM2K-B Medium Intensity Aviation Obstruction Light for Towers and Buildings

  • ICAO Compliant OM2K-B Medium Intensity Aviation Obstruction Light for Towers and Buildings
  • ICAO Compliant OM2K-B Medium Intensity Aviation Obstruction Light for Towers and Buildings
  • ICAO Compliant OM2K-B Medium Intensity Aviation Obstruction Light for Towers and Buildings
  • ICAO Compliant OM2K-B Medium Intensity Aviation Obstruction Light for Towers and Buildings
  • ICAO Compliant OM2K-B Medium Intensity Aviation Obstruction Light for Towers and Buildings
  • ICAO Compliant OM2K-B Medium Intensity Aviation Obstruction Light for Towers and Buildings
ICAO Compliant OM2K-B Medium Intensity Aviation Obstruction Light for Towers and Buildings
Product Details:
Place of Origin: SHAANXI, CHINA
Brand Name: WelandSignal
Certification: ROHS, CE
Model Number: OM2K-B
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD$200
Packaging Details: Each has one small carton and 6pcs in one big carton
Delivery Time: 3-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Light Source: Super Bright LED Color: Red, Green, Yellow, Blue, White
Material: Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection Working Mode: Flashing, Steady On
Peak Intensity: 2500cd Waterproof: IP68
Mounting: 4pcs Bolts Warranty: 5 Years
OEM: Color, Flashing Frequency, Logo, Carton Design Standard: FAA,ICAO
Application: Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area

OM2K-B Medium Intensity OB Light: The Next Level in Tower Safety
Introducing the OM2K-B, the latest medium intensity OB light designed to take your aviation safety to the next level. Building on the success of the OM2K, the OM2K-B takes advantage of the latest technology to give you better performance. It has a sleeker, more refined design that is easier to install and adds a touch of class to any structure.

SPECIFICATIONS





OM2K-B Medium Intensity Aviation Obstruction Light



Mechanical Specifications Electrical Specifications



Peak Intensity



2500cd Structure

Excellent heat dissipation





Working Model



Flahing/Steady On Lens Material Polycarbonate



Protect Level



IP68 Voltage 110-220VAC, 50/60 Hz;12VDC;24VDC;48VDC



Energy Manage System (EMS)



Intelligent Microprocessor Function Optional Synchronization



Temperature



-45℃~70℃ Installation M6*4pcs bolts



Automatic Light Control (ALC)



Turn on at night and off at daytime automatically Applications tower, chimney ,tall buildings, bridge aviation obstruction lighting area





Key Enhancements:

  • Improved LED Efficiency: The OM2K-B uses an optical flat lens with an internal reflector to increase the light output from the LED, making it brighter and more efficient.

High-Power OSRAM LEDs: The OM2K-B uses high-power OSRAM LEDs to give you long life and exceptional brightness for high-demand applications.

  • Better Thermal Management: The OM2K-B has a new heat dissipation design that provides stable, reliable performance even at maximum brightness, extending the life of the light.
  • Sleek, Compact Design: The OM2K-B is smaller and more stylish, giving you a tough light that looks great and works great

Features:

  • ICAO-Compliant Optical Design: Precision designed for compliance with ICAO standards to give you the best performance in aviation applications.
  • High-Quality Aluminum Head: Made from high-quality aluminum to provide excellent thermal efficiency, contributing to the long life of the LEDs.
  • Advanced Shock Resistance: Built to outlast traditional Xenon lights with better shock resistance and reliability.
    Low Maintenance: Designed for long life with minimal maintenance.
  • Safe Low-Voltage Operation: Low voltage for safety, the light is safe to use in many different applications.
  • Long-Term Cost Efficiency: This light is a cost-effective solution that gives you a great return on investment.
  • 5-Year Warranty: Backed by a 5-year warranty to give you peace of mind and long-term support.

Applications:

  • Telecommunication towers
  • Radio towers
  • Wind turbines
  • Smokestacks and chimneys

Standards:

  • ICAO Annex 14, 4th Edition, July 2004: Complies with international aviation safety regulations.
  • FAA AC No. 150/5345-43F, 2006: Meets U.S. Federal Aviation Administration guidelines for obstruction lighting.



Dimension(mm):

ICAO Compliant OM2K-B Medium Intensity Aviation Obstruction Light for Towers and Buildings 0
