Medium Intensity ICAO Type B Obstruction Light IP67 Solar Powered Aviation Light

Medium Intensity ICAO Type B Obstruction Light IP67 Solar Powered Aviation Light

  • Medium Intensity ICAO Type B Obstruction Light IP67 Solar Powered Aviation Light
Medium Intensity ICAO Type B Obstruction Light IP67 Solar Powered Aviation Light
Product Details:
Place of Origin: SHAANXI, CHINA
Brand Name: WelandSignal
Certification: ROHS,CE
Model Number: OM2BS
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD$166
Packaging Details: Each has one small carton and 6pcs in one big carton
Delivery Time: 3-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Light Source: Super Bright Medium Intensity LED Color: Red, Green, Yellow, Blue, White
Standard: ICAO Type A, FAA L810 Material: Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection
More Function: Synchronization,Fault Alarm System Peak Intensity: 800cd Medium Intensity
Waterproof: IP67 Solar Panel: Mono With High Efficency
Battery Optional: AGM, GEL , LIFEPO4 Battery Mounting: 4pcs Bolts
OEM: Color, Flashing Frequency, Logo, Carton Design Application: Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area
High Light:

Medium Intensity ICAO Type B Obstruction Light

,

IP67 Solar Powered Aviation Light

,

IP67 solar powered aircraft warning lights

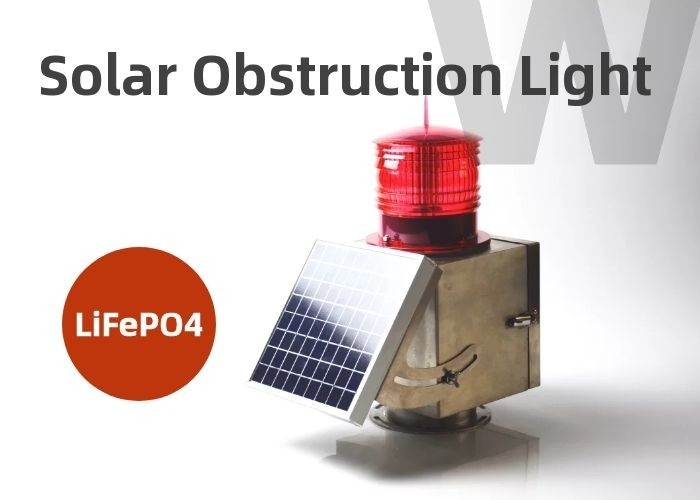

The Solar Powered Medium Intensity Type B Aviation Obstruction Lightautomatic control. This product can continuously operate for 15 days without any sunlight.

This product has a standardised design which includes an aviation light, a silicon solar panel and battery.

It complies with ICAO (Annex 14) and FAA. The enclosure of this light is made of die casting aluminium (LM6) and is powder coated. Its advantages are that it is lightweight, waterproof, shockproof and corrosion resistant.

The lamp has a built-in controller, a multipoint control unit (MCU), that allows the lamp to manage fault detecting, circuit-measuring, circuit-protecting, circuit-monitoring and solar system protecting.

The silicon solar panel has the advantages of a high conversion rate, small scale fading, good reliability and external longevity. The mounting bracket for the solar panel is made of stamping parts, which can withstand the harsh effects of the environment and can also withstand strong winds of up to 100KM/H. Its inclination angle is 15 – 60 degree.

The built-in battery is a LiFePO4 battery for ease of maintenance.

Medium Intensity ICAO Type B Obstruction Light IP67 Solar Powered Aviation Light 0



KEY FEATURES



ENERGY SAVING

  • The obstruction lights can operate with solar panels and batteries in order to offer low power consumption.
  • Will charge under nearly all weather conditions and up to 200 hours of operating capacity.
  • Over 60% cost saving, compared with using traditional types. No cables or electrical infrastructure required, and lab also saves by no need to take heavy to the top.



UP-TO-DATE MATERIALS AND TECHNOLOGY

  • We update main components every year with the rapid development of solar panel, batteries and LEDs.
  • We always keep ourselves up-to-date.



RELIABLE

  • Designed to meet FAA and ICAO obstruction standards
  • Regulation automatically turns on at dusk and off at dawn.



SPECIFICATIONS





Solar Powered Medium Intensity Type B Aviation Obstruction Light



Mechanical Specifications Electrical Specifications



Peak Intensity



2500cd

Lens Material

Polycarbonate



Working Model



Steady on/ Flashing /on off controlled by a switch inside Storage Battery AGM,GEL,Lithium Battery option



Protect Level



IP67  Solar Panel mono-crystalline 18% efficiency



LED



Super-bright medium intensty Leds  Function Optional Synchronization



Temperature



-45℃~70℃ Mounting 4 bolts M6



Automatic Light Control (ALC)



Turn on at night and off at daytime automatically OEM Service

Color: Red, Green, Yellow, Blue, White

Flashing frequency





PPLIACTIONS

Medium Intensity ICAO Type B Obstruction Light IP67 Solar Powered Aviation Light 1
