Low Intensity Twin Aviation Obstruction Light IP67 Waterproof

Product Details:

Place of Origin:	SHAANXI, CHINA
Brand Name:	WelandSignal
Certification:	ROHS,CE
Model Number:	OL10/32D

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD$149~169
Packaging Details:	Each has one small carton and 6pcs in one big carton
Delivery Time:	3-7 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	20000pcs/month

Contact Now

Detailed Product Description

Light Source:	Super Bright Medium Intensity LED	Color:	Red, Green, Yellow, Blue, White
Voltage:	110-220VAC,12VDC,4VDC,48VDC	Material:	Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection
Working Mode:	Flashing, Steady On	Peak Intensity:	2500cd
Waterproof:	IP67	Mounting:	4pcs Bolts
Warranty:	5 Years	OEM:	Color, Flashing Frequency, Logo, Carton Design
Standard:	Complies With ICAO Low-Intensity Obstacle Light Type A & B - Annex 14, 5th Edition, July 2009 (Red) And 6th Edition, July 2013 (Red).	Application:	Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area
High Light:	Low Intensity Twin Aviation Obstruction Light , IP67 Low Intensity Aviation Obstruction Light , Twin aviation obstruction lamp

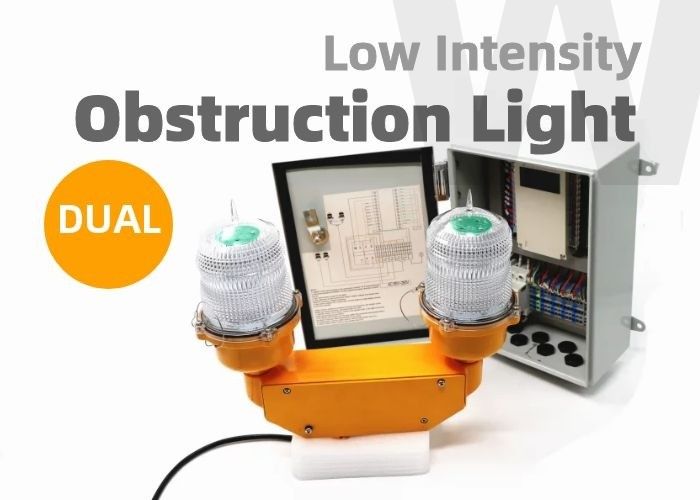

Low Intensity Twin Aircraft Warning Lights

The ICAO compliant type B WLTwin77 Dual aviation obstruction light is suitable for marking of high rise structures. These structures can be Steel Towers (such as Telecoms and GSM), Smokestacks, Buildings and any other potentially hazardous obstructions to air traffic with a steady burning red safety light

SPECIFICATIONS

Low Intensity Twin Aircraft Warning Lights
Mechanical Specifications		Electrical Specifications
Peak Intensity	200~400cd	Structure	Integrated Design
Working Model	Flahing/Steady On	Lens Material	Polycarbonate
Protect Level	IP67	Input Voltage	110-220VAC, 50/60 Hz;12VDC;24VDC;48VDC
LED	Super-bright medium intensty Leds	Function Optional	Synchronization
Temperature	-45℃~70℃	Mounting	4 bolts M6
Automatic Light Control (ALC)	Turn on at night and off at daytime automatically	OEM Service	Color: Red, Green, Yellow, Blue, White Flashing frequency

Low Intensity Twin Aviation Obstruction Light IP67 Waterproof 0

Low Intensity Twin Aviation Obstruction Light IP67 Waterproof 1

KEY FEATURES

Use of a Fresnel lens for even distribution of the light and ensures the light beam is in the scope as required.
Based on LED technology for low power consumption and high efficiency.
Lamp housing – Polycarbonate cover with good anti-impact strength, thermal stability and high transmittance.
Die casting aluminum base with yellow colour powder-coated paint finish (available in red also), provides corrosion resistance and durability.
G3/4”pipe available separately for ease of mount.
Self-contained compartment, with stainless steel wire which is used to secure the unit against falling during maintenance.
Built-in photocell can switch ON/OFF the light at dawn and dusk (optional).
Steady burning or flashing type (no need external controller).

SIZE (mm)

Low Intensity Twin Aviation Obstruction Light IP67 Waterproof 2

STANDARS

Low Intensity Twin Aviation Obstruction Light IP67 Waterproof 3
