| Place of Origin: | SHAANXI, CHINA |
| Brand Name: | WelandSignal |
| Certification: | ROHS,CE |
| Model Number: | OL32 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD$49-69 |
| Packaging Details: | Each has one small carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000pcs/month |
| Light Source: | Super Bright Medium Intensity LED | Color: | Red, Green, Yellow, Blue, White |
|---|---|---|---|
| Voltage: | 110-220VAC,12VDC,4VDC,48VDC | Material: | Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection |
| Working Mode: | Flashing, Steady On | Peak Intensity: | 10cd,32.5cd,300cd |
| Waterproof: | IP67 | Mounting: | 4pcs Bolts |
| Warranty: | 5 Years | OEM: | Color, Flashing Frequency, Logo, Carton Design |
| Standard: | FAA,ICAO | Application: | Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area |
| High Light: | IP67 Low Intensity Obstacle Lights,ICAO Obstacle Lights Aviation,Aviation Obstruction Light ICAO |
||

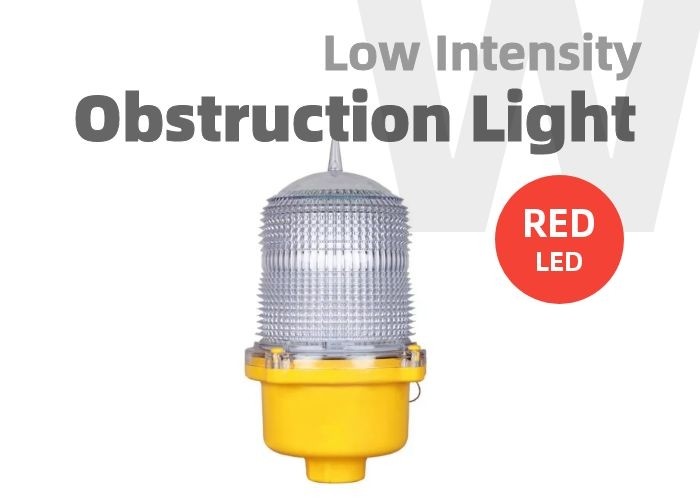

TheOL10 Low Intensity Obstacle Lights Aviation is designed to mark towers (telecom, GSM), cranes, hoists, chimneys, buildings and any other obstructions that are potentially dangerous to air traffic.
The housing of theOL10 Low Intensity Obstacle Lights Aviation is made of die-cast aluminium with a yellow powder coating. This has the advantage of being lightweight, waterproof, shockproof and corrosion resistant. Basic cable entry is provided for easy installation and maintenance. Connected to the base with a wire to prevent falls during operation and maintenance. The light source consists of external long-life LEDs to ensure maximum product life.
SPECIFICATIONS
|
OL10 Low Intensity Obstacle Lights Aviation
|
|||
| Mechanical Specifications | Electrical Specifications | ||
|
Peak Intensity
|
10cd,32.5cd,300cd |
Structure |
Integrated Design |
|
Working Model
|
Flahing/Steady On | Lens Material | Polycarbonate |
|
Protect Level
|
IP67 | Input Voltage | 110-220VAC, 50/60 Hz;12VDC;24VDC;48VDC |
|
LED
|
Super-bright medium intensty Leds | Function Optional | Synchronization |
|
Temperature
|
-45℃~70℃ | Mounting | 4 bolts M6 |
|
Automatic Light Control (ALC)
|
Turn on at night and off at daytime automatically | OEM Service |
Color: Red, Green, Yellow, Blue, White Flashing frequency |
KEY FEATURES
SIZE (mm)
Dual Lighting Model
OL10/32 110V/220V Low Intensity Dual LED Obstruction Light is designed to survive and perform in airway fixed obstacle marking applications with a waterproof, vibration proof and corrosion resistance casing. It comply with ICAO regulation, low intensity, type A/type B. Working mode is steady burning.
OL-D10/32 Series Double Light Double light is integrated by 2 single lights. For making sure there is always a light working at the top of the tower. Two optional working patterns can meet different area’s customers.
“Service+Standby”: Only “service light” is working normally. It will auto-transfer to “standby light” in case of ”service light” failure
“Service+Service”: Two single lights work simultaneously. Either failure will not affect the other normal working.
Installation
