IP67 Low Intensity Obstacle Lights

IP67 Low Intensity Obstacle Lights

  • IP67 Low Intensity Obstacle Lights
IP67 Low Intensity Obstacle Lights
Product Details:
Place of Origin: SHAANXI, CHINA
Brand Name: WelandSignal
Certification: ROHS,CE
Model Number: OL32
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD$49-69
Packaging Details: Each has one small carton
Delivery Time: 3-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Light Source: Super Bright Medium Intensity LED Color: Red, Green, Yellow, Blue, White
Voltage: 110-220VAC,12VDC,4VDC,48VDC Material: Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection
Working Mode: Flashing, Steady On Peak Intensity: 10cd,32.5cd,300cd
Waterproof: IP67 Mounting: 4pcs Bolts
Warranty: 5 Years OEM: Color, Flashing Frequency, Logo, Carton Design
Standard: FAA,ICAO Application: Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area
High Light:

IP67 Low Intensity Obstacle Lights


ICAO Obstacle Lights Aviation


Aviation Obstruction Light ICAO

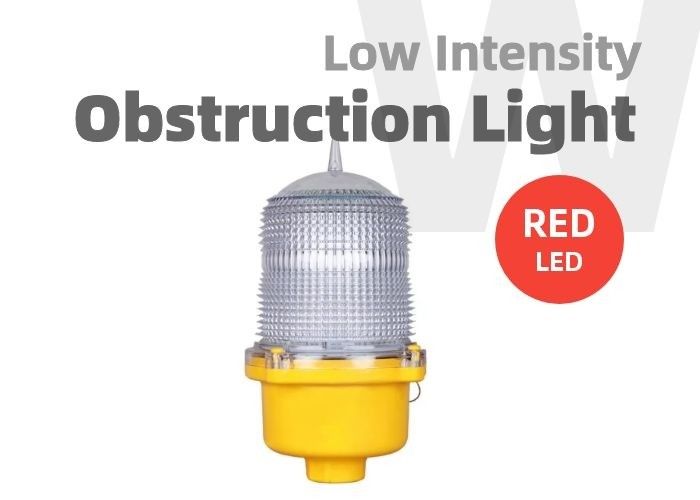

TheOL10 Low Intensity Obstacle Lights Aviation is designed to mark towers (telecom, GSM), cranes, hoists, chimneys, buildings and any other obstructions that are potentially dangerous to air traffic.

The housing of theOL10 Low Intensity Obstacle Lights Aviation is made of die-cast aluminium with a yellow powder coating. This has the advantage of being lightweight, waterproof, shockproof and corrosion resistant. Basic cable entry is provided for easy installation and maintenance. Connected to the base with a wire to prevent falls during operation and maintenance. The light source consists of external long-life LEDs to ensure maximum product life.





OL10 Low Intensity Obstacle Lights Aviation


Mechanical Specifications Electrical Specifications


Peak Intensity




Integrated Design


Working Model


Flahing/Steady On Lens Material Polycarbonate


Protect Level


IP67  Input Voltage 110-220VAC, 50/60 Hz;12VDC;24VDC;48VDC




Super-bright medium intensty Leds  Function Optional Synchronization




-45℃~70℃ Mounting 4 bolts M6


Automatic Light Control (ALC)


Turn on at night and off at daytime automatically OEM Service

Color: Red, Green, Yellow, Blue, White

Flashing frequency


IP67 Low Intensity Obstacle Lights 0




  • Use of a Fresnel lens for even distribution of the light and ensures the light beam is in the scope as required.
  • Based on LED technology for low power consumption and high efficiency.
  • Lamp housing – Polycarbonate cover with good anti-impact strength, thermal stability and high transmittance.
  • Die casting aluminum base with yellow colour powder-coated paint finish (available in red also), provides corrosion resistance and durability.
  • G3/4”pipe available separately for ease of mount.
  • Self-contained compartment, with stainless steel wire which is used to secure the unit against falling during maintenance.
  • Built-in photocell can switch ON/OFF the light at dawn and dusk (optional).
  • Steady burning or flashing type (no need external controller).

SIZE (mm)

IP67 Low Intensity Obstacle Lights 1

Dual Lighting Model

OL10/32 110V/220V Low Intensity Dual LED Obstruction Light is designed to survive and perform in airway fixed obstacle marking applications with a waterproof, vibration proof and corrosion resistance casing. It comply with ICAO regulation, low intensity, type A/type B. Working mode is steady burning.

OL-D10/32 Series Double Light Double light is integrated by 2 single lights. For making sure there is always a light working at the top of the tower. Two optional working patterns can meet different area’s customers.

“Service+Standby”: Only “service light” is working normally. It will auto-transfer to “standby light” in case of ”service light” failure
“Service+Service”: Two single lights work simultaneously. Either failure will not affect the other normal working.


IP67 Low Intensity Obstacle Lights 2

IP67 Low Intensity Obstacle Lights 3




IP67 Low Intensity Obstacle Lights 4
