Remote LED Obstruction Light Alarm Controller Electrostatic Polyester

Remote LED Obstruction Light Alarm Controller Electrostatic Polyester

LED Obstruction Light Alarm Controller

Obstruction Light Alarm Controller Electrostatic Polyester

Remote Obstruction Light Controller

Place of Origin:

SHAANXI, CHINA

Brand Name:

WelandSignal

Certification:

ROHS,CE

Model Number:

CL01

Contact Us
Request A Quote
Remote LED Obstruction Light Alarm Controller Electrostatic Polyester Remote LED Obstruction Light Alarm Controller Electrostatic Polyester Remote LED Obstruction Light Alarm Controller Electrostatic Polyester Remote LED Obstruction Light Alarm Controller Electrostatic Polyester
Product Details
Input Power Voltage:
100-240VAC(50/60HZ)
Output Operation Voltage:
48VDC
Surge Protector:
65KA/2.5KV
Protection Class:
IP65
Material (Two Options):
Cold-Rolled Steel Sheet, Ral-7035 Electrostatic Polyester
Operating Temperature:
-30C°-+60C°
Dimension:
400mm*300mm*150mm
Weight:
8kg
Application:
Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area
Standard:
FAA,ICAO
Highlight:

LED Obstruction Light Alarm Controller

,

Obstruction Light Alarm Controller Electrostatic Polyester

,

Remote Obstruction Light Controller

Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
USD$199
Packaging Details
Each has one small carton
Delivery Time
3-7 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
20000pcs/month
RELATED PRODUCTS
Good price ICAO Compliant OM2K-B Medium Intensity Aviation Obstruction Light For Towers And Buildings online

ICAO Compliant OM2K-B Medium Intensity Aviation Obstruction Light For Towers And Buildings

Get Best Price
Good price Solar Obstruction Light Mounting Brackets 304 316 Stainless Steel online

Solar Obstruction Light Mounting Brackets 304 316 Stainless Steel

Get Best Price
Good price Die Casting Aluminium Aviation Obstruction Light For Bridge Marking L864 Obstruction Light online

Die Casting Aluminium Aviation Obstruction Light For Bridge Marking L864 Obstruction Light

Get Best Price
Good price Medium Intensity FAA Obstruction Light Flash Red For Aircraft online

Medium Intensity FAA Obstruction Light Flash Red For Aircraft

Get Best Price
Contact Us
Contact Now
Product Description

Led Obstruction Light Alarm Controller works together with DC or AC led obstruction light for tall buildings, chimeny, tower and other obstacle areas. Its transfer Relay & Alarm Relay is designed to reliably monitor the proper operation of the latest low power LED obstruction lights and features a range of dry alarm contacts to report all aspects of system health,meet FAA and ICAO obstruction lighting requirements.



Features

  • Control up to three medium intensity beacons and 1 level of up to 4 units of low intensity single obstruction lights, also suitable for only single or double obstruction lighting system.
  • LED indicators in control board to indicate lights, power, photocell operation status
  • Alarm relay for each beacon
  • Alarm relay for each sidelight level
  • Alarm signal output, easy for connecting remote alarm monitoring device
  • Combined with welandsignal' photocell, which can turn on/off the system from dusk to dawn
  • Surge protedtor for input and output

Specifications

Remote LED Obstruction Light Alarm Controller Electrostatic Polyester 0



Remote LED Obstruction Light Alarm Controller Electrostatic Polyester 1

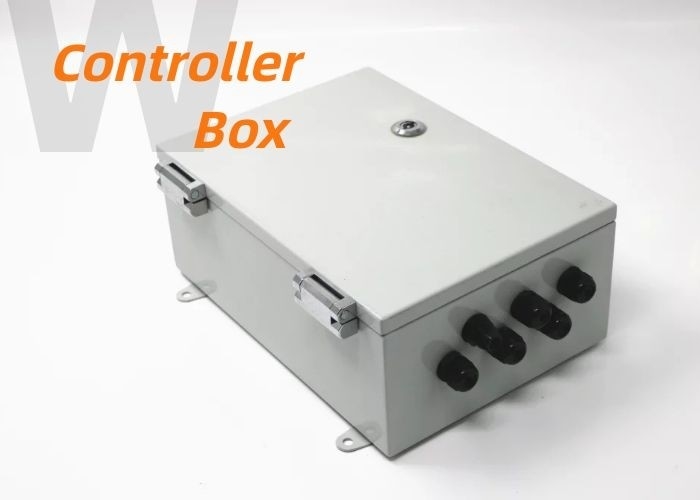

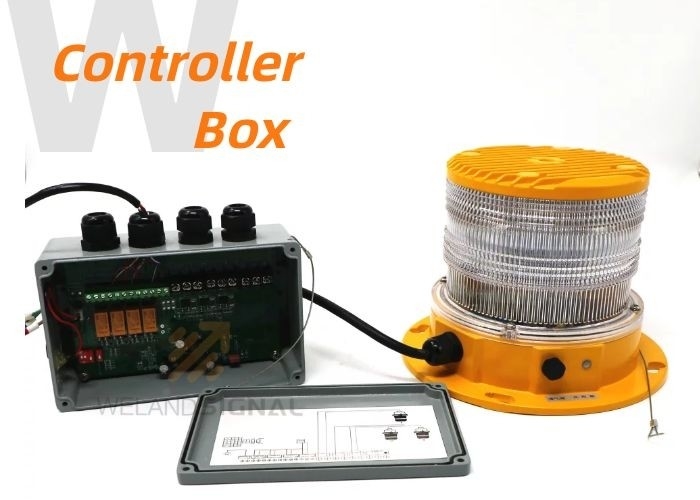

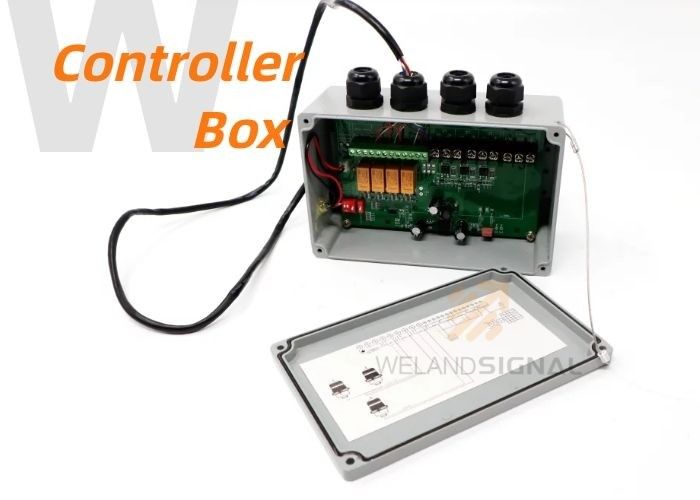

Detailed Images



Remote LED Obstruction Light Alarm Controller Electrostatic Polyester 2
