Double Flashing Red Beacon Light ICAO LED Polycarbonate

Product Details:

Place of Origin:	SHAANXI, CHINA
Brand Name:	WelandSignal
Certification:	ROHS,CE
Model Number:	OLS32-D

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD$199
Packaging Details:	Each has one small carton and 6pcs in one big carton
Delivery Time:	3-7 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	20000pcs/month

Contact Now

Detailed Product Description

Light Source:	Super Bright Medium Intensity LED	Color:	Red, Green, Yellow, Blue, White
Optional Function:	Fault Alarm System	Material:	Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection
Working Mode:	Service+Standby Or Service+Service	Peak Intensity:	10cd/32cd/200cd
Waterproof:	IP67	Mounting:	4pcs Bolts
Warranty:	3 Years	OEM:	Color, Flashing Frequency, Logo, Carton Design
Standard:	FAA,ICAO	Application:	Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area
High Light:	Double Flashing Red Beacon Light , ICAO LED Aviation Obstruction Light , ICAO LED Double Obstruction Light

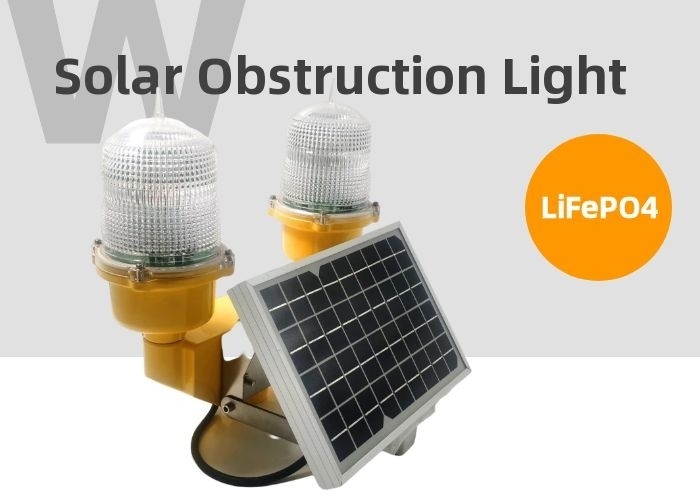

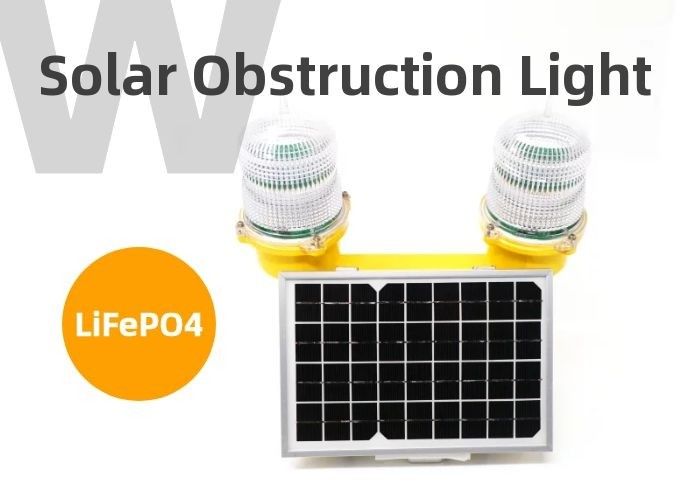

This ICAO Solar LED Double Flashing Red Beacon Light is a low intensity aviation obstruction light that is suitable for use in places that are without electricity. There is no need for maintenance or management and it offers automatic control. This product can continuously operate for seven days without any sunlight.

This ICAO Solar LED Double Flashing Red Beacon Lightuses an ICAO standardised design with the advantages of shockproof and corrosion resistance. It consists of an aviation light, duty & stand-by controller, silicon solar panel and battery.

This product complies with both ICAO (Annex 14) and FAA standards. The enclosure of this light is made of die casting aluminium (LM6) with a powder coated finish. Other advantages are that it is lightweight, waterproof, shockproof and corrosion resistant.

SPECIFICATIONS

ICAO Solar LED Double Flashing Red Beacon Light
Mechanical Specifications		Mechanical Specifications
Peak Intensity	10cd/32cd/200cd	Lens Material	Polycarbonate
Working Model	Steady on/ Flashing /on off controlled by a switch inside	Storage Battery	AGM,GEL,Lithium Battery option
Protect Level	IP67	Solar Panel	mono-crystalline 18% efficiency
LED	Super-bright medium intensity Leds	Function Optional	Synchronization
Temperature	-45℃~70℃	Mounting	4 bolts M6
Automatic Light Control (ALC)	Turn on at night and off at daytime automatically	OEM Service	Color: Red, Green, Yellow, Blue, White Flashing frequency

Double Flashing Red Beacon Light ICAO LED Polycarbonate 0

KEY FEATURES

ENERGY SAVING

The obstruction lights can operate with solar panels and batteries in order to offer low power consumption.
Will charge under nearly all weather conditions and up to 200 hours of operating capacity.
Over 60% cost saving, compared with using traditional types. No cables or electrical infrastructure required, and lab also saves by no need to take heavy to the top.

UP-TO-DATE MATERIALS AND TECHNOLOGY

We update main components every year with the rapid development of solar panel, batteries and LEDs.
We always keep ourselves up-to-date.

RELIABLE

Designed to meet FAA and ICAO obstruction standards
Regulation automatically turns on at dusk and off at dawn.

Applications

Telecomm tower
Radio tower
Wind turbine
Somke stacks & chimney
Tall building
Power transmission line

Standards

ICAO Annex 14, 4th Edition, July 2004
ICAO low intensity, type B
FAA AC150/5345-43F, 2006
FAA, type L810

Double Flashing Red Beacon Light ICAO LED Polycarbonate 1

STANDARD

Double Flashing Red Beacon Light ICAO LED Polycarbonate 2

CATEGORIES: Low intensity obstruction light, FAA L810, ICAO type A, ICAO type A,Solar obstruction light, Tower obstruction light.Solar obstruction light, Tower obstruction light. Chimney obstacle warning light ,Bridge navigation light, Tall buildings obstacle light.

Double Flashing Red Beacon Light ICAO LED Polycarbonate 3
