Place of Origin: | SHAANXI, CHINA |
Brand Name: | WelandSignal |
Certification: | ROHS, CE |
Model Number: | AFS1803 |
Minimum Order Quantity: | 1pc |
---|---|
Price: | USD$59~79 |
Packaging Details: | Each has one small carton and 6pcs in one big carton |
Delivery Time: | 3-7 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 20000pcs/month |
Light Source: | Super Bright LED | Color: | Red, Green, Yellow, Blue, White |
---|---|---|---|
Material: | Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection | Working Mode: | Flashing, Steady On |
Peak Intensity: | 10cd, 32.5cd, 55cd | Waterproof: | IP68 |
Solar Panel: | 2W Mono | Battery: | LifePO4 Lithium Battery |
Mounting: | 4pcs Bolts | Warranty: | 3 Years |
OEM: | Color, Flashing Frequency, Logo, Carton Design | Standard: | FAA,ICAO |
Application: | Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area | ||
High Light: | L810 LED Aviation Obstruction Light,LED Aviation Obstruction Light IP68,IP68 L810 LED Obstruction Light |
L 810 Led Obstruction Light For Bridge Marking And Warning, Per section 13.8 of FAA AC 70/7460-1L: a steady-burning red L-810 is required during construction if the permanent flashing L-864 is not in place. If power is not available, structures should be lit with a self-contained, solar-powered, steady burning red LED light meeting the photometric requirements of an FAA L-810.
Welandsignal is a customer-focused, ETL certified, FAA-approved obstacle lighting solutions distributor. Based in Xi'an,China, WelandSginal's mission is to revolutionize the obstacle lighting industry through innovation and simplicity. Our obstruction lighting products are used to mark structures that are federally required to be illuminated according to FAA standards, such as cellular towers, broadcast towers, industrial stacks and wind turbines.
SPECIFICATIONS

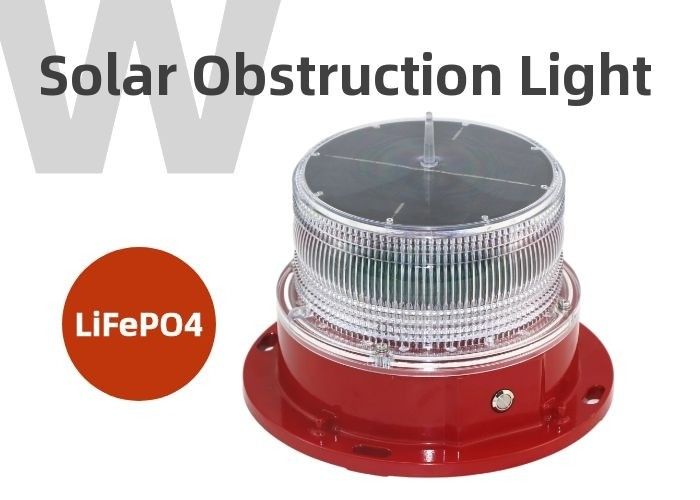

L 810 Led Obstruction Light For Bridge Marking And Warning
|
|||
Mechanical Specifications | Electrical Specifications | ||
Peak Intensity
|
Steady On : 32.5cd Flashing: 55cd |
Structure |
Solar Integrated Design Bird deterrent conjoined with lens for not easy to break |
Working Model
|
Flahing/Steady On | Lens Material | Polycarbonate |
Protect Level
|
IP68 | Solar Panel | 2W mono |
Energy Manage System (EMS)
|
Intelligent Microprocessor | Storage Battery | 3.7V8.8AH LiFePO4 battery |
Temperature
|
-45℃~70℃ | Function Optional | Synchronization |
Continuous Working Hours |
250hours | Mounting | 4 bolts M6 for Mounting |
Automatic Light Control (ALC)
|
Turn on at night and off at daytime automatically | OEM Service |
Color: Red, Green, Yellow, Blue, White Flashing frequency |
NOTE:
KEY FEATURES
ENERGY SAVING
UP-TO-DATE MATERIALS AND TECHNOLOGY
RELIABLE
SIZE (mm)
STANDARD
CATEGORIES: Low intensity obstruction light, FAA L810, ICAO type A, ICAO type A,Solar obstruction light, Tower obstruction light.Solar obstruction light, Tower obstruction light. Chimney obstacle warning light ,Bridge navigation light, Tall buildings obstacle light.
