Beidou AIS Monitoring System Marine Navigation Control Platform

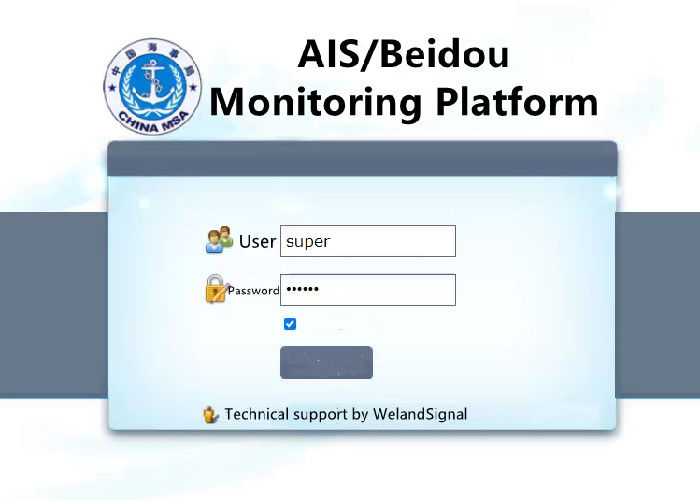

AIS Beidou Marine Navigation Monitoring Control Platform

AIS Beidou Marine Navigation Monitoring Control Platform is based on the electronic chart as a display platform, and integrates data transmission, data distribution, data storage, data filtering, data mining, electronic chart display and other technologies to achieve dynamic monitoring of ships, AIS Beacon telemetry and remote control, through this system to obtain dynamic information (position information, ROT, COG, etc.), static information (vessel name, MMSI, IMO, etc.) and navigation-related information (number of people, draft, etc.) It provides convenience for real-time monitoring of ships on the water and improves the work efficiency of management personnel.

Function introduction:

Ship status monitoring: support the display of dynamic and static information of ships, illegal records and alarms in prohibited areas, speed-limited areas, and fixed-line areas, key ship tracking, ship group display, ship visa supervision and other functions.

Security monitoring: Provide active security and passive security services. Active security service includes broadcasting security short messages, automatically to no-navigation areas, speed-limited areas, routing areas and data analysis: it has the function of intelligent filtering and information storage, can ensure the lossless compression and storage of information, and has the functions of tamper-proof and With the anti-deletion capability, the maritime department can use the stored information to reproduce the occurrence process of the event; it provides the statistical analysis function of ship navigation.

Short message communication: support the sending and receiving of Chinese and English short messages.

Base station equipment telemetry and remote control: support base station equipment running status monitoring, data link load monitoring, base station configuration management, fault alarm and other functions.

Electronic chart interface: The electronic chart management package fully supports IHOS-57/S-52/S-63 chart transmission, display, and encryption standards, supports incremental chart upgrades, Chinese/English switching, all/standard/basic Display mode switching, layer filter display, custom chart editing and saving, maritime target query, screen information saving, chart ranging and many other functions.

Products meet ITU-RM.1371-3/4/5 and supplementary protocols, IEC 61993-2, IEC 61162-1/2 Edition2, IALA Technical Guidelines on AIS, IEC60945, IALA A-126, IEC62320-1, IEC62320-2 , IEC62287 and other international standards.

Application areas: port management, fishery management, maritime traffic management, etc.
