AIS60 Red LED AIS Light Transponder Radar Marine LED Lanterns

AIS60 Red LED AIS Light Transponder Radar Marine LED Lanterns

  • AIS60 Red LED AIS Light Transponder Radar Marine LED Lanterns
AIS60 Red LED AIS Light Transponder Radar Marine LED Lanterns
Product Details:
Place of Origin: SHAANXI, CHINA
Brand Name: WelandSignal
Certification: ROHS,CE
Model Number: AIS60R
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD$1390-1590
Packaging Details: Each has one small carton and 6pcs in one big carton
Delivery Time: 3-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Light Source: Super Bright Medium Intensity LED Color: Red, Green, Yellow, Blue, White
Voltage: 12VDC,4VDC,48VDC Material: Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection
Working Mode: Flashing, Steady On Peak Intensity: 2500cd
Waterproof: IP67 Mounting: 4pcs Bolts
Warranty: 5 Years OEM: Color, Flashing Frequency, Logo, Carton Design
Standard: IALA Application: Buoy, Bridge, Light Tower, Boat Navigation Lighting
High Light:

AIS60 Red LED AIS Light

,

Transponder Radar AIS Light

,

Transponder Radar Marine LED Lanterns

Red LED Transponders and Radar Beacons AIS60 is a marine LED lanterns with integrated AIS, external marine AIS transponders and radar beacons.Our offering include marine lanterns with integrated AIS, radar beacons and external LightGuard AIS units, which are fully compliant AIS transponders suitable for different aids to navigation installations.

  • Low power consumption
  • High energy efficiency
  • High flexibility in its use
  • Ability to replace batteries
  • LEDs on a protected metal core PCB for maximum useful life
  • LEDs monitored for excess temperature
  • Flexible electronic configurations
  • Use on offshore platforms, port and harbor, aquaculture, fixed or floating structures
  • Multiple self-contained solar/battery configurations possible
  • Available in 4 colours. Colours meet IALA chromaticity requirements

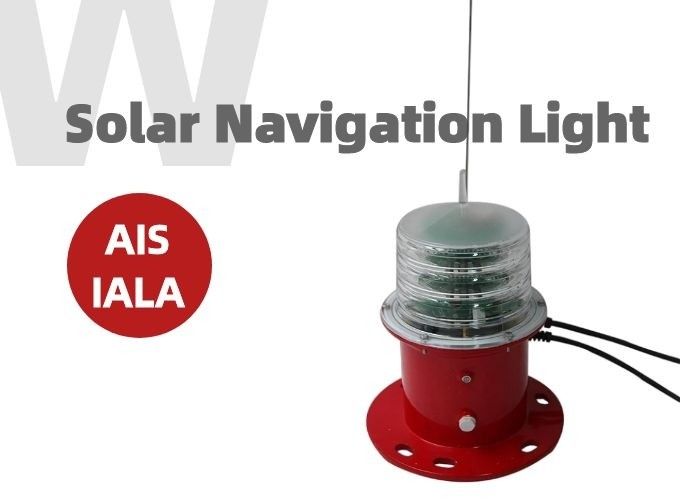

AIS60 Solar AIS Navigation Lantern





AIS60 Red LED AIS Light Transponder Radar Marine LED Lanterns 0

Mariner in the broadcasting region are provided with crucial Message 21 information (as defined by the International Telecommunication Union (ITU)) such as AtoN operational status and positioning.

In addition, the AIS enabled AtoN broadcasts AIS Message 6 received by the designated base station, allowing the operator to monitor the AtoN for solar and battery voltage, flash code setting and light status.

WelandSignalTM is able to support real, synthetic and virtual transmissions. GPS or Beidou are installed when AtoN installed in deep sea.



AIS60 Red LED AIS Light Transponder Radar Marine LED Lanterns 1

ADVANTAGES



  • Low power consumption, be compatible with range of WelandSignalTM ’ lanterns.
  • Power management system to ensure solar panel and battery’ life, and alarm for mistakes.
  • Complete AIS solutions displaying accurate positioning & operational information about the AtoN
  • Supports Message 21, 6
  • Capable to communicate with Class A/B
  • Accurate and real-time information
  • Support real, synthetic and virtual transmissions
  • AIS terminal without lantern is available if no visual navaid required

AIS60 Red LED AIS Light Transponder Radar Marine LED Lanterns 2

SIZE (mm)



AIS60 Red LED AIS Light Transponder Radar Marine LED Lanterns 3





RECENT PROJECTS

______________
Our unique.portable designs ensure navigation lanterns can withstand harsh conditions at sea. All components are housed in rugged, high grade enclosure to ensure long-term performance with no maintenance. Since 2010, WelandSignalTM has finished 32,000 installations over 80 countries.



AIS60 Red LED AIS Light Transponder Radar Marine LED Lanterns 4
