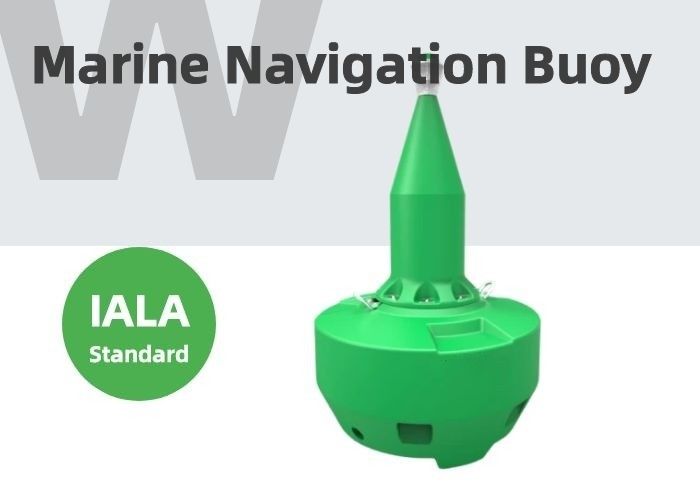

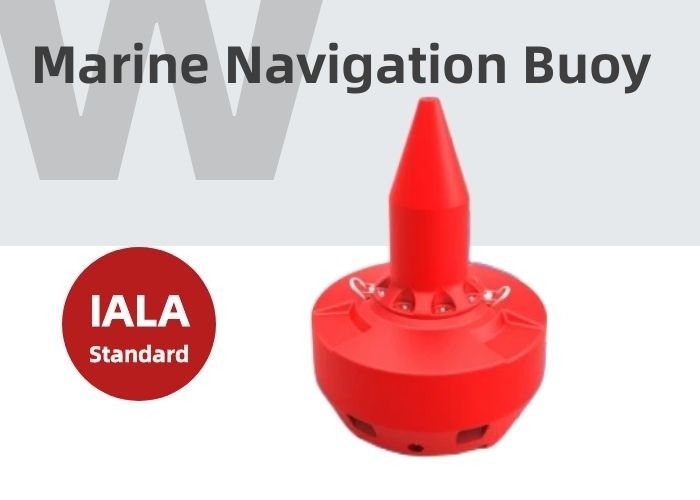

Marine Aids AIS Light To Navigation And Monitor Red Green Yellow Buoys

Marine Aids AIS Light To Navigation And Monitor Red Green Yellow Buoys

  • Marine Aids AIS Light To Navigation And Monitor Red Green Yellow Buoys
  • Marine Aids AIS Light To Navigation And Monitor Red Green Yellow Buoys
Marine Aids AIS Light To Navigation And Monitor Red Green Yellow Buoys
Product Details:
Place of Origin: Shaanxi
Brand Name: WelandSignal
Certification: CE,ROHS
Model Number: MB1200
Payment & Shipping Terms:
Minimum Order Quantity: 20pcs
Price: USD$2200
Packaging Details: Pallets
Delivery Time: 5-7 working days
Contact Now
Detailed Product Description
Body Material: LLDPE , Inside Filed With EPS Bleb Floatage: 900kg
Balance Weight: 150kg Diameter: 1200mm
Height (no Topmark): 1625mm Mast: 1025mm
Weight With Ballasts: 130kg Structure, Lifting And Mooring Points: S235 Galvanized Steel
Float And Mast: Linear Low Density Polyethylene Rotational Moulding Foam: EPS 16kg/m³
Colors: Pigments Matching IALA Specifications Directly Integrated Into The Polyethylene During Rotational Moulding For No Painting Ever Topmark: Port Hand Mark (Red Round Can) / Starboard Hand Mark (Green Pointed Cone )
Components: Anchor Chain,Hall Anchor,Saddle Chain Eco-friendly: Recyclable Polyethylene. Heavy Metal Free. No Ecological Damages
High Light:

Marine Aids AIS Light

,

Monitor Red Green Yellow Buoys

,

Marine Aids yellow navigation buoy

Marine Aids to Navigation and Monitor Buoys

The auxiliary devices to the navigation buoy are manual signs to guide navigation, positioning, marking obstacles and warning. This buoy is small, optimized performance and thanks to our latest technology: polyethylene shell, foam.2 lifting points and 1 galvanized steel mooring eye. Lift the handle, cast iron ballast.

Marine Aids AIS Light To Navigation And Monitor Red Green Yellow Buoys 0



FEATURES
·Single piece float
·Complete unit – ready for immediate installation
·High visibility red, green, white or yellow as per IALA recommendations
·316-grade stainless steel eye bolt for strong mooring chain attachment point
·Excellent buoyancy & stability
·Easy to deploy & service
·Lightweight
·No painting, ever
·Cost effective & environmentally friendly



COLORS

Marine Aids AIS Light To Navigation And Monitor Red Green Yellow Buoys 1



SIZE(mm)

Marine Aids AIS Light To Navigation And Monitor Red Green Yellow Buoys 2

                                                                 Type A                                                                       Type B







NAVIGATION LANTERN



 Marine Aids AIS Light To Navigation And Monitor Red Green Yellow Buoys 3  Marine Aids AIS Light To Navigation And Monitor Red Green Yellow Buoys 4





GPRS Monitoring Solar Led Buoy Navigation Lanterns

The WelandSignalTM’ GPRS Monitoring and Control System is a complete integrated module designed to allow convenient monitoring of the lantern statistics, battery condition and remote control over flashing code, intensity settings and other alarm options via WelandSignal’ monitoring and control platform.

The platform will provide details of each individual lantern operation and its GPS position via internet mapping system and includes historical graphed statistics of each lantern. In addition, various alarm conditions can also be activated such as tracking a drifting buoy vis GPS or Beidou that has moved outside a designated area, or alerting to a potential power disruption.

Each lantern is fitted with its own SIM card which provides a designated cell-phone contact number for each individual lantern. Any network operator can be used providing they have GSM coverage. And on WelandSignal’ monitoring and control platform, users have their own user-login and password. No quantity of lanterns are limited.





Available Data from Remote Lantern

  • Battery voltage
  • Solar module charging current
  • Lantern current draw
  • Lantern position – Latitude and Longitude
  • Day/night on status
  • Current operation mode
  • Current flash code setting​









Recent Projects

Our unique.portable designs ensure navigation lanterns can withstand harsh conditions at sea. All components are housed in rugged, high grade enclosure to ensure long-term performance with no maintenance. Since 2010, WelandSignalTM has finished 32,000 installations over 80 countries.



Marine Aids AIS Light To Navigation And Monitor Red Green Yellow Buoys 5
