| Place of Origin: | SHAANXI, CHINA |
| Brand Name: | WelandSignal |
| Certification: | ROHS,CE |
| Model Number: | BD02S4 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD$2888 |
| Packaging Details: | Each has one small carton and 6pcs in one big carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000pcs/month |
| Light Source: | Super Bright Medium Intensity LED | Color: | Red, Green, Yellow, Blue, White |
|---|---|---|---|
| Voltage: | 12VDC,4VDC,48VDC | Material: | Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection |
| Working Mode: | Flashing, Steady On | Peak Intensity: | 10-20nm |
| Waterproof: | IP67 | Mounting: | 4pcs Bolts |
| Warranty: | 5 Years | OEM: | Color, Flashing Frequency, Logo, Carton Design |
| Standard: | IALA, Beidou | Application: | Buoy, Bridge, Light Tower, Boat Navigation Lighting |
| High Light: | Solar Beidou integrated AIS Light,Marine Navigation AIS Light,Solar Beidou LED Marine Navigation Lights |
||

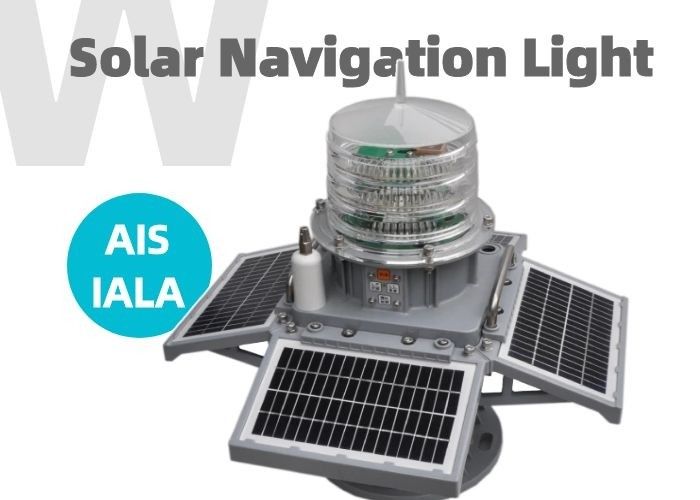

Solar Beidou integrated LED Navigation Lamp is a new type of LED lamp based on the Beidou generation short message communication technology innovatively developed by our company. It adopts GPS and Beidou dual-mode positioning, and has synchronous flashing function. It is a new type of navigation equipment combined with the current navigation security management system, which transmits the position, solar panels, batteries and lamp working parameters back to the center.
Solar Beidou integrated LED Navigation Lamps meet domestic and international standards such as three major sea area communication technology agreements, Beidou communication short message format, JT/T761-2009 "General Technical Conditions for Beacon Lights", IALA International Navigation Aid Association, IEC60945 and so on. It is widely used for light floats, light stakes, light boats, lighthouses, offshore platforms and other navigation facilities.
SPECIFICATIONS
| Classification | name | Parameter index |
| Features of the whole machine | Operating Voltage | DC: 9.5V—12.6V (Powered by ternary lithium battery, the battery can be repaired) |
| Solar panels | Inclined 4*5W, Vertical 4*7W | |
| recharging current | The typical value of charging current is 400Ma | |
| Operating temperature | -35℃—+60℃ | |
| parameter loading | RS232, button | |
| waterproof level | IP68 | |
| weight | 10.5kg | |
| Installation size | In line with domestic and international standards | |
| Continuous rainy weather working hours | ≥20 days | |
| AIS features | working frequency | 161.975MHz, 162.025MHz |
| Modulation | GMSK/FSK | |
| frequency error | ±0.5kHz | |
| transmit power | ≤6W | |
| Average power consumption | ≤0.05W | |
| message format | Messages No. 21 and No. 6, the two message periods are adjustable | |
| Operating mode | Mode three (SOTDMA, autonomous working mode) | |
| Beidou features | Communication module | Beidou generation communication module |
| positioning module | GPS, Beidou dual-mode positioning | |
| transmit power | 5W | |
| Lamp Features | glow color | red/green/yellow/white/blue |
| Number of lamp layers | 1st, 2nd, 3rd floor controllable | |
| light value | 256 adjustable | |
| brightness | 0-5 gears adjustable | |
| Daylight Threshold | Digital photosensitive, adjustable threshold | |
| Irradiation distance | 3—7.9nm | |
| launch angle | ≥7° | |
| battery characteristics | battery capacity | Typical value 692WH (57.7AH@12V, 62.4AH@11.1V) |
| battery voltage | Single nominal value DC: 2.6AH@3.7V |
Replaceable Accessories: High Gain Panel Antenna
