1200mm Marine Navigation Buoy Lateral Floating Beacon

1200mm Marine Navigation Buoy Lateral Floating Beacon

  • 1200mm Marine Navigation Buoy Lateral Floating Beacon
  • 1200mm Marine Navigation Buoy Lateral Floating Beacon
  • 1200mm Marine Navigation Buoy Lateral Floating Beacon
1200mm Marine Navigation Buoy Lateral Floating Beacon
Product Details:
Place of Origin: Shaanxi
Brand Name: WelandSignal
Certification: CE,ROHS
Model Number: MB1200
Payment & Shipping Terms:
Minimum Order Quantity: 20pcs
Price: USD$2200
Packaging Details: Pallets
Delivery Time: 5-7 working days
Contact Now
Detailed Product Description
Body Material: LLDPE , Inside Filed With EPS Bleb Floatage: 900kg
Balance Weight: 150kg Diameter: 1200mm
Height (no Topmark): 1625mm Mast: 1025mm
Weight With Ballasts: 130kg Structure, Lifting And Mooring Points: S235 Galvanized Steel
Float And Mast: Linear Low Density Polyethylene Rotational Moulding Foam: EPS 16kg/m³

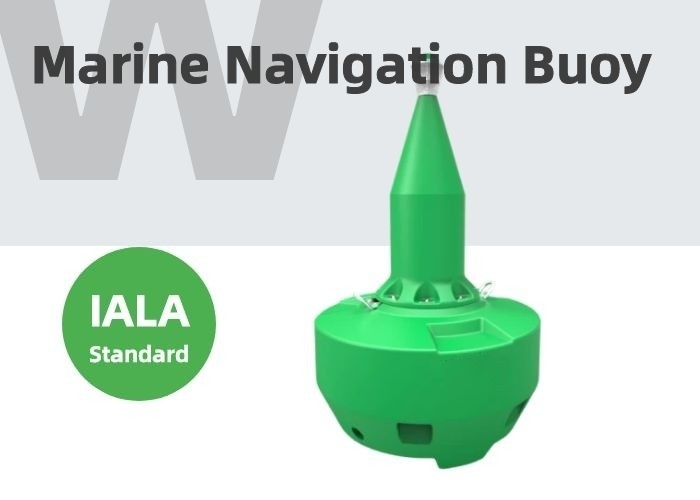

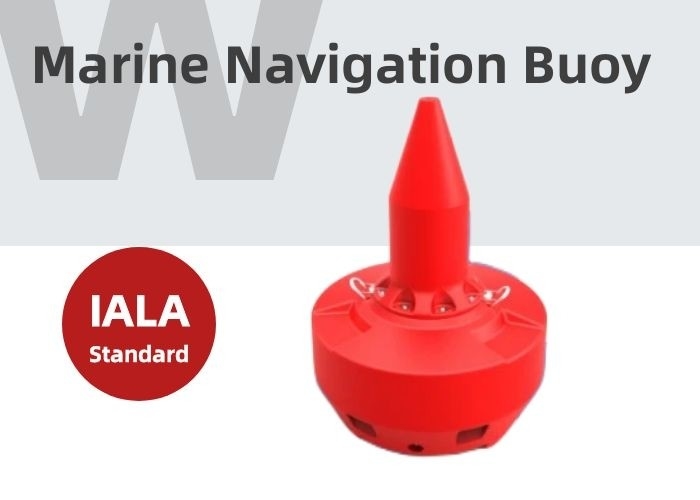

Colors: Pigments Matching IALA Specifications Directly Integrated Into The Polyethylene During Rotational Moulding For No Painting Ever Topmark: Port Hand Mark (Red Round Can) / Starboard Hand Mark (Green Pointed Cone )
Components: Anchor Chain,Hall Anchor,Saddle Chain Eco-friendly: Recyclable Polyethylene. Heavy Metal Free. No Ecological Damages
High Light:

1200mm Marine Navigation Buoy

,

Lateral Marine Navigation Buoy

,

1200mm Lateral Floating Beacon

 1200 Marine Navigation Buoy Lateral FloatingBeacon

The 1200 floating beacon optimizes performance in its small size and thanks to the WelandSignal's latest technology: polyethylene shell, foam, 2 lifting points and one galvanized steel mooring eye, lifting handles, cast iron ballast, and removable masts.

1200mm Marine Navigation Buoy Lateral Floating Beacon 0



FEATURES
·Single piece float
·Complete unit – ready for immediate installation

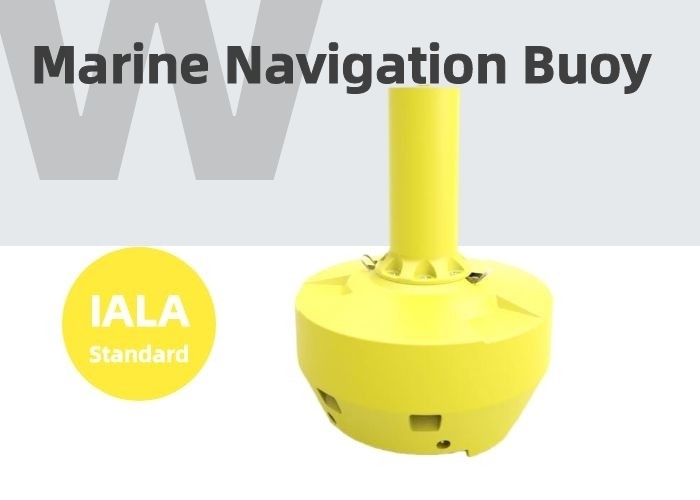

·High visibility red, green, white or yellow as per IALA recommendations
·316-grade stainless steel eye bolt for strong mooring chain attachment point
·Excellent buoyancy & stability
·Easy to deploy & service
·Lightweight
·No painting, ever
·Cost effective & environmentally friendly



COLORS

1200mm Marine Navigation Buoy Lateral Floating Beacon 1



SIZE(mm)

1200mm Marine Navigation Buoy Lateral Floating Beacon 2

                                                                 Type A                                                                       Type B



APPLICATION

1200mm Marine Navigation Buoy Lateral Floating Beacon 3



NAVIGATION LANTERN



 1200mm Marine Navigation Buoy Lateral Floating Beacon 4  1200mm Marine Navigation Buoy Lateral Floating Beacon 5
