Place of Origin:
SHAANXI, CHINA
Brand Name:
WelandSignal
Certification:
ROHS,CE
Model Number:
AIS02S4

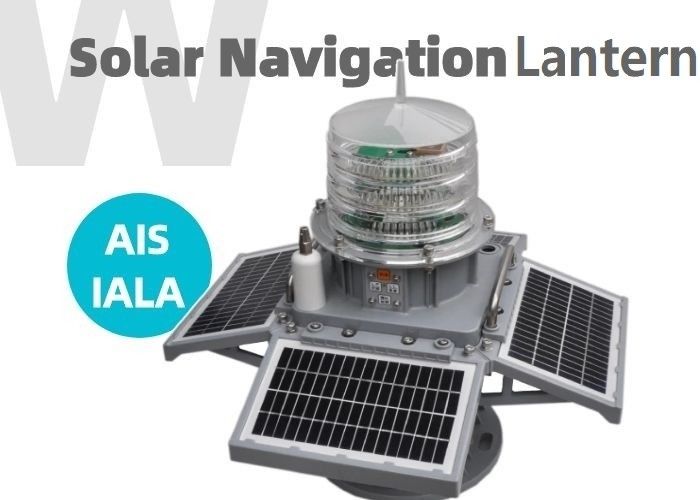

Solar AIS Self-Contained LED Marine Navigation Lantern is ideal for ports and harbours, aquaculture, fixed or floating structures with 20nm control distance.Medium intensity, weather-protected marine lantern with a high intensity LED light source paired with solar panel, battery array and AIS Aid to Navigation (AtoN) transceiver that can be combined with optional GPS synchronization, External IO port and/or battery charging port. Available in Yellow, Red, Green and White.
Product overview: This Solar AIS Self-Contained LED Marine Navigation Lantern is an LED light fixture developed by the company that combines AIS and Beidou. At the same time, it combines the power supply system of solar panels and lithium batteries, and organically combines AIS, Beidou, LED light fixtures and power supply systems. The product adopts Beidou and GPS dual-mode positioning module, uses AIS to provide navigational information for ships at close range, and uses Beidou to transmit the working parameters of position, solar panels, batteries and lamps back to the center. , Navigation aids.
Technical standards: The products meet the communication technology agreements of the three major sea areas, the products meet the Beidou communication short message format, ITU-R M.1371-3/4, JT/T761-2009 "General Technical Conditions for Beacons", IALA International Beacon Association, IEC61162-1/2, IEC61993-2, IEC60945, IEC62287, IEC62320-2 and other domestic and international standards.
Scope of application: light floats, light stakes, light boats, lighthouses, offshore platforms and other navigation facilities.
SPECIFICATIONS
| Classification | name | Parameter index |
| Features of the whole machine | Operating Voltage | DC: 9.5V—12.6V (Powered by ternary lithium battery, the battery can be repaired) |
| Solar panels | Inclined 4*5W, Vertical 4*7W | |
| recharging current | The typical value of charging current is 400Ma | |
| Operating temperature | -35℃—+60℃ | |
| parameter loading | RS232, button | |
| waterproof level | IP68 | |
| weight | 10.5kg | |
| Installation size | In line with domestic and international standards | |
| Continuous rainy weather working hours | ≥20 days | |
| AIS features | working frequency | 161.975MHz, 162.025MHz |
| Modulation | GMSK/FSK | |
| frequency error | ±0.5kHz | |
| transmit power | ≤6W | |
| Average power consumption | ≤0.05W | |
| message format | Messages No. 21 and No. 6, the two message periods are adjustable | |
| Operating mode | Mode three (SOTDMA, autonomous working mode) | |
| Beidou features | Communication module | Beidou generation communication module |
| positioning module | GPS, Beidou dual-mode positioning | |
| transmit power | 5W | |
| Lamp Features | glow color | red/green/yellow/white/blue |
| Number of lamp layers | 1st, 2nd, 3rd floor controllable | |
| light value | 256 adjustable | |
| brightness | 0-5 gears adjustable | |
| Daylight Threshold | Digital photosensitive, adjustable threshold | |
| Irradiation distance | 3—7.9nm | |
| launch angle | ≥7° | |
| battery characteristics | battery capacity | Typical value 692WH (57.7AH@12V, 62.4AH@11.1V) |
| battery voltage | Single nominal value DC: 2.6AH@3.7V |
