| Place of Origin: | SHAANXI, CHINA |
| Brand Name: | WelandSignal |
| Certification: | ROHS,CE |
| Model Number: | BS-001 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD$2888 |
| Packaging Details: | Each has one small carton and 6pcs in one big carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000pcs/month |
| Light Source: | Super Bright Medium Intensity LED | Color: | Red, Green, Yellow, Blue, White |
|---|---|---|---|
| Voltage: | 12VDC,4VDC,48VDC | Material: | Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection |
| Working Mode: | Flashing, Steady On | Peak Intensity: | 10-20nm |
| Waterproof: | IP67 | Mounting: | 4pcs Bolts |
| Warranty: | 5 Years | OEM: | Color, Flashing Frequency, Logo, Carton Design |
| Standard: | IALA, Beidou | Application: | Buoy, Bridge, Light Tower, Boat Navigation Lighting |
| High Light: | IP65 Waterproof Solar Charge Controller,AIS Solar Charge Controller,AIS solar panel controller |
||

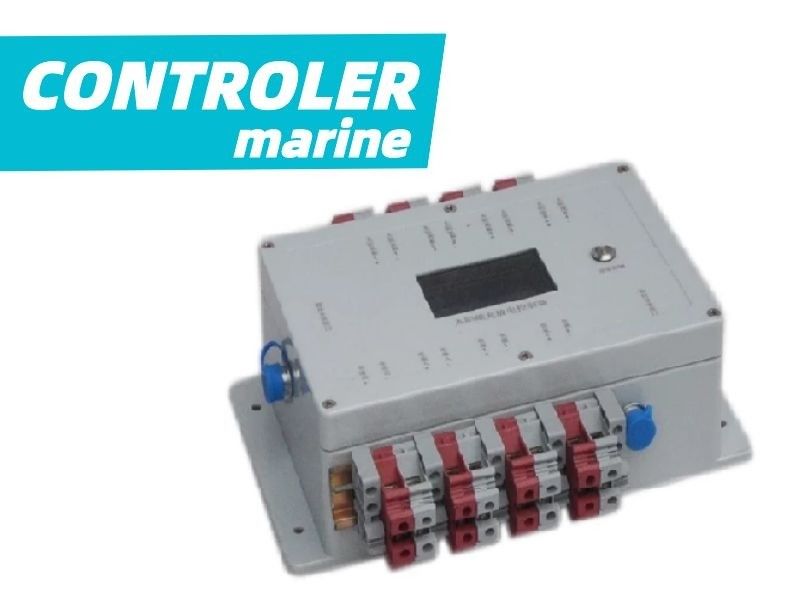

Solar Controller For AIS Marine Navigation System is a newly developed device with intelligent charge and discharge management. It has a data transmission interface. The controller organically combines solar panels, batteries and lamps to become a feature of the lamp pile, which is used to ensure equipment management for navigation. Provide strong support.
Solar Controller For AIS Marine Navigation System meet domestic and international standards such as the three major sea area communication technology agreements, IALA International Navigational Aids Association, IEC60945 and so on.It is used for light posts, light boats, lighthouses, offshore platforms and other navigation facilities.
Product features: intelligent charge and discharge management, compatible with lead-acid batteries and lithium batteries, support up to four independent inputs of solar panels, open circuit test solar panel and battery voltage to ensure test accuracy, DC12V and 24V intelligent compatibility, short circuit protection, reverse Connection protection, low power consumption design, using waterproof connector to pass the wire, the device has high reliability.
Technical indicators:
| main parameters | ||
| Classification | name | Parameter index |
| Features of the whole machine | Dimensions |
Single-channel controller: length 200mm × width 240 × height 90mm Multi-channel controller: length 275mm × width 245 × height 90mm |
| Operating temperature | -35℃—+60℃ | |
| weight | ≤2kg | |
| waterproof level | IP65 | |
| charging feature | Input voltage | Solar panel compatible with DC12V, 24V battery |
| solar panel input | Up to four independent inputs | |
| Single channel maximum charging current | ≤15.82A (over-current protection is activated after more than 15.82A) | |
| Multi-channel charging maximum current | ≤32.51A (over-current protection is activated after more than 32.51A) | |
| battery characteristics | Battery Type | Compatible with lead acid and lithium batteries |
| battery voltage | DC12V, 24V intelligent identification | |
| load characteristics | load output | Two-way output |
| load current | Single circuit ≤7.8A (short circuit protection is activated after more than 7.8A) | |
| interface features | Program upgrade port | RS232 |
| Data transmission interface | RS232 | |
| display features | display mode | "8" digital tube display |
| Solar panels | Single-channel charging voltage and current display | |
| Battery | Voltage and charge current display | |
| load | Load current display | |
| Alarm indication | Overcurrent and short circuit alarm indication | |
