Stainless Steel Beidou AIS Navigation Equipment IP68 Waterproof RS232

Stainless Steel Beidou AIS Navigation Equipment IP68 Waterproof RS232

  • Stainless Steel Beidou AIS Navigation Equipment IP68 Waterproof RS232
Stainless Steel Beidou AIS Navigation Equipment IP68 Waterproof RS232
Product Details:
Place of Origin: SHAANXI, CHINA
Brand Name: WelandSignal
Certification: ROHS,CE
Model Number: BD/AIS-01
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD$2888
Packaging Details: Each has one small carton and 6pcs in one big carton
Delivery Time: 3-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Light Source: Super Bright Medium Intensity LED Color: Red, Green, Yellow, Blue, White
Voltage: 12VDC,4VDC,48VDC Material: Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection
Working Mode: Flashing, Steady On Peak Intensity: 10-20nm
Waterproof: IP67 Mounting: 4pcs Bolts
Warranty: 5 Years OEM: Color, Flashing Frequency, Logo, Carton Design
Standard: IALA, Beidou Application: Buoy, Bridge, Light Tower, Boat Navigation Lighting
High Light:

Beidou AIS Navigation Equipment


AIS Navigation Equipment IP68 Waterproof


Waterproof RS232 AIS Terminal

Beidou and AIS Marine Navigation Equipment is based on Beidou's first-generation short message communication technology and AIS technology, and use Beidou and GPS dual-mode positioning modules to provide navigation assistance information to ships at close range. The working parameters of the lamp are sent back to the center, and it is a new type of navigation and navigation aids combined with the current navigation support management system.

This Beidou and AIS Marine Navigation Equipment meets the three major sea area communication technology protocols, the products meet the Beidou communication short message format, ITU-R M.1371-3/4, IALA International Navigational Aids Association, IEC61162-1/2, IEC61993-2, IEC60945, IEC62287 , IEC62320-2 and other domestic and international standards.

Scope of application: light floats, light stakes, light boats, lighthouses, offshore platforms and other navigation facilities.

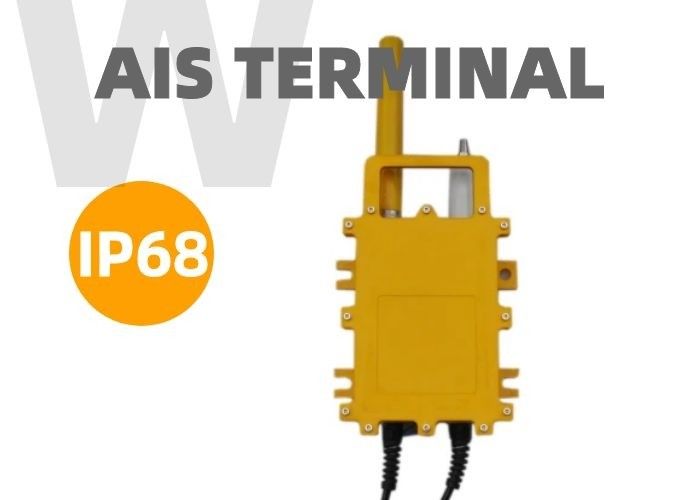

Stainless Steel Beidou AIS Navigation Equipment IP68 Waterproof RS232 0


Product features: integrated design for easy installation, intelligent charge and discharge management, compatible with lead-acid batteries and lithium batteries, open circuit test solar panel and battery voltage to ensure test accuracy, DC12V and 24V intelligent compatibility, short circuit protection, reverse connection protection, low Power consumption design, high-gain omnidirectional antenna, strong anti-swing communication ability, long communication distance, strong waterproof, anti-corrosion, anti-ultraviolet performance, and high equipment reliability.


Technical indicators


Classification name Parameter index
Features of the whole machine power supply range DC 8V—32V, DC12V and 24V intelligently compatible
Dimensions Height 650mm×width 175×thickness 60mm
waterproof level IP68
Operating temperature -35℃—+60℃
launch period The launch period is adjustable
recharging current ≤10A
load current ≤10A
weight ≤2.5kg
interface RS232
Appendix Stainless steel mounting structure
AIS features working frequency 161.975MHz, 162.025MHz
Modulation GMSK/FSK
frequency error ±0.5kHz
transmit power ≤6W
Receive sensitivity ≤-110dBm
power supply range DC12V and 24V smart compatible
Average power consumption Continuous working mode≤1W (low power consumption mode≤0.7W)
message format Messages No. 21 and No. 6, the two message periods are adjustable
Operating mode Mode three (SOTDMA, autonomous working mode)
Beidou features Communication module Beidou generation communication module
positioning module GPS, Beidou dual-mode positioning
transmit power 5W
Average power consumption Continuous working mode≤0.3W




Our unique.portable designs ensure navigation lanterns can withstand harsh conditions at sea. All components are housed in rugged, high grade enclosure to ensure long-term performance with no maintenance. Since 2010, WelandSignalTM has finished 32,000 installations over 80 countries.


Stainless Steel Beidou AIS Navigation Equipment IP68 Waterproof RS232 1
