Name: IP65 LED Aviation Obstruction Light Controller For Fault Alarm Monitoring
Brand: WelandSignal
SKU: CL01
Price: 199 USD
Availability: InStock
Rating: 4.6 (110 reviews)

Home > products > Double Obstruction Light >

IP65 LED Aviation Obstruction Light Controller For Fault Alarm Monitoring

LED Aviation Obstruction Light Controller

IP65 Obstruction Light Controller

LED Aviation Light Controller Box

Place of Origin:

SHAANXI, CHINA

Brand Name:

WelandSignal

Certification:

ROHS,CE

Model Number:

CL01

Request A Quote

IP65 LED Aviation Obstruction Light Controller For Fault Alarm Monitoring

Product Details

Input Power Voltage:

100-240VAC(50/60HZ)

Output Operation Voltage:

48VDC

Surge Protector:

65KA/2.5KV

Protection Class:

IP65

Material (Two Options):

Cold-Rolled Steel Sheet, Ral-7035 Electrostatic Polyester

Operating Temperature:

-30C°-+60C°

Dimension:

400mm*300mm*150mm

Weight:

8kg

Application:

Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area

Standard:

FAA,ICAO

Highlight:

LED Aviation Obstruction Light Controller

IP65 Obstruction Light Controller

LED Aviation Light Controller Box

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

USD$199

Packaging Details

Each has one small carton

Delivery Time

3-7 working days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

20000pcs/month

48VDC Obstruction Light Controller Cold Rolled Steel For Powering Monitoring Obstruction Lights

Get Best Price

Medium Intensity Double Obstruction Light GPS Synchronization IP67

Get Best Price

IP65 LED Aviation Obstruction Light Controller For Fault Alarm Monitoring

Get Best Price

Low Intensity Double Obstruction Light OL32 OL10 Shock Resistant

Get Best Price

Contact Now

Product Description

The LED Aviation Obstruction Light Controller is mainly applied to aviation obstruction light’s fault alarm monitoring, ON/OFF switch and control function including flash rate adjustable for tower(transmission, telecom,microwave etc.), chimney(power plant, coking plant, chemistry plant etc.), tall buildings, large bridges, large port machinery, large engineering machinery and wind turbine etc., it also could be used to control the street lamp.This control cabinet only for welandsignal' aviation obstruction light’s,not guarantee similar control functions for other non-match avation obstruction lights.

IP65 LED Aviation Obstruction Light Controller For Fault Alarm Monitoring 0

Features

Flash synchronously.
Fault alarm indicators on the panel and alarm signal output.
Alarm signal with dry contact passive output.
Auto-Manual switchable, if don’t need photocell automatically switch function, it could be switched to manual control.
Main& standby fault switch function :when the main light fails, will switches to the standby light automatically.
External photocell switch, photocell fault alarm function(optional).
Optional GPS synchronization function

Specifications

IP65 LED Aviation Obstruction Light Controller For Fault Alarm Monitoring 1

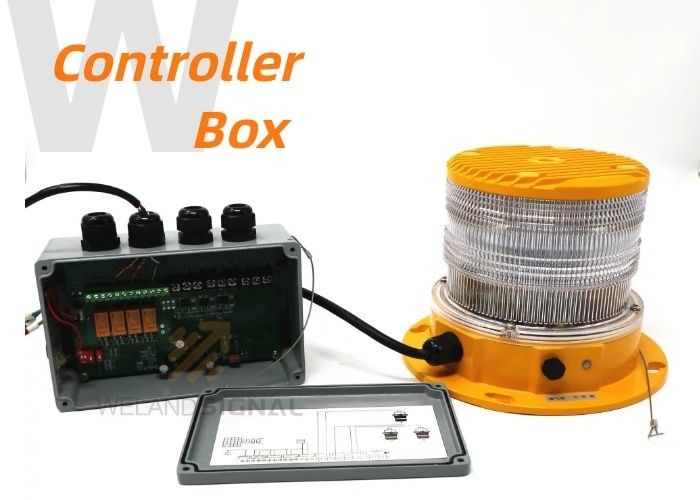

Detailed Images

IP65 LED Aviation Obstruction Light Controller For Fault Alarm Monitoring 2

Typical System Application

IP65 LED Aviation Obstruction Light Controller For Fault Alarm Monitoring 3
