| Place of Origin: | SHAANXI, CHINA |
| Brand Name: | WelandSignal |
| Certification: | ROHS,CE |
| Model Number: | OM2K-D |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD$229-239 |
| Packaging Details: | Each has one small carton and 6pcs in one big carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000pcs/month |
| Light Source: | Super Bright Medium Intensity LED | Color: | Red, Green, Yellow, Blue, White |
|---|---|---|---|
| Voltage: | 110-220VAC,12VDC,4VDC,48VDC | Material: | Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection |
| Working Mode: | Service+Standby Or Service+Service | Peak Intensity: | 2500cd |
| Waterproof: | IP67 | Mounting: | 4pcs Bolts |
| Warranty: | 5 Years | OEM: | Color, Flashing Frequency, Logo, Carton Design |
| Standard: | FAA,ICAO | Application: | Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area |
| High Light: | 220V Flashing Double Obstruction Light,Double Obstruction Light ICAO Type A,220V Flashing ICAO Obstruction Light |
||

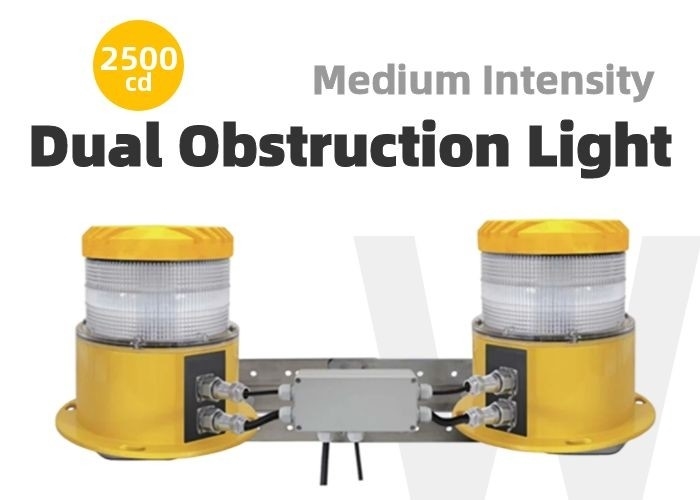

220V ICAO Type A/B Dual Medium Intensity LED Obstruction Light is a new generation medium intensity OB light. It comes with compact-size and light-weight, which makes installation job nice & easy.
The optical part is based on Fresnel lens, a transformed convex lens which can concentrate light to a small specific angel to meet with ICAO requirements. Fresnel lens is often used to design obstruction light.
The light’s ingress protection level is IP67, assures the light is well sealed to stand harsh environment include the ocean. If work with control box, more functions like synchronization could be realized. GPS or GPRS functions also available if needed.
The light comes with a plug type connection, which makes installation nice & easy. When the light has a built-in alarm relay, one more plug will be added to the base (alarm function needs 2 core shielded cable). A junction box that mounted on the double bracket has a PCB who can auto transfer to the standby light in case of failure of the service light, in “service+standby” mode.
SPECIFICATIONS
|
220V ICAO Type A/B Dual Medium Intensity LED Obstruction Light
|
|||
| Mechanical Specifications | Mechanical Specifications | ||
|
Peak Intensity
|
2500d | Structure | Integrated Design |
|
Working Model
|
Flahing/Steady On | Lens Material | Polycarbonate |
|
Protect Level
|
IP67 | Input Voltage | 110-220VAC, 50/60 Hz;12VDC;24VDC;48VDC |
|
LED
|
Super-bright medium intensty Leds | Function Optional | Synchronization |
|
Temperature
|
-45℃~70℃ | Mounting | 4 bolts M6 |
|
Automatic Light Control (ALC)
|
Turn on at night and off at daytime automatically | OEM Service |
Color: Red, Green, Yellow, Blue, White Flashing frequency |
For example,OM2KDA220ST means OM2K 2500cd dual obstruction lights with one service and the other standby, Voltage is AC220V.
KEY FEATURES
ENERGY SAVING
We update main components every year with the rapid development of solar panel, batteries and LEDs.
LEDs is supplied by OSRAM, patent design for medium intensity obstruction lighting.
We always keep ourselves up-to-date.
UP-TO-DATE MATERIALS AND TECHNOLOGY
The lens of 110V/220V Low Intensity Dual LED Obstruction Light is designed with wonderful heat dissipation, with much low luminance decrease for longer life span.
Regulation automatically turns on at dusk and off at dawn.
5 years warranty
SIZE (mm)
Bracket
