|Place of Origin:||SHAANXI, CHINA|
|Minimum Order Quantity:||1pc|
|Packaging Details:||Each has one small carton and 6pcs in one big carton|
|Delivery Time:||3-7 working days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Light Source:||Super Bright Medium Intensity LED||Color:||Red, Green, Yellow, Blue, White|
|Voltage:||110-220VAC,12VDC,4VDC,48VDC||Material:||Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection|
|Working Mode:||Flashing, Steady On||Peak Intensity:||10-32.5cd Adjustable|
|Waterproof:||IP67||Mounting:||4pcs Bolts Only|
|Warranty:||5 Years||OEM:||Color, Flashing Frequency, Logo, Carton Design|
|Standard:||FAA AC NO: 150/5345-43FAA ICAO Annex 14, 4th Edition, July 2004 ICAO Aerodromes Design Manual, Chapter 18||Application:||Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area|

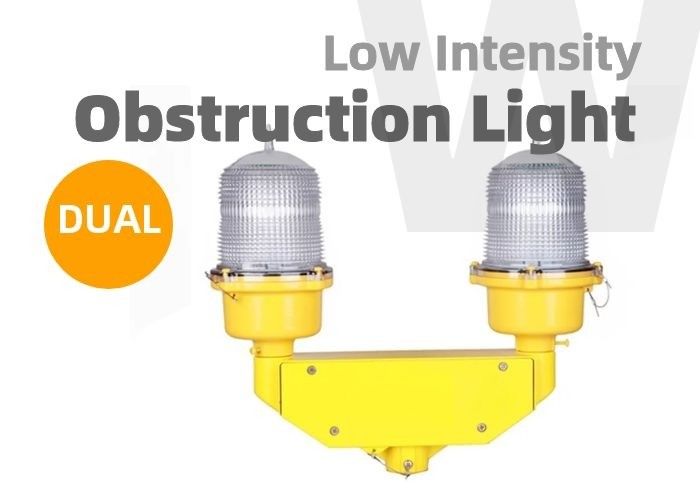

OL32 OL10 Double Obstruction Light,
Double Obstruction Light Low Intensity,
OL32 Dual LED Obstacle Lights
OL32/10 Low Intensity Dual LED Obstacle Lights Aviation Series L-810 RTO Infrared (IR) Obstruction Lights combine red and IR LEDs in a single unit to ensure military bases, airport perimeters, buildings, towers, and other obstructions for aircraft pilots, either during normal flight or during night vision with the help of the system.
OL32/10 Low Intensity Dual LED Obstacle Lights Aviation Night Vision Goggles (NVG) and Pilots Night Vision Imaging Systems (ANVIS) are typically ClassA, B and C filters. These filters reduce the light sources that LEDs emit in the visible spectrum. The Vigilant IR series overcomes this obstacle by combining a visible red LED and an IR LED in a single unit.
OL32/10 Low Intensity Dual LED Obstacle Lights Aviation feature unique optical, electrical and mechanical designs. RTOs are the most versatile, compact and efficient obstruction lights in the world. These products are ETL certified to meet FAA requirements. Also available as a single fixture for direct replacement of incandescent/lens technology.
OL32/10 Low Intensity Dual LED Obstacle Lights Aviation
|Mechanical Specifications||Electrical Specifications|
|Flahing/Steady On||Lens Material||Polycarbonate|
|IP67||Input Voltage||110-220VAC, 50/60 Hz;12VDC;24VDC;48VDC|
|Super-bright medium intensty Leds||Function Optional||Synchronization|
|-45℃~70℃||Mounting||4 bolts M6|
Automatic Light Control (ALC)
|Turn on at night and off at daytime automatically||OEM Service||Color: Red, Green, Yellow, Blue, White
We update main components every year with the rapid development of solar panel, batteries and LEDs.
LEDs is supplied by OSRAM, patent design for medium intensity obstruction lighting.
We always keep ourselves up-to-date.
UP-TO-DATE MATERIALS AND TECHNOLOGY
The lens of 110V/220V Low Intensity Dual LED Obstruction Light is designed with wonderful heat dissipation, with much low luminance decrease for longer life span.
Regulation automatically turns on at dusk and off at dawn.
5 years warranty
