| Place of Origin: | SHAANXI, CHINA |
| Brand Name: | WelandSignal |
| Certification: | ROHS,CE |
| Model Number: | OLS32-D |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD$299 |
| Packaging Details: | Each has one small carton and 6pcs in one big carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000pcs/month |
| Light Source: | Super Bright Medium Intensity LED | Automatic Light Control (ALC): | Turn On At Night And Off At Daytime Automatically |
|---|---|---|---|
| Standard: | ICAO Low Intensity Type B And FAA 810 | Material: | Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection |
| Working Mode: | Service+Standby Or Service+Service | Battery Optional: | AGM, GEL, LiFePO4 Battery |
| Waterproof: | IP67 | Mounting: | 4pcs Bolts |
| Solar Panel: | Mono With High Efficency | OEM: | Color, Flashing Frequency, Logo, Carton Design |
| Synchronization: | GPS Synchronization | Application: | Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area |
| High Light: | Medium Intensity Double Obstruction Light,Double Obstruction Light GPS Synchronization,IP67 Waterproof LED Solar Obstruction Light |
||

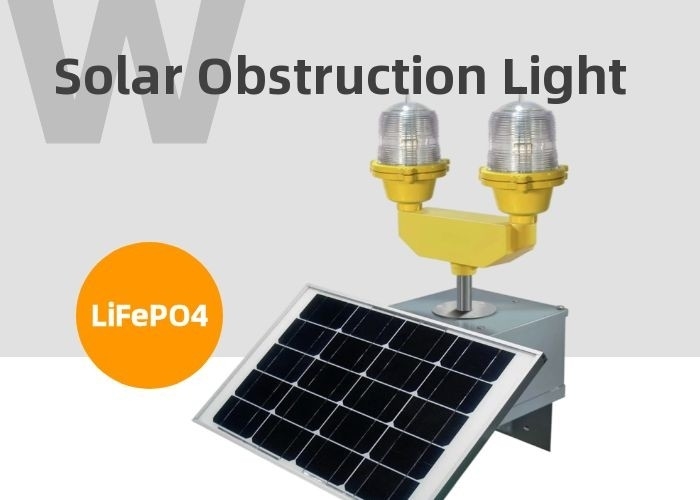

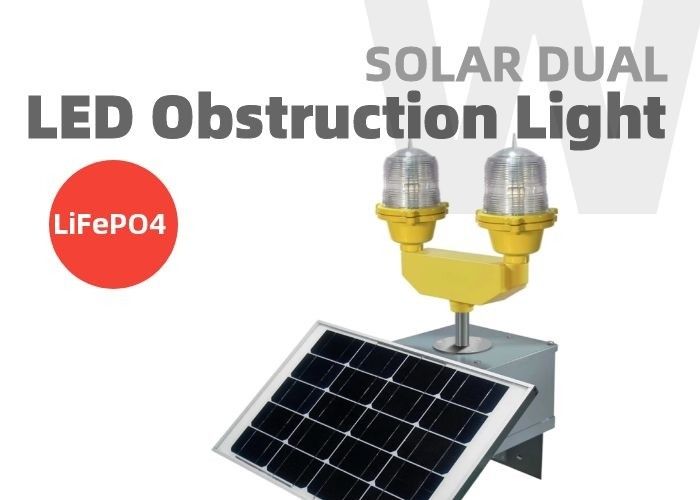

Dual Medium Intensity LED Solar Obstruction Light compliants with ICAO low intensity type B and FAA 810, is designed with hree parts: lamp, battery box and solar panel. When the lights and solar panels are attached to the battery box, the entire system can be mounted on the tower. Vertical and horizontal installations are available.Equipped with a 26Ah VRLA rechargeable battery or gel battery or lithium battery, it can power the light for up to 7 days in rainy weather. 26Ah VRLA batteries are easy to find almost anywhere. It is the traditional but widely used type. With the rapid development of battery, the size is smaller and smaller by using lithium battery but with the same or even larger capacity. Recently AGM GEL and lithium battery are the optional type according to customer requirements.
OLD32-D series solar double lamps are integrated by 2 single lamps. Make sure there is always a light working at the top of the tower. Two optional working modes can satisfy customers in different regions.
"Service+Standby": Only the "Service light" works normally. If the "service light" fails, it automatically switches to the "standby light".
"Service + Service": Two single lights work at the same time. Any failure will not affect other normal work.
KEY FEATURES
ENERGY SAVING
UP-TO-DATE MATERIALS AND TECHNOLOGY
RELIABLE
SPECIFICATIONS
|
Dual Medium Intensity LED Solar Obstruction Light
|
|||
| Mechanical Specifications | Mechanical Specifications | ||
|
Peak Intensity
|
10cd/32cd/200cd |
Lens Material |
Polycarbonate |
|
Working Model
|
Steady on/ Flashing /on off controlled by a switch inside | Storage Battery | AGM,GEL,Lithium Battery option |
|
Protect Level
|
IP67 | Solar Panel | mono-crystalline 18% efficiency |
|
LED
|
Super-bright medium intensty Leds | Function Optional | Synchronization |
|
Temperature
|
-45℃~70℃ | Mounting | 4 bolts M6 |
|
Automatic Light Control (ALC)
|
Turn on at night and off at daytime automatically | OEM Service |
Color: Red, Green, Yellow, Blue, White Flashing frequency |
SIZE (mm)
Bracket
Applications
Standards
