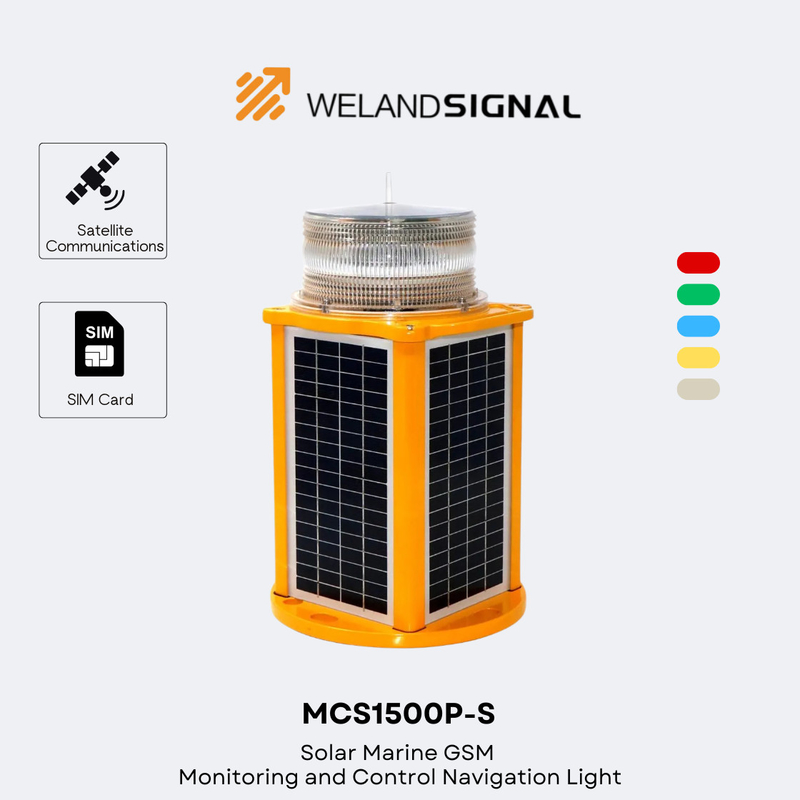

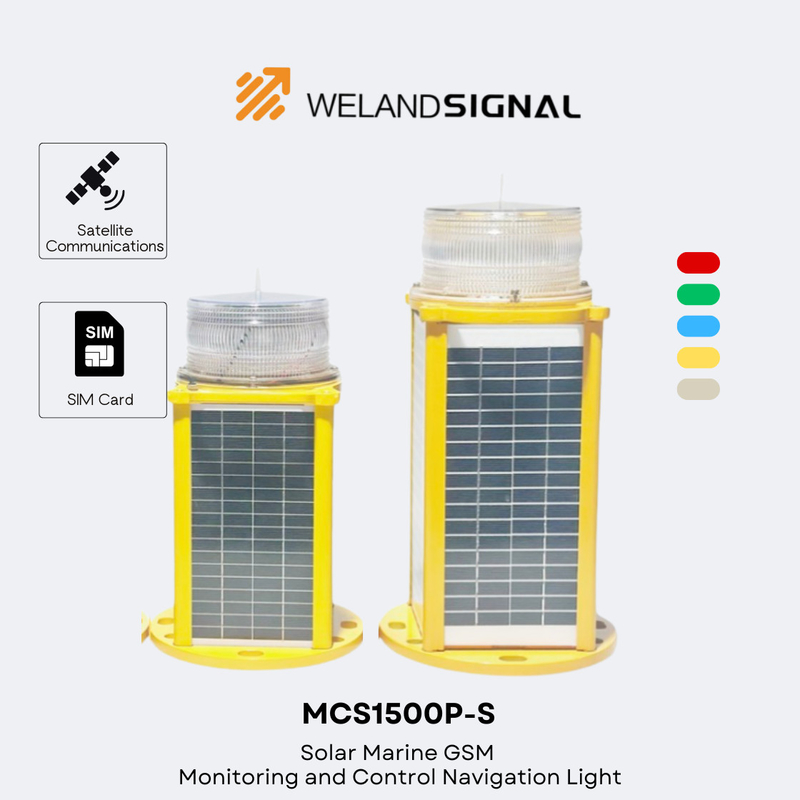

Solar-Powered Marine GSM Monitoring and Control Light
The MCS1500P-S Solar Integrated Remote-Controlled and Telemetry Light is a newly developed LED navigation light designed and manufactured by our company. It features dual-mode positioning with BeiDou and GPS, utilizing the first-generation BeiDou short message system for telemetry data transmission. The light is equipped with synchronous flashing capabilities and allows for parameter configuration via a mobile app or PC interface.
This device integrates a navigation light, a BeiDou communication module, a solar panel, and a lithium battery, incorporating intelligent charge and discharge management. It is designed for installation on buoys, beacons, light vessels, lighthouses, offshore platforms, and other aids to navigation, forming part of modern navigation systems.The device meets the GPS and BeiDou communication requirements, with a positioning accuracy of within 15 meters. It is in compliance with the following regulations:
- "Marine Aids to Navigation – Light Signal Colors"
- "General Technical Conditions for Aids to Navigation Lights" (JT/T761-2009)
- IALA Recommendation E-108 (2008) on Surface Colors Used as Visual Signals for Aids to Navigation
The Solar-Powered Marine GSM Monitoring and Control Light is available in five colors: red, green, yellow, white, and blue.
The nominal range exceeds 3 nautical miles, depending on the model selected. The MCS1500P-S model has a range of 5-6 nautical miles, and its light characteristics comply with GB4696, GB5863, and IALA-recommended 256 light characteristics (please refer to the user manual for light characteristic codes). These can be adjusted via a mobile app or PC, with a flashing period error within ±2%. The flashing cycles adhere to the GB4696-1999 standard for Aids to Navigation in Chinese Waters.

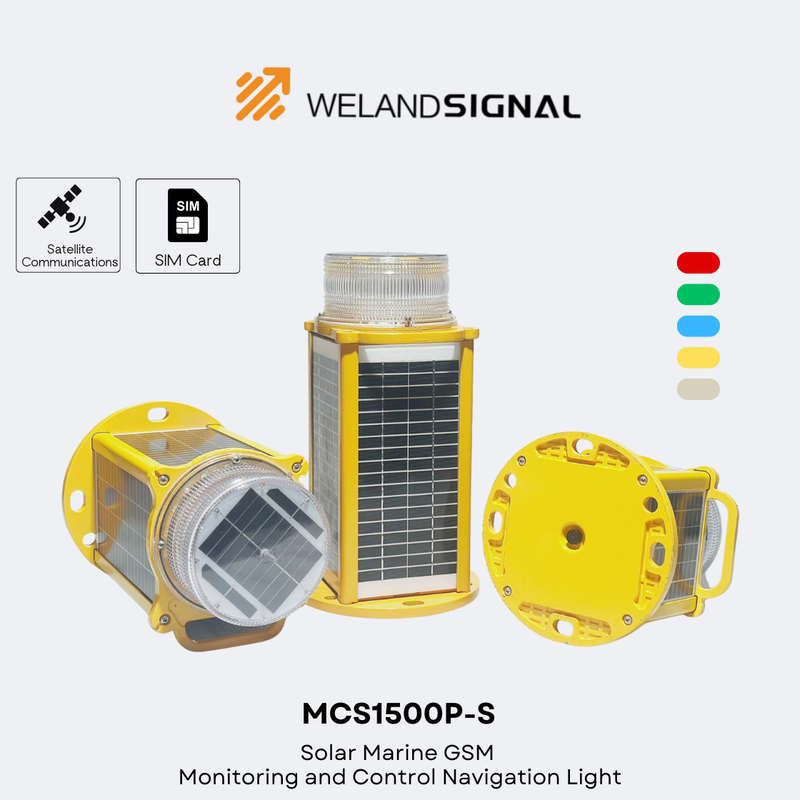

See It from Every Angle
Available Data from Remote Lantern
- Battery voltage
- Solar module charging current
- Lantern current draw
- Lantern position - Latitude and Longitude
- Day/night on status
- Current operation mode
- Current flash code setting
- Control and operate light at office
- OEM other functions
Technical Specifications
Key parameters to ensure reliability, efficiency, and long-term durability.
| Model |
MCS650P-S
|
MCS1500P-S |
| Color |
Red/Yellow/Green/White/Blue
|
| Horizontal Output (degrees) |
360
|
| Light source |
LED /lifespan >100,000h
|
| Visibility |
3-4nm
|
4-5nm |
| Design Ideas |
Integrated construction
|
| Flashing Pattern |
256IALA Flashing
|
| Lens Material |
Polycarbonate (Material supplied by Bayer, Model: 2407)
Shock-resistant, Anti-UV, Salt and dust self-protection
|
| Solar Panel |
4 pcs * 6.5 Watts
+ 2W on the top
|
4 pcs * 7.2 Watts
+ 2W on the top
|
| Energy Storage |
12.8V 14Ah
|
12.8V 20Ah
|
| Battery Type |
Option 1: LiFePO4 Battery - High-temperature regions
Option 2: Ternary Lithium Battery - Low-temperature regions
(Both options available for standard regions, confirmation via sales.)
|
| Protection Level |
IP68
|
| Temperature |
-40 to 70°C (depends on battery type)
|
| Energy Management System (EMS) |
Intelligent microprocessor
|
| Automatic Light Control (ALC) |
Automatically adjusts to low sunlight to ensure continuous operation
Turns on at night, off during the day
|
| Mounting |
4 bolts of M6 for mounting
|
| Standard |
IALA
|
| Certification |
CE & RoHs
|
Structure
Size (mm)
Remote Monitoring & Control
Enables remote telemetry and control directly from the office.
FAQ
1. Q: What functions can be performed remotely?
Users can remotely monitor real-time operating status, battery levels, charging conditions, and fault alerts. Control functions include switching the light on/off, adjusting flash settings, and system resets—all accessible from a central office location.
2. Q: How can I test the remote monitoring system before purchasing?
We provide temporary test accounts upon request. Please contact our sales representative to obtain login credentials and experience the platform firsthand.
