6nm-7nm Navigation Buoy Lights IALA Solar Marine Beacon Light

6nm-7nm Navigation Buoy Lights IALA Solar Marine Beacon Light

  • 6nm-7nm Navigation Buoy Lights IALA Solar Marine Beacon Light
  • 6nm-7nm Navigation Buoy Lights IALA Solar Marine Beacon Light
6nm-7nm Navigation Buoy Lights IALA Solar Marine Beacon Light
Product Details:
Place of Origin: SHAANXI, CHINA
Brand Name: WelandSignal
Certification: ROHS, CE
Model Number: NFS400
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD$199
Packaging Details: Each has one small carton
Delivery Time: 3-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Light Source: Super Bright LED Color: Red, Yellow ,green ,blue, White
Material: Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection Design Idea: Integrated Construction Bird Deterrent Conjoined With Lens For Not Easy To Break
Visibility: 6nm Waterproof: IP68
Solar Panel: 4W * 4pcs Mono Battery: 12.8V4AH LiFePO4 Battery
Mounting: 4pcs Bolts Warranty: 3 Years
Standard: IALA 256 Flashing Pattens Application: Vessel Navigation Light, Boat Navigation Lantern, Masthead Light, Stern Light, Side Light, All-round Light, 6nm Solar Boat Navigation Light
High Light:

6nm Navigation Buoy Lights


IALA solar marine beacon light


6nm marine strobe beacon

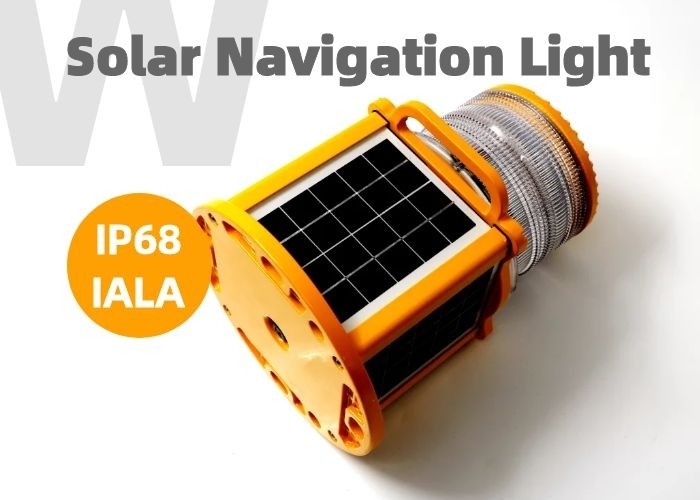

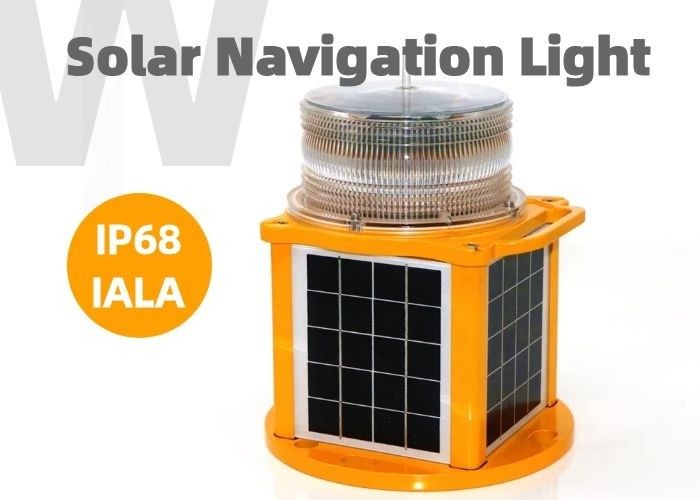

The NFS400 6-7nm Solar Powered Led Marine Buoy Lights,one of the largest freestanding LED lanterns in the world,is a solar LED marine lantern designed for a range of low maintenance applications. A large solar array makes this lantern ideal for areas with limited sunlight.
The light features a large internal battery compartment, a multi-layer NFS400 LED light head and 4 premium 20 watt solar modules mounted at every angle to collect sunlight.

NFS400 is moulded from UV-stabilised virgin polyethylene which provides excellent impact and weather resistance in addition to the high visibility IALA colour.

The sturdy polycarbonate lens is designed for use with LEDs and also enables boat operators to clearly see the light from above when passing through the AtoN.

The user-friendly 2-piece design allows the lantern to be opened for easy inspection or battery replacement, while the base remains secured to the support structure.

Optional RF synchronization or GPS synchronization
The NFS400 can be equipped with an optional RF sync module for short-range flash sync. For flash synchronization of lamps installed at a longer range, a GPS module can be installed.

When the lanterns flash in sync, they are clearly distinguishable from other navigational aids and confusing background lighting - perfect for rivers, pier entrances, fairway markings and aquaculture.

Optional GSM monitoring system
The NFS400can also be equipped with GSM remote monitoring and control capabilities - enabling users to access real-time diagnostic data and change lantern settings through a mobile phone or PC interface.

Optional AIS remote monitoring
AIS integration enables remote monitoring of the NFS400 as well as key messages21 broadcast to seafarers in the area.





6-7nm Solar Powered Led Marine Buoy Lights


Mechanical Specifications Electrical Specifications


Peak Intensity


1500cd with 6nm visibility, adjustable


Solar Integrated Design

Bird deterrent conjoined with lens for not easy to break


Working Model


Flashing  Lens Material Polycarbonate


Protect Level


IP68 Solar Panel 4W * 4pcs mono


Energy Manage System (EMS)


Intelligent Microprocessor Storage Battery 12.8V4AH LiFePO4 battery




-45℃~70℃ Function Optional Location,256IALA flashing patterns


Continuous Working Hours

250hours Mounting 4 bolts M6 for Mounting


Automatic Light Control (ALC)


Turn on at night and off at daytime automatically Standard




6nm-7nm Navigation Buoy Lights IALA Solar Marine Beacon Light 0



  • Year-round, unrestricted solar exposure is critical to long-term performance. Shade dramatically reduces the ability of the light to charge its battery.
  • Charge every 3 months when storing.





  • The navigation lights can operate with solar panels and batteries in order to offer low power consumption.

  • Will charge under nearly all weather conditions and up to 200 hours of operating capacity.

  • Over 60% cost saving, compared with using traditional types. No cables or electrical infrastructure required, and lab also saves by no need to take heavy to the top.



  • We update main components every year with the rapid development of solar panel, batteries and LEDs.
  • We always keep ourselves up-to-date.



  • Patented dome protects solar panel while improving efficiency, sheds snow.
  • Regulation automatically turns on at dusk and off at dawn.



SIZE (mm)

6nm-7nm Navigation Buoy Lights IALA Solar Marine Beacon Light 1


Recent Projects

Our unique.portable designs ensure navigation lanterns can withstand harsh conditions at sea. All components are housed in rugged, high grade enclosure to ensure long-term performance with no maintenance. Since 2010, WelandSignalTM has finished 32,000 installations over 80 countries.
