Anti UV Solar LED White Lights Buoy Marker Lights IP68 10-20nm

Anti UV Solar LED White Lights Buoy Marker Lights IP68 10-20nm

  • Anti UV Solar LED White Lights Buoy Marker Lights IP68 10-20nm
Anti UV Solar LED White Lights Buoy Marker Lights IP68 10-20nm
Product Details:
Place of Origin: SHAANXI, CHINA
Brand Name: WelandSignal
Certification: ROHS,CE
Model Number: BD02S4
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD$2888
Packaging Details: Each has one small carton and 6pcs in one big carton
Delivery Time: 3-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Light Source: Super Bright Medium Intensity LED Color: Red, Green, Yellow, Blue, White
Voltage: 12VDC,4VDC,48VDC Material: Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection
Working Mode: Flashing, Steady On Peak Intensity: 10-20nm
Waterproof: IP67 Mounting: 4pcs Bolts
Warranty: 5 Years OEM: Color, Flashing Frequency, Logo, Carton Design
Standard: IALA, Beidou Application: Buoy, Bridge, Light Tower, Boat Navigation Lighting
High Light:

White Lights Buoy Marker Lights

,

Buoy Marker Lights IP68

,

20nm solar marine beacon light

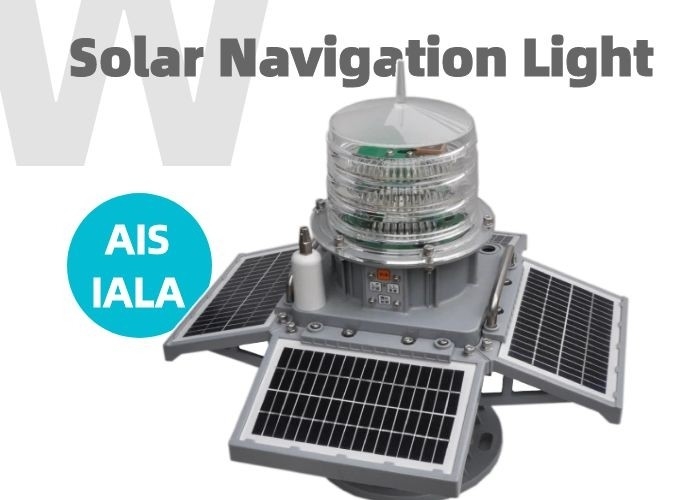

Solar Led Buoys And Markers With White Lights is a solar LED marine lantern designed for a range of low maintenance applications. A large solar array makes this lantern ideal for areas with limited sunlight.The light features a large internal battery compartment, a multi-layer NFS400 LED light head and 4 premium 20 watt solar modules mounted at every angle to collect sunlight.

Solar Led Buoys And Markers With White Lights is moulded from UV-stabilised virgin polyethylene which provides excellent impact and weather resistance in addition to the high visibility IALA colour.

The sturdy polycarbonate lens is designed for use with LEDs and also enables boat operators to clearly see the light from above when passing through the AtoN.

The user-friendly 2-piece design allows the lantern to be opened for easy inspection or battery replacement, while the base remains secured to the support structure.



SPECIFICATIONS



Classification name Parameter index
Features of the whole machine Operating Voltage DC: 9.5V—12.6V (Powered by ternary lithium battery, the battery can be repaired)
Solar panels Inclined 4*5W, Vertical 4*7W
recharging current The typical value of charging current is 400Ma
Operating temperature -35℃—+60℃
parameter loading RS232, button
waterproof level IP68
weight 10.5kg
Installation size In line with domestic and international standards
Continuous rainy weather working hours ≥20 days
AIS features working frequency 161.975MHz, 162.025MHz
Modulation GMSK/FSK
frequency error ±0.5kHz
transmit power ≤6W
Average power consumption ≤0.05W
message format Messages No. 21 and No. 6, the two message periods are adjustable
Operating mode Mode three (SOTDMA, autonomous working mode)
Beidou features Communication module Beidou generation communication module
positioning module GPS, Beidou dual-mode positioning
transmit power 5W
Lamp Features glow color red/green/yellow/white/blue
Number of lamp layers 1st, 2nd, 3rd floor controllable
light value 256 adjustable
brightness 0-5 gears adjustable
Daylight Threshold Digital photosensitive, adjustable threshold
Irradiation distance 3—7.9nm
launch angle ≥7°
battery characteristics battery capacity Typical value 692WH (57.7AH@12V, 62.4AH@11.1V)
battery voltage Single nominal value DC: 2.6AH@3.7V



Optional RF synchronization or GPS synchronization
iT  can be equipped with an optional RF sync module for short-range flash sync. For flash synchronization of lamps installed at a longer range, a GPS module can be installed.

When the lanterns flash in sync, they are clearly distinguishable from other navigational aids and confusing background lighting - perfect for rivers, pier entrances, fairway markings and aquaculture.

Optional GSM monitoring system
iT can also be equipped with GSM remote monitoring and control capabilities - enabling users to access real-time diagnostic data and change lantern settings through a mobile phone or PC interface.

Optional AIS remote monitoring
AIS integration enables remote monitoring of the NFS400 as well as key messages21 broadcast to seafarers in the area.



Anti UV Solar LED White Lights Buoy Marker Lights IP68 10-20nm 0




Replaceable Accessories: High Gain Panel Antenna



Anti UV Solar LED White Lights Buoy Marker Lights IP68 10-20nm 1





Recent Projects

Our unique.portable designs ensure navigation lanterns can withstand harsh conditions at sea. All components are housed in rugged, high grade enclosure to ensure long-term performance with no maintenance. Since 2010, WelandSignalTM has finished 32,000 installations over 80 countries.



Anti UV Solar LED White Lights Buoy Marker Lights IP68 10-20nm 2
