| Place of Origin: | SHAANXI, CHINA |
| Brand Name: | WelandSignal |
| Certification: | ROHS, CE |
| Model Number: | NFS1803P |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD$399 |
| Packaging Details: | Each has one small carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000pcs/month |
| Light Source: | Super Bright LED | Color: | Red, Yellow ,green ,blue, White |
|---|---|---|---|
| Material: | Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection | Design Idea: | Integrated Construction Bird Deterrent Conjoined With Lens For Not Easy To Break |
| Visibility: | 10nm | Waterproof: | IP65 |
| Solar Panel: | 4W * 7pcs Mono | Battery: | 12.8V20AH LiFePO4 Battery |
| Mounting: | 4pcs Bolts | Warranty: | 3 Years |
| Standard: | IALA 256 Flashing Pattens | Application: | Vessel Navigation Light, Boat Navigation Lantern, Masthead Light, Stern Light, Side Light, All-round Light, 6nm Solar Boat Navigation Light |
| High Light: | 10nm Solar Navigation Buoy Lights,256 IALA Solar Buoy Lights,256 led buoy lights |
||

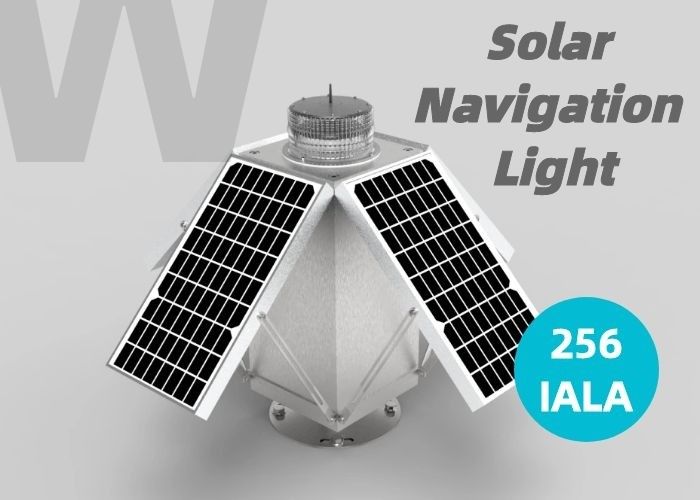

256 IALA 10nm Visibility Solar Led Buoy Navigation Lanterns capability makes it a self-contained and virtually worry-free lighting unit for medium-intensity obstacle lighting areas. The lighting system consists of three parts: lamp, battery box and solar panel. When light and solar panels. .4 solar panels can be folded and unfolded. This allows better absorption of sunlight, stores more energy for lighting, and is easier to transport. Rugged body and surface coating provide good protection from the Hach environment. Use 304/316 stainless steel for salt and shock resistance when working at sea.
The NFS1803P is equipped with a high-efficiency rechargeable battery that can power the lamp for up to 20 days in rainy weather. Rechargeable batteries can be found almost everywhere. It can provide 256 flashing patterns in accordance with IALA, Morse code, SOS code and custom code. These patterns are selected by touch switches and 8 indicators. Can be equipped with GPS if desired.
NOTE:
KEY FEATURES
ENERGY SAVING
The navigation lights can operate with solar panels and batteries in order to offer low power consumption.
Will charge under nearly all weather conditions and up to 200 hours of operating capacity.
Over 60% cost saving, compared with using traditional types. No cables or electrical infrastructure required, and lab also saves by no need to take heavy to the top.
UP-TO-DATE MATERIALS AND TECHNOLOGY
RELIABLE
SPECIFICATIONS
|
256 IALA 10nm Visibility Solar Led Buoy Navigation Lanterns
|
|||
| Mechanical Specifications | Electrical Specifications | ||
|
Peak Intensity
|
1500~2500cd adjustable |
Structure |
Solar Integrated Design Bird deterrent conjoined with lens for not easy to break |
|
Working Model
|
Flashing | Lens Material | Polycarbonate |
|
Protect Level
|
IP68 | Solar Panel | 7W * 4pcs mono |
|
Energy Manage System (EMS)
|
Intelligent Microprocessor | Storage Battery | 12.8V20AH LiFePO4 battery |
|
Temperature
|
-45℃~70℃ | Function Optional | Location |
|
Continuous Working Hours |
250hours | Mounting | 4 bolts M6 for Mounting |
|
Automatic Light Control (ALC)
|
Turn on at night and off at daytime automatically | Standard |
IALA 256 flashing pattens |
SIZE (mm)
OPERATION
4pcs of Solar panels are foldable for better sunshine absorption.
