15nm 256 Solar Powered Marine Navigation Light For Boat Buoys

15nm 256 Solar Powered Marine Navigation Light For Boat Buoys

Boat Buoys Marine Navigation Light

15nm Marine Navigation Light

256 Solar Powered Marine Navigation Light

Place of Origin:

SHAANXI, CHINA

Brand Name:

WelandSignal

Certification:

ROHS, CE

Model Number:

NFS3500

Contact Us
Request A Quote
Product Details
Light Source:
Super Bright LED
Color:
Red, Yellow ,green ,blue, White
Material:
Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection
Design Idea:
Integrated Construction Bird Deterrent Conjoined With Lens For Not Easy To Break
Visibility:
15nm
Waterproof:
IP68
Solar Panel:
7W * 4pcs+2W Mono
Battery:
12.8V24AH LiFePO4 Battery
Mounting:
4pcs Bolts
Warranty:
3 Years
Standard:
IALA 256 Flashing Pattens
Application:
Vessel Navigation Light, Boat Navigation Lantern, Masthead Light, Stern Light, Side Light, All-round Light, 6nm Solar Boat Navigation Light
Highlight:

Boat Buoys Marine Navigation Light

,

15nm Marine Navigation Light

,

256 Solar Powered Marine Navigation Light

Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
USD$400
Packaging Details
Each has one small carton
Delivery Time
3-7 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
20000pcs/month
Product Description

15nm 256 Solar Powered Marine Navigation Light for boat buoys

Description

The NFS3500 is a high-intensity solar-powered marine light designed to provide superior visibility for maritime navigation. This light stands out in the solar-integrated marine lighting category as one of the brightest options available, perfect for long-distance visibility needs.



Key Features

  •  Optical Design: Equipped with an optical flat mirror lens and an internal reflective cover, the NFS3500 significantly enhances light intensity for extended visibility.
  • Solar Power Efficiency: Like the NFS600, it features foldable 7.2W*4pcs solar panels for efficient energy harvesting and convenient transportation.
  • Robust and Durable: The unit's construction is designed to endure harsh marine environments, ensuring long-term reliability and performance.
  • Long-Lasting Battery: Powered by a 12.8V 24AH LiFePO4 battery, the NFS3500 boasts an impressive lifespan of over 15 years.
  • Visibility Range: Maintaining the exceptional standard of 20+ nautical miles visibility, making it ideal for a wide range of maritime signaling requirements.
  • Flashing Patterns: Offers 256 flashing patterns including IALA, Morse, and SOS codes, easily adjustable via a user-friendly touch switch.

SPECIFICATIONS





5nm 256 Solar Powered Marine Navigation Light for boat buoys



Mechanical Specifications Electrical Specifications



Peak Intensity



2500cd with 15nm visibility, adjustable Structure

Solar Integrated Design

Bird deterrent conjoined with lens for not easy to break



Working Model



Flashing Lens Material Polycarbonate



Protect Level



IP68 Solar Panel7 7W * 4pcs+2W mono



Energy Manage System (EMS)



Intelligent Microprocessor Storage Battery 12.8V24AH LiFePO4 battery



Temperature



-45℃~70℃ Function Optional Location, Wireless controller and mornitoring



Continuous Working Hours

250hours Mounting 4 bolts M6 for Mounting



Automatic Light Control (ALC)



Turn on at night and off at daytime automatically Standard



256IALA flashing patterns

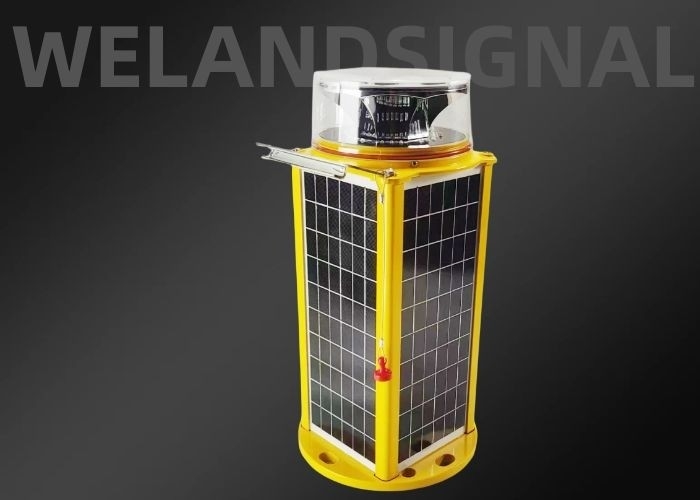

15nm 256 Solar Powered Marine Navigation Light For Boat Buoys 0

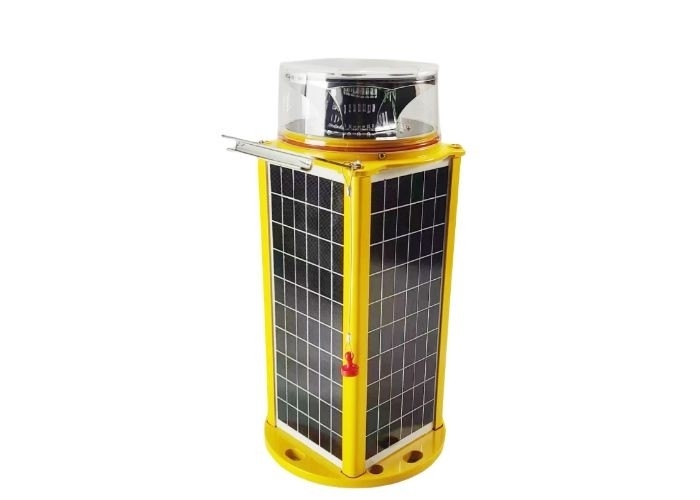

15nm 256 Solar Powered Marine Navigation Light For Boat Buoys 1



NOTE:

  • Year-round, unrestricted solar exposure is critical to long-term performance. Shade dramatically reduces the ability of the light to charge its battery.
  • Charge every 3 months when storing.



KEY FEATURES



ENERGY SAVING

  • The navigation lights can operate with solar panels and batteries in order to offer low power consumption.

  • Will charge under nearly all weather conditions and up to 200 hours of operating capacity.

  • Over 60% cost saving, compared with using traditional types. No cables or electrical infrastructure required, and lab also saves by no need to take heavy to the top.



UP-TO-DATE MATERIALS AND TECHNOLOGY

  • We update main components every year with the rapid development of solar panel, batteries and LEDs.
  • We always keep ourselves up-to-date.



RELIABLE

  • Patented dome protects solar panel while improving efficiency, sheds snow.
  • Regulation automatically turns on at dusk and off at dawn.



SIZE (mm)

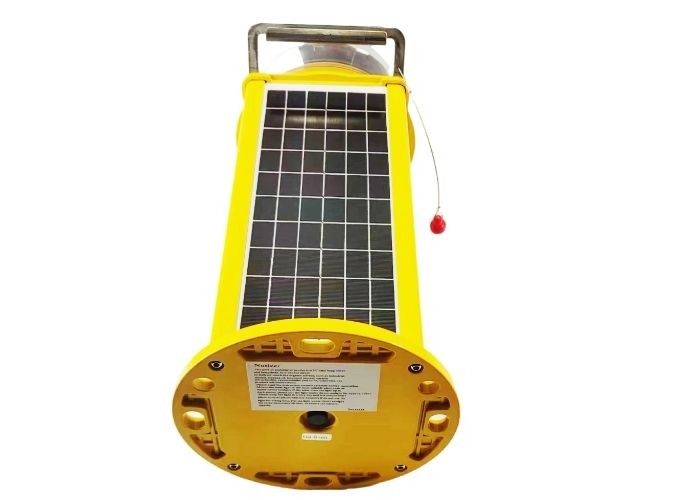

15nm 256 Solar Powered Marine Navigation Light For Boat Buoys 2



Recent Projects

Our unique.portable designs ensure navigation lanterns can withstand harsh conditions at sea. All components are housed in rugged, high grade enclosure to ensure long-term performance with no maintenance. Since 2010, WelandSignalTM has finished 32,000 installations over 80 countries.



15nm 256 Solar Powered Marine Navigation Light For Boat Buoys 3
