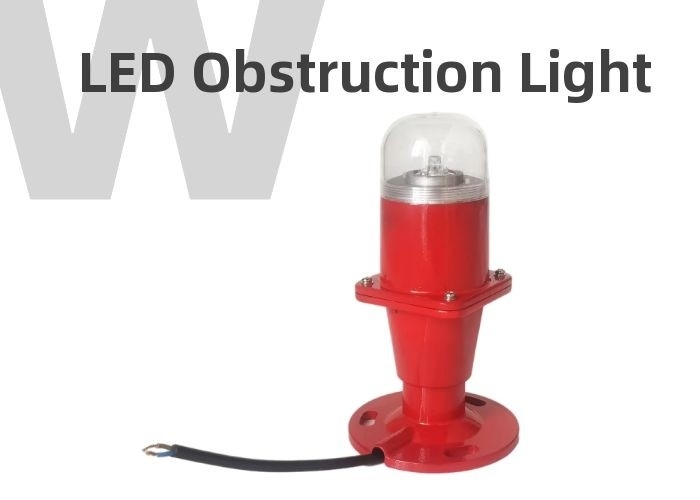

Red Flashing Chimney Aviation Warning Light IP67 Waterproof

Red Flashing Chimney Aviation Warning Light.designed to meet the FAA Type A obstruction lighting requirements of AC 70/7460-1L Advisory Circular Chapter 5. This style of marking requires aviation (orange/white) paint for day protection using L-864 flashing red beacons (2,000 cd) and L-810 flashing red side lights (32 cd) (A1 systems only) night protection.


KEY FEATURES

• Cost-effective, energy-efficient obstacle lighting solutions.
• Universal DC available: 12–48VDC acceptable.
• Universal AC available: 110-240VAC acceptable.
• User adjustable intensity to switch between ICAO LIOL Type A (10cd) and LIOL Type B (32cd).
• Alarm contacts for remote monitoring.
• Light sensor for day/night operation.
• LED technology reduces maintenance time and costs.
• Easy retrofit with existing installations.
• Available in optional solar configuration.

SPECIFICATIONS



SIZE (mm)

Dual Lighting Model

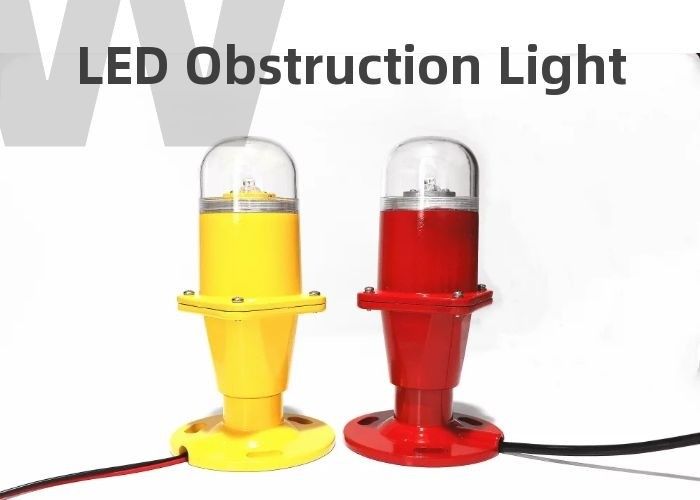

AFS1804 110V/220V Low Intensity Dual LED Obstruction Light is designed to survive and perform in airway fixed obstacle marking applications with a waterproof, vibration proof and corrosion resistance casing. It comply with ICAO regulation, low intensity, type A/type B. Working mode is steady burning.
AFS1804 Red Flashing Chimney Aviation Warning Double light is integrated by 2 single lights. For making sure there is always a light working at the top of the tower. Two optional working patterns can meet different area’s customers.
“Service+Standby”: Only “service light” is working normally. It will auto-transfer to “standby light” in case of ”service light” failure
“Service+Service”: Two single lights work simultaneously. Either failure will not affect the other normal working.

INSTALLATIONS

Aircraft Instrument Panel Lighting for Chimney

Due to the particularity of the structure of the chimney itself, when setting up aviation obstruction lights, the obstruction lights installed at the top must be located between 1.5-3 meters at the top. When the height of the chimney is H > 150 meters, the obstruction lights can be installed at within 7.5 meters below the top of the chimney.

Reference standards: CAAC, ICAO, FAA "MH/T6012-2015" "MH5001-2013"

• When H≤45m, set a layer of medium-intensity aviation obstruction lights on the top of the chimney, and brush 7 color codes
• When 45 m < H ≤ 105 m, the chimney should be provided with multi-layer aviation obstruction lights, with medium-intensity B-type aviation obstruction lights at the top, and medium-intensity aviation obstruction lights at other layers, and the distance between each layer should not be greater than 45 meters. , and as equal as possible
• When 105m<H≤150m, the chimney should be provided with multi-layer aviation obstruction lights, with medium-intensity type A aviation obstruction lights at the top, and medium-intensity aviation obstruction lights at other layers, and the spacing between layers should not be greater than 45 meters , and as equal as possible
• H ≥ 150 meters high-intensity aviation obstruction lights are set at the top of the chimney, and the distance is controlled within the range of 75-105 meters, and medium-intensity aviation obstruction lights are set between the high-intensity aviation obstruction lights.
