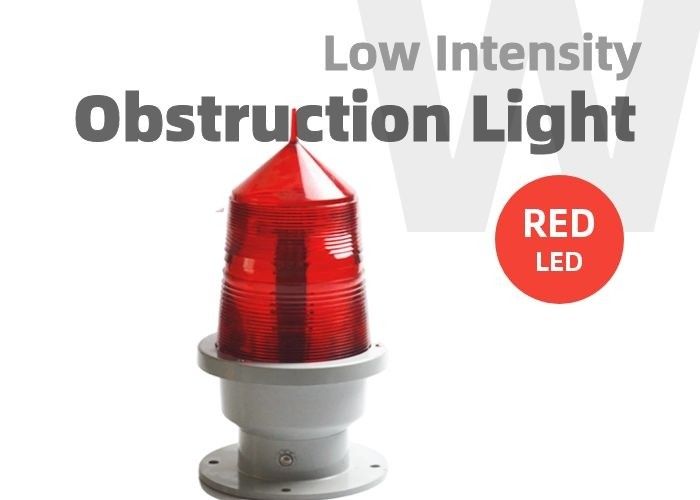

IP67 low intensity Air Craft Warning Light GZ155 Stable Burning

This GZ155 Aviation Lamp For Chimney is a stable burning low intensity LED obstruction light certified to FAA L-810 requirements. The model can be used to mark obstacles that pose a threat to aircraft, such as telecommunications towers, wind turbines, buildings and other tall structures.

Meets ICAO requirements for Low-Intensity Obstacle Lights

SPECIFICATIONS

KEY FEATURES

SIZE (mm)

Installation

Aviation Obstruction Light Configuration Scheme of Chimney

Due to the particularity of the structure of the chimney itself, when setting up aviation obstruction lights, the obstruction lights installed at the top must be located between 1.5-3 meters at the top. When the height of the chimney is H > 150 meters, the obstruction lights can be installed at within 7.5 meters below the top of the chimney.

Reference standards: CAAC, ICAO, FAA "MH/T6012-2015" "MH5001-2013"

• When H≤45m, set a layer of medium-intensity aviation obstruction lights on the top of the chimney, and brush 7 color codes
• When 45 m < H ≤ 105 m, the chimney should be provided with multi-layer aviation obstruction lights, with medium-intensity B-type aviation obstruction lights at the top, and medium-intensity aviation obstruction lights at other layers, and the distance between each layer should not be greater than 45 meters. , and as equal as possible
• When 105m<H≤150m, the chimney should be provided with multi-layer aviation obstruction lights, with medium-intensity type A aviation obstruction lights at the top, and medium-intensity aviation obstruction lights at other layers, and the spacing between layers should not be greater than 45 meters , and as equal as possible
• H ≥ 150 meters high-intensity aviation obstruction lights are set at the top of the chimney, and the distance is controlled within the range of 75-105 meters, and medium-intensity aviation obstruction lights are set between the high-intensity aviation obstruction lights.
