Solar LED Chimney Obstruction Light Cast Aluminium Salt Resistant

Solar LED Chimney Obstruction Light Cast Aluminium Salt Resistant

Solar LED Chimney Obstruction Light

Chimney Obstruction Light Cast Aluminium

Cast Aluminium aeronautical obstruction light

Place of Origin:

SHAANXI, CHINA

Brand Name:

WelandSignal

Certification:

ROHS, CE

Model Number:

AFS1803

Contact Us
Request A Quote
Product Details
Light Source:
Super Bright LED
Color:
Red, Green, Yellow, Blue, White
Material:
Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection
Base Materiel:
Cast Aluminium With Anti-shock And Salt-resistance
Working Mode:
Flashing, Steady On
Peak Intensity:
100cd Adjustable
Waterproof:
IP68 100% Waterproof
Solar Panel:
2W Mono Solar Panel
Battery:
LifePO4 Lithium Battery 3.7V8.8Ah
Mounting:
Minutes Installation With Only 4pcs Bolts
Warranty:
3 Years
OEM:
Color, Flashing Frequency, Logo, Carton Design
Standard:
FAA L-810 And Low Intensity ICAO Type A/B Applications
Application:
Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area
Highlight:

Solar LED Chimney Obstruction Light

,

Chimney Obstruction Light Cast Aluminium

,

Cast Aluminium aeronautical obstruction light

Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
USD$59~79
Packaging Details
Each has one small carton and 6pcs in one big carton
Delivery Time
3-7 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
20000pcs/month
Product Description

The Solar LED Obstruction Aviation Lamp For Chimney, with visibility of 10 km, is provided by WelandSignal and is designed to reduce the labor of installation, without the need for cables and without the need for additional special equipment. All of our barrier lights use premium components and utilize the latest solar management to ensure consistent and reliable performance in demanding environments. WelandSignalTM offers a multi-year warranty and extensive pre- and post-sales support for our products.





Solar LED Chimney Obstruction Light Cast Aluminium Salt Resistant 0

NOTE:

  • Year-round, unrestricted solar exposure is critical to long-term performance. Shade dramatically reduces the ability of the light to charge its battery.
  • Charge every 3 months when storing.



KEY FEATURES



ENERGY SAVING

  • Solar LED Obstruction Aviation Lamp For Chimney For Aircraft can operate with solar panels and batteries in order to offer low power consumption.
  • Will charge under nearly all weather conditions and up to 200 hours of operating capacity.
  • Over 60% cost saving, compared with using traditional types. No cables or electrical infrastructure required, and lab also saves by no need to take heavy to the top.



UP-TO-DATE MATERIALS AND TECHNOLOGY

  • We update main components every year with the rapid development of solar panel, batteries and LEDs.
  • We always keep ourselves up-to-date.



RELIABLE

  • Patented dome protects solar panel while improving efficiency, sheds snow.
  • Regulation automatically turns on at dusk and off at dawn.



SPECIFICATIONS





Solar LED Obstruction Aviation Lamp For Chimney



Mechanical Specifications Mechanical Specifications



Peak Intensity



Steady On : 32.5cd

Flashing: 55cd

Structure

Solar Integrated Design

Bird deterrent conjoined with lens for not easy to break



Working Model



Flahing/Steady On Lens Material Polycarbonate



Protect Level



IP68 Solar Panel 2W mono



Energy Manage System (EMS)



Intelligent Microprocessor Storage Battery 3.7V8.8AH LiFePO4 battery



Temperature



-45℃~70℃ Function Optional Synchronization



Continuous Working Hours

250hours Mounting 4 bolts M6 for Mounting



Automatic Light Control (ALC)



Turn on at night and off at daytime automatically OEM Service

Color: Red, Green, Yellow, Blue, White

Flashing frequency



IMAGES

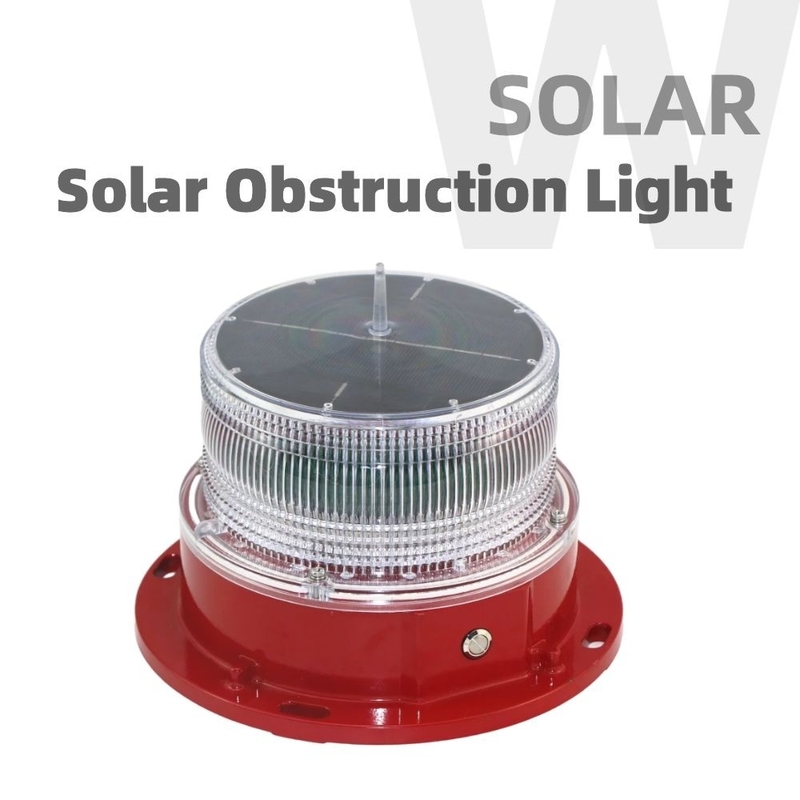

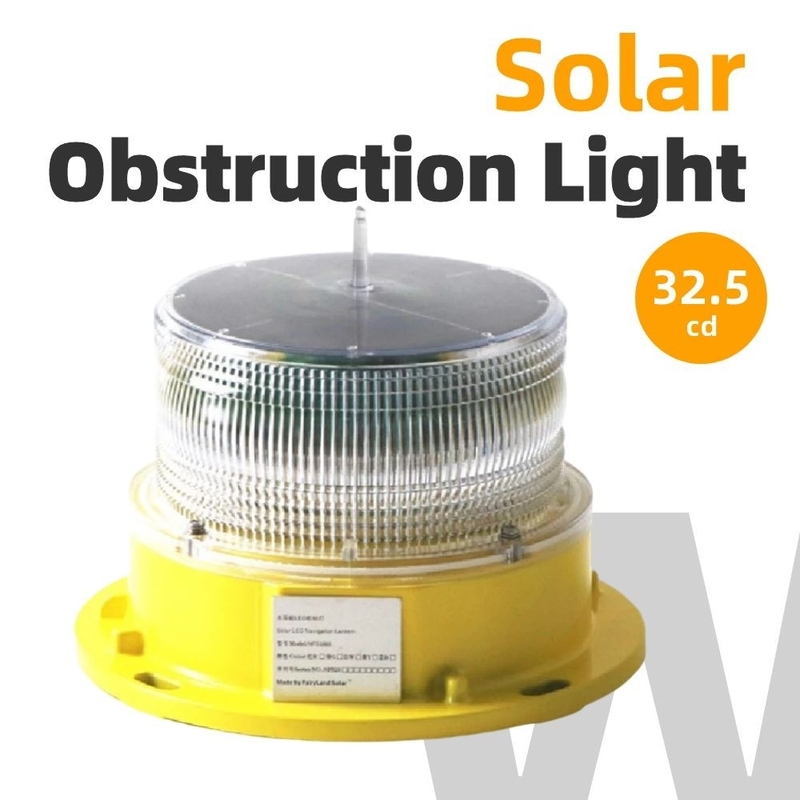

Solar LED Chimney Obstruction Light Cast Aluminium Salt Resistant 1

SIZE (mm)

Solar LED Chimney Obstruction Light Cast Aluminium Salt Resistant 2



STANDARD

Solar LED Chimney Obstruction Light Cast Aluminium Salt Resistant 3

Solar LED Chimney Obstruction Light Cast Aluminium Salt Resistant 4
