| Place of Origin: | SHAANXI, CHINA |
| Brand Name: | WelandSignal |
| Certification: | ROHS, CE |
| Model Number: | AFS2104 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD$59~79 |
| Packaging Details: | Each has one small carton and 6pcs in one big carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000pcs/month |
| Light Source: | Super Bright LED | Color: | Red, Green, Yellow, Blue, White |
|---|---|---|---|
| Material: | Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection | Working Mode: | Flashing, Steady On |
| Peak Intensity: | 10cd, 32.5cd, 55cd | Waterproof: | IP68 |
| Solar Panel: | 2W Mono | Battery: | LifePO4 Lithium Battery |
| Mounting: | 4pcs Bolts | Warranty: | 3 Years |
| OEM: | Color, Flashing Frequency, Logo, Carton Design | Standard: | FAA,ICAO |
| Application: | Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area | ||
| High Light: | Polycarbonate Tower Obstruction Light,LED Solar Powered Aircraft Warning Lights,Low Intensity Aircraft Warning Lights On Towers |
||

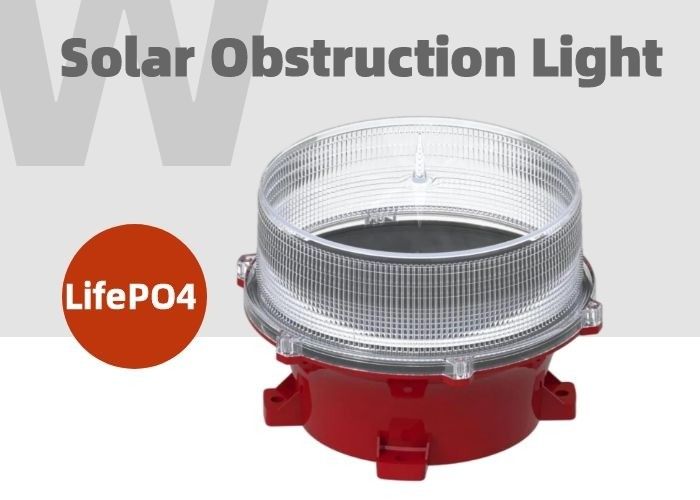

Low Intensity LED Solar Powered Aircraft Warning Lights On Towers
The current AFS2104 low-intensity LED solar aviation obstruction light is based on the AFS1803 type, using the integrated design of plug-in high-efficiency solar panels, and an LED low-intensity solar aviation obstruction light powered by a dedicated solar lithium-ion battery. The built-in photocell ensures that the LED only works at night and automatically turns off during the day. It is designed to mark the top of obstacles up to 45 meters in height.
SPECIFICATIONS
|
Low Intensity LED Solar Powered Aircraft Warning Lights On Towers
|
|||
| Mechanical Specifications | Electrical Specifications | ||
|
Peak Intensity
|
Steady On : 32.5cd Flashing: 55cd |
Structure |
Solar Integrated Design Bird deterrent conjoined with lens for not easy to break |
|
Working Model
|
Flahing/Steady On | Lens Material | Polycarbonate |
|
Protect Level
|
IP68 | Solar Panel | 2W mono |
|
Energy Manage System (EMS)
|
Intelligent Microprocessor | Storage Battery | 3.7V8.8AH LiFePO4 battery |
|
Temperature
|
-45℃~70℃ | Function Optional | Synchronization |
|
Continuous Working Hours |
250hours | Mounting | 4 bolts M6 for Mounting |
|
Automatic Light Control (ALC)
|
Turn on at night and off at daytime automatically | OEM Service |
Color: Red, Green, Yellow, Blue, White Flashing frequency |
NOTE:
KEY FEATURES
Based on LED technology, extremely reliable and cost saving.
Shock-proof and corrosion resistant.
Built-in connect terminals, and will connect well inside.
Combustibility rating:UL94-V0.
Highlight LED,LED lifetime more than 100,000hrs.
SIZE (mm)
STANDARD
CATEGORIES: Low intensity obstruction light, FAA L810, ICAO type A, ICAO type A,Solar obstruction light, Tower obstruction light.Solar obstruction light, Tower obstruction light. Chimney obstacle warning light ,Bridge navigation light, Tall buildings obstacle light.
