| Place of Origin: | SHAANXI, CHINA |
| Brand Name: | WelandSignal |
| Certification: | ROHS,CE |
| Model Number: | OL1804 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD$49 |
| Packaging Details: | Each has one small carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000pcs/month |
| Light Source: | Super Bright Medium Intensity LED | Color: | Red, Green, Yellow, Blue, White |
|---|---|---|---|
| Voltage: | 110-220VAC,12VDC,24VDC,48VDC | Material: | Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection |
| Working Mode: | Flashing, Steady On | Peak Intensity: | 10cd,32.5cd,300cd |
| Waterproof: | IP67 | GPS Synchronization: | Optional GPS Enables Two Or More Lights To Flash In Unison |
| Warranty: | 5 Years | FAA: | Compliant With Obstruction Light Type L-810 As Per FAA Advisory Circular AC 150/5345-43G 09/26/12 (Red). |
| ICAO: | Meets ICAO Requirements For Low-Intensity Obstacle Lights Type A And Type B, According To ICAO Annex 14, Volume 1, 5th Edition, July 2009 And 6th Edition, July 2013 (Red). | Application: | Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area |
| High Light: | Low Intensity Aircraft Warning Lights,DC24V Aircraft Warning Lights,Towers low intensity obstruction light |
||

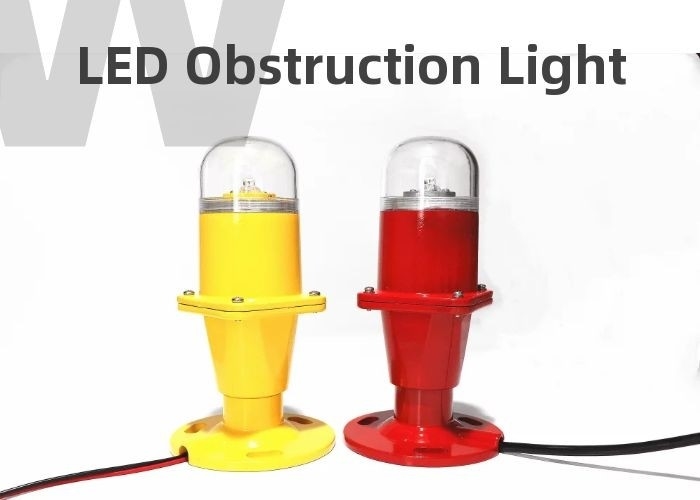

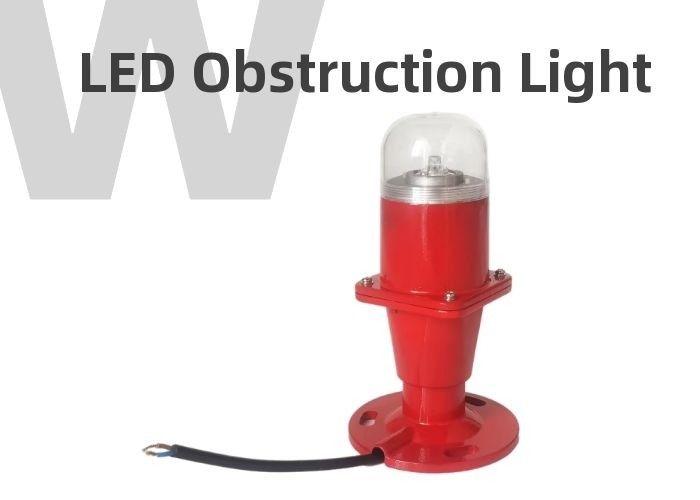

The AFS1804DC24V 48V Low Intensity Aircraft Warning Lights On Towers designed in accordance with ICAO low-intensity Class B regulations. NAVILITE is equipped with a red stabilized light LED technology covering a 360° horizontal beam, guaranteeing a long product life expected to exceed 10 years, and low consumption (1/10 compared to incandescent bulbs). Optional COMMAND BOX allows wiring and monitoring of up to 4 AFS1804s working only at night or continuously. It allows simultaneous or redundant operation (primary and backup lamps, the latter switching automatically in the event of mains failure) via remote signaling in the event of lamp or 48V DC power failure. Integrated photocell for D/N (Day/Night) switching. Wide voltage range, suitable for switching between DC and AC. The warranty period is 5 years and the life span is 20 years.
SPECIFICATIONS
|
DC24V 48V Low Intensity Aircraft Warning Lights On Towers
|
|||
| Mechanical Specifications | Electronic Specifications | ||
|
Peak Intensity
|
10cd,32.5cd,300cd | Structure | Integrated Design |
|
Working Model
|
Flahing/Steady On | Lens Material | Polycarbonate |
|
Protect Level
|
IP67 | Input Voltage | 110-220VAC, 50/60 Hz;12VDC;24VDC;48VDC |
|
LED
|
Super-bright medium intensty Leds | Function Optional | Synchronization |
|
Temperature
|
-45℃~70℃ | Mounting | 4 bolts M6 |
|
Automatic Light Control (ALC)
|
Turn on at night and off at daytime automatically | OEM Service | Color: Red, Green, Yellow, Blue, White Flashing frequency |
KEY FEATURES
• Cost-effective, energy-efficient obstacle lighting solutions.
• Universal DC available: 12–48VDC acceptable.
• Universal AC available: 110-240VAC acceptable.
• User adjustable intensity to switch between ICAO LIOL Type A (10cd) and LIOL Type B (32cd).
• Alarm contacts for remote monitoring.
• Light sensor for day/night operation.
• LED technology reduces maintenance time and costs.
• Easy retrofit with existing installations.
• Available in optional solar configuration.
SIZE(mm)
APPLIACTIONS
