Solar Medium Intensity Dual Tower Obstruction Light LED ICAO FAA

Solar Medium Intensity Dual Tower Obstruction Light LED ICAO FAA

  • Solar Medium Intensity Dual Tower Obstruction Light LED ICAO FAA
Solar Medium Intensity Dual Tower Obstruction Light LED ICAO FAA
Product Details:
Place of Origin: SHAANXI, CHINA
Brand Name: WelandSignal
Certification: ROHS,CE
Model Number: OLS32-D
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD$199
Packaging Details: Each has one small carton and 6pcs in one big carton
Delivery Time: 3-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Light Source: Super Bright Medium Intensity LED Color: Red, Green, Yellow, Blue, White
Optional Function: Fault Alarm System Material: Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection
Working Mode: Service+Standby Or Service+Service Peak Intensity: 10cd/32cd/200cd
Waterproof: IP67 Mounting: 4pcs Bolts
Warranty: 3 Years OEM: Color, Flashing Frequency, Logo, Carton Design
Standard: FAA,ICAO Application: Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area
High Light:

FAA Tower Obstruction Light


Tower Obstruction Light Medium Intensity


ICAO FAA Obstruction Light

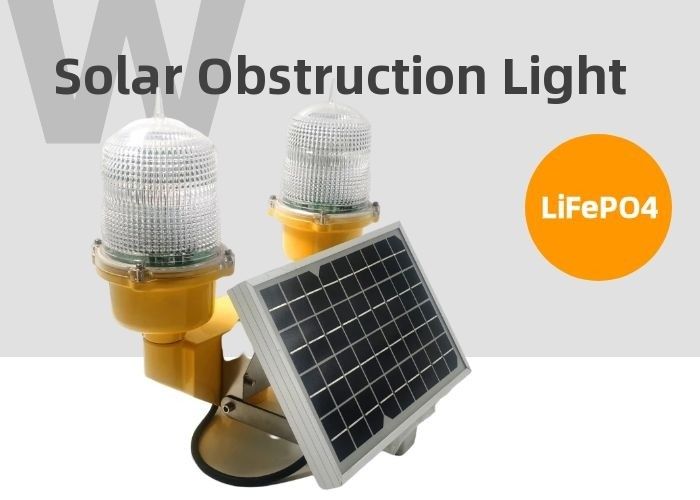

LED Solar Dual Medium Intensity Obstruction Light for Tower is a new generation medium intensity OB light. It comes with compact-size and light-weight, which makes installation job nice & easy.The optical part is based on Fresnel lens, a transformed convex lens which can concentrate light to a small specific angel. Fresnel lens is often used to design obstruction light.The light's ingress protection level is IP67, assures the light is well sealed to stand harsh environment include the ocean. If work with control box, more functions like synchronization could be realized. GPS or GPRS functions also available if needed.Medium intensity light OM2C-D is for tower taller than 45m. It should be used either alone, or in combination with low-intensity light type B (our OL32). The light comes with a plug type connection, which makes installation nice & easy. When the light has a built-in alarm relay, one more plug will be added to the base (alarm function needs 2 core shielded cable). A junction box that mounted on the double bracket has a PCB who can auto transfer to the standby light in case of failure of the service light, in “service+standby” mode.





LED Solar Dual Medium Intensity Obstruction Light for Tower


Mechanical Specifications Mechanical Specifications


Peak Intensity



Lens Material



Working Model


Steady on/ Flashing /on off controlled by a switch inside Storage Battery AGM,GEL,Lithium Battery option


Protect Level


IP67  Solar Panel mono-crystalline 18% efficiency




Super-bright medium intensity Leds  Function Optional Synchronization




-45℃~70℃ Mounting 4 bolts M6


Automatic Light Control (ALC)


Turn on at night and off at daytime automatically OEM Service

Color: Red, Green, Yellow, Blue, White

Flashing frequency


Solar Medium Intensity Dual Tower Obstruction Light LED ICAO FAA 0





  • The obstruction lights can operate with solar panels and batteries in order to offer low power consumption.
  • Will charge under nearly all weather conditions and up to 200 hours of operating capacity.
  • Over 60% cost saving, compared with using traditional types. No cables or electrical infrastructure required, and lab also saves by no need to take heavy to the top.



  • We update main components every year with the rapid development of solar panel, batteries and LEDs.
  • We always keep ourselves up-to-date.



  • Designed to meet FAA and ICAO obstruction standards
  • Regulation automatically turns on at dusk and off at dawn.




  • Telecomm tower
  • Radio tower
  • Wind turbine
  • Somke stacks & chimney
  • Tall building
  • Power transmission line



  • ​ICAO Annex 14, 4th Edition, July 2004
  • ICAO low intensity, type B
  • FAA AC150/5345-43F, 2006
  • FAA, type L810
