|Place of Origin:||SHAANXI, CHINA|
|Minimum Order Quantity:||1pc|
|Packaging Details:||Each has one small carton and 6pcs in one big carton|
|Delivery Time:||3-7 working days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Light Source:||Super Bright Medium Intensity LED||Color:||Red, Green, Yellow, Blue, White|
|Standard:||ICAO Type A, FAA L810||Material:||Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection|
|More Function:||Synchronization,Fault Alarm System||Peak Intensity:||2500cd Medium Intensity|
|Waterproof:||IP67||Solar Panel:||Mono With High Efficency|
|Battery Optional:||AGM, GEL , LIFEPO4 Battery||Mounting:||4pcs Bolts|
|OEM:||Color, Flashing Frequency, Logo, Carton Design||Application:||Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area|
IP67 FAA Beacon Light Requirements,
MCU Medium Intensity Aviation Obstruction Lights,
MCU medium intensity aviation light

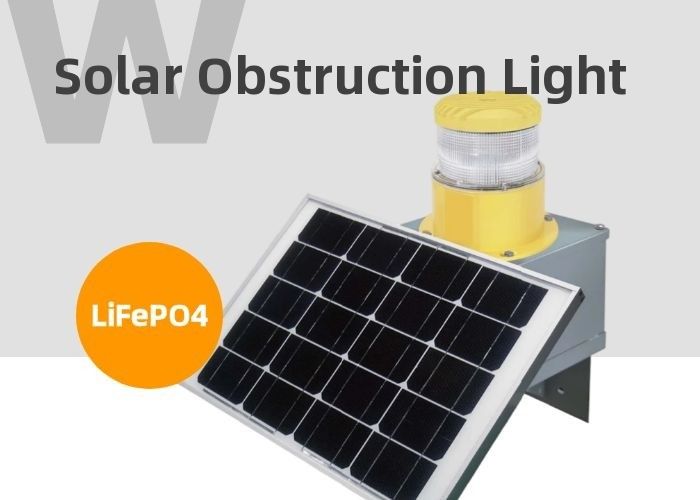

The Faa Beacon Light Requirements With Medium Intensity Aviation Obstruction Lights is a combination of power supply and a lighting lamp, suitable for use in places without electricity. There is no need for maintenance or management and it offers automatic control. This product can continuously operate for 5 days without any sunlight.
The units light source consists of external long life LEDs, to ensure maximum life of the product with an output of 2500candelas (flashing unit).
This product uses a standardised design, with the advantages of shockproof and corrosion resistance. It consists of an aviation light, controller, silicon solar panel and a battery.
This product complies with both ICAO (Annex 14) and FAA standards. The enclosure of this light is made of die casting aluminium (LM6) with a powder coated finish. Its key advantages are that it is lightweight, waterproof, shockproof and corrosion resistant.
The battery enclosure is made of cold rolled steel, and its light source consists of highly luminous long life LEDs. The optical decay does not exceed 30%.
This lamp has a built-in controller, a Multipoint Control Unit (MCU), that allows the lamp to manage fault detecting, circuit-measuring, circuit-protecting, circuit-monitoring and solar system protecting.
The silicon solar panel has the advantages of a high conversion rate, small scale fading, good reliability and external longevity. The mounting bracket for the solar panel is made of stamping parts which can withstand the harsh efforts of the environment and can also withstand the strong winds of up to 70KM/H. Its inclination angle is 20 – 70 degrees and its inclination direction is NNW-SSE.
The built-in battery is a long life maintenance free solid battery. The light is also equipped with a special mounting bracket, which is convenient to install and disassemble.
Faa Beacon Light Requirements With Medium Intensity Aviation Obstruction Lights
|Mechanical Specifications||Electrical Specifications|
|Steady on/ Flashing /on off controlled by a switch inside||Storage Battery||AGM,GEL,Lithium Battery option|
|IP67||Solar Panel||mono-crystalline 18% efficiency|
|Super-bright medium intensty Leds||Function Optional||Synchronization|
|-45℃~70℃||Mounting||4 bolts M6|
Automatic Light Control (ALC)
|Turn on at night and off at daytime automatically||OEM Service||
Color: Red, Green, Yellow, Blue, White
UP-TO-DATE MATERIALS AND TECHNOLOGY
