BN1240 OEM Bridge Safe Water Mark Lights 3-4nm Polycarbonate

BN1240 OEM Bridge Safe Water Mark Lights 3-4nm Polycarbonate

  • BN1240 OEM Bridge Safe Water Mark Lights 3-4nm Polycarbonate
  • BN1240 OEM Bridge Safe Water Mark Lights 3-4nm Polycarbonate
BN1240 OEM Bridge Safe Water Mark Lights 3-4nm Polycarbonate
Product Details:
Place of Origin: SHAANXI, CHINA
Brand Name: WelandSignal
Certification: ROHS, CE
Model Number: BN1240
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD$59~69
Packaging Details: Each has one small carton and 6pcs in one big carton
Delivery Time: 3-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Light Source: Super Bright LED Color: Red, Green, Yellow, Blue, White
Material: Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection Working Mode: Flashing, Steady On
Peak Intensity: 150cd Visibility: 3-4nm
Waterproof: IP68 Solar Panel: 1.5W Mono
Battery: LifePO4 Lithium Battery Mounting: 4pcs Bolts
Warranty: 3 Years OEM: Color, Flashing Frequency, Logo, Carton Design
Standard: IALA Application: Buoy, Bridge, Light Tower, Boat Navigation Lighting
High Light:

BN1240 Bridge Safe Water Mark Lights

,

Safe Water Mark Lights 4nm

,

Polycarbonate led navigation lights for bridges

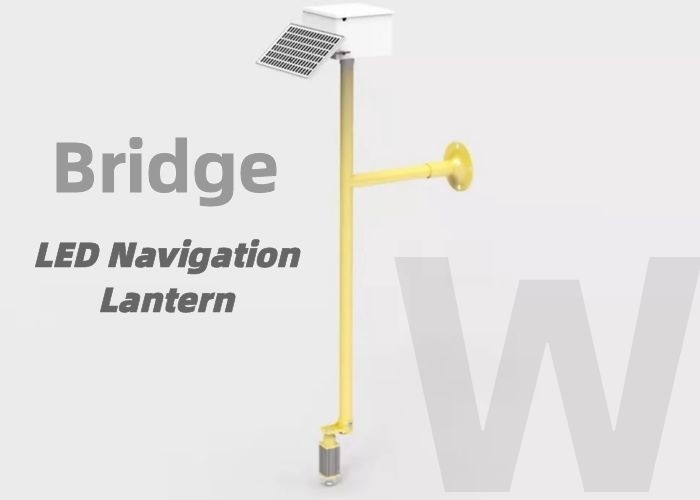

BN1240 Bridge Safe Water Mark Lights are an LED Bridge Light. They are specifically designed to clearly mark bridges and structures extending over navigable waterways. Used extensively throughout the USA, the BN1240 Series has been designed to offer superior visibility up to 4NM, and operate in conjunction with existing power supplies.

The light is available as a 180º sectored red model or 360º green model and comes fixed-on as standard. The fixtures are also available with a range of factory-set flash characteristics and sectoring requirements.

The BN1240 series can also be supplied as a complete solar/battery system to comply with requirements of regional governing bodies such as the U.S. Coast Guard, or the IALA recommendations for the marking of fixed bridges over navigable waters.



SPECIFICATIONS





BN1240 Bridge Safe Water Mark Lights



Mechanical Specifications Electrical Specifications



Visibility



3-4nm

Structure

Solar on the top and under bridge



Working Model



Flahing/Steady On Lens Material Polycarbonate



Protect Level



IP68 Solar Panel mono on the top



Energy Manage System (EMS)



Intelligent Microprocessor Storage Battery LiFePO4 battery on the back of solar panel



Temperature



-45℃~70℃ Function Optional Synchronization

Voltage

50/60 Hz;12VDC;24VDC;48VDC Mounting Botls



Automatic Light Control (ALC)



Turn on at night and off at daytime automatically OEM Service

Color: Red, Green, Yellow, Blue, White

Flashing frequency



BN1240 OEM Bridge Safe Water Mark Lights 3-4nm Polycarbonate 0



NOTE:

  • Year-round, unrestricted solar exposure is critical to long-term performance. Shade dramatically reduces the ability of the light to charge its battery.
  • Charge every 3 months when storing.



KEY FEATURES



ENERGY SAVING

  • The obstruction lights can operate with solar panels and batteries in order to offer low power consumption.
  • Will charge under nearly all weather conditions and up to 200 hours of operating capacity.
  • Over 60% cost saving, compared with using traditional types. No cables or electrical infrastructure required, and lab also saves by no need to take heavy to the top.



UP-TO-DATE MATERIALS AND TECHNOLOGY

  • We update main components every year with the rapid development of solar panel, batteries and LEDs.
  • We always keep ourselves up-to-date.



RELIABLE

  • Patented dome protects solar panel while improving efficiency, sheds snow.
  • Regulation automatically turns on at dusk and off at dawn.






Package Include

BN1240 OEM Bridge Safe Water Mark Lights 3-4nm Polycarbonate 1
