Flashing Pattern 6nm Solar Marine Channel Marker Lights Salt Dust Proof

Flashing Pattern 6nm Solar Marine Channel Marker Lights Salt Dust Proof

  • Flashing Pattern 6nm Solar Marine Channel Marker Lights Salt Dust Proof
  • Flashing Pattern 6nm Solar Marine Channel Marker Lights Salt Dust Proof
Flashing Pattern 6nm Solar Marine Channel Marker Lights Salt Dust Proof
Product Details:
Place of Origin: SHAANXI, CHINA
Brand Name: WelandSignal
Certification: ROHS, CE
Model Number: NFS400
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD$199
Packaging Details: Each has one small carton
Delivery Time: 3-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Light Source: Super Bright LED Color: Red, Yellow ,green ,blue, White
Material: Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection Design Idea: Integrated Construction Bird Deterrent Conjoined With Lens For Not Easy To Break
Visibility: 6nm Waterproof: IP68
Solar Panel: 4W * 4pcs Mono Battery: 12.8V4AH LiFePO4 Battery
Mounting: 4pcs Bolts Warranty: 3 Years
Standard: IALA 256 Flashing Pattens Application: Vessel Navigation Light, Boat Navigation Lantern, Masthead Light, Stern Light, Side Light, All-round Light, 6nm Solar Boat Navigation Light
High Light:

6nm Solar marine channel marker lights

,

Dust Proof marine channel marker lights

,

6nm solar channel marker lights

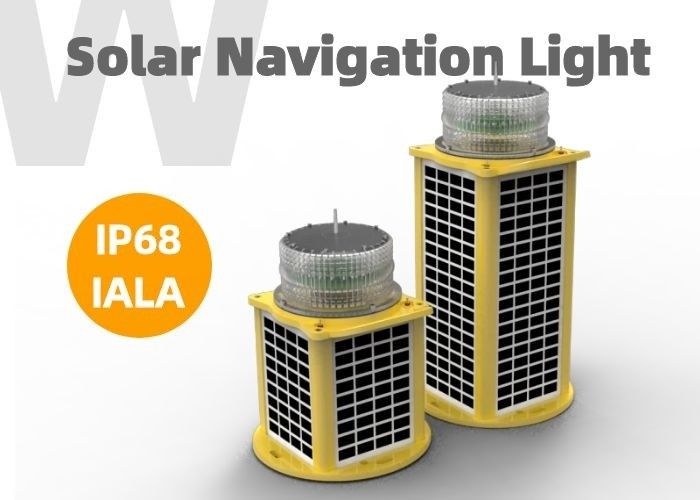

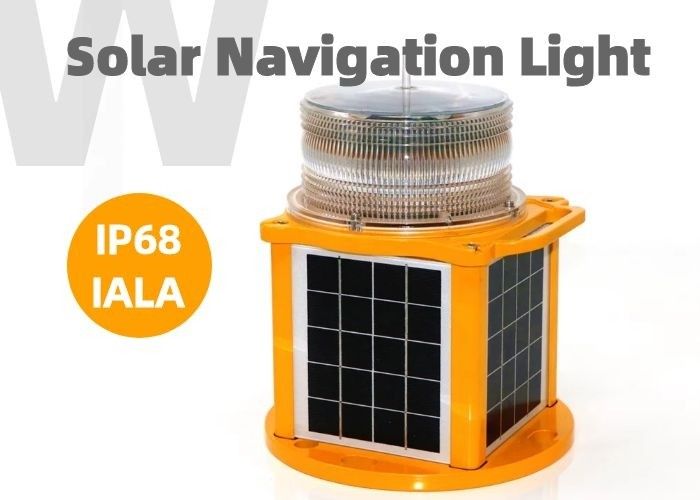

The 6nm Solar LEDchannel Marker Lights is used on buoy, light house and any other off shore site for marine/river safe navigation.
This LED Marine Lanterns is completely self-contained lantern. Four (4) solar panels are integrated into the assembly and mounted to collect sunlight at all angles. Ultra high intensity LED is used as light source which make performance better. Best lantern for buoy
GSM Monitoring as optional function, when fault happens, it will send out text message automatically.



SPECIFICATIONS





6nm Solar LEDchannel Marker Lights



Mechanical Specifications Electrical Specifications



Peak Intensity



1500cd with 6nm visibility, adjustable Structure

Solar Integrated Design

Bird deterrent conjoined with lens for not easy to break



Working Model



Flashing Lens Material Polycarbonate



Protect Level



IP68 Solar Panel 4W * 4pcs mono



Energy Manage System (EMS)



Intelligent Microprocessor Storage Battery 12.8V4AH LiFePO4 battery



Temperature



-45℃~70℃ Function Optional Location,256IALA flashing patterns



Continuous Working Hours

250hours Mounting 4 bolts M6 for Mounting



Automatic Light Control (ALC)



Turn on at night and off at daytime automatically Standard



IALA





Flashing Pattern 6nm Solar Marine Channel Marker Lights Salt Dust Proof 0



NOTE:

  • Year-round, unrestricted solar exposure is critical to long-term performance. Shade dramatically reduces the ability of the light to charge its battery.
  • Charge every 3 months when storing.



KEY FEATURES



ENERGY SAVING

  • The navigation lights can operate with solar panels and batteries in order to offer low power consumption.

  • Will charge under nearly all weather conditions and up to 200 hours of operating capacity.

  • Over 60% cost saving, compared with using traditional types. No cables or electrical infrastructure required, and lab also saves by no need to take heavy to the top.



UP-TO-DATE MATERIALS AND TECHNOLOGY

  • We update main components every year with the rapid development of solar panel, batteries and LEDs.
  • We always keep ourselves up-to-date.



RELIABLE

  • Patented dome protects solar panel while improving efficiency, sheds snow.
  • Regulation automatically turns on at dusk and off at dawn.



SIZE (mm)

Flashing Pattern 6nm Solar Marine Channel Marker Lights Salt Dust Proof 1



Recent Projects

Our unique.portable designs ensure navigation lanterns can withstand harsh conditions at sea. All components are housed in rugged, high grade enclosure to ensure long-term performance with no maintenance. Since 2010, WelandSignalTM has finished 32,000 installations over 80 countries.



Flashing Pattern 6nm Solar Marine Channel Marker Lights Salt Dust Proof 2
