Place of Origin: | SHAANXI, CHINA |
Brand Name: | WelandSignal |
Certification: | ROHS, CE |
Model Number: | NFS1803 |
Minimum Order Quantity: | 1pc |
---|---|
Price: | USD$59~79 |
Packaging Details: | Each has one small carton and 6pcs in one big carton |
Delivery Time: | 3-7 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 20000pcs/month |
Light Source: | Super Bright LED | Color: | Red, Green, Yellow, Blue, White |
---|---|---|---|
Material: | Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection | Working Mode: | Flashing, Steady On |
Visibility: | 3-4nm | Waterproof: | IP68 |
Solar Panel: | 2W Mono | Battery: | LifePO4 Lithium Battery |
Mounting: | 4pcs Bolts | Warranty: | 3 Years |
OEM: | Color, Flashing Frequency, Logo, Carton Design | Standard: | IALA, IMO |
Application: | Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area | ||
High Light: | IMO Bridge Navigation Lights,4nm Visibility Solar Marker Lights,4nm Visibility Solar Powered Navigation Lights |

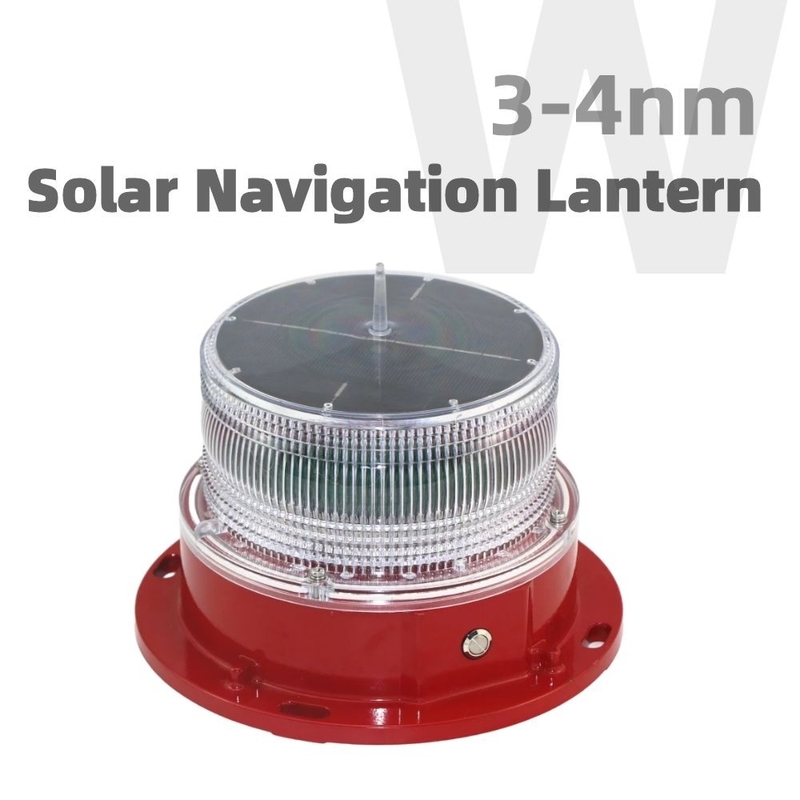

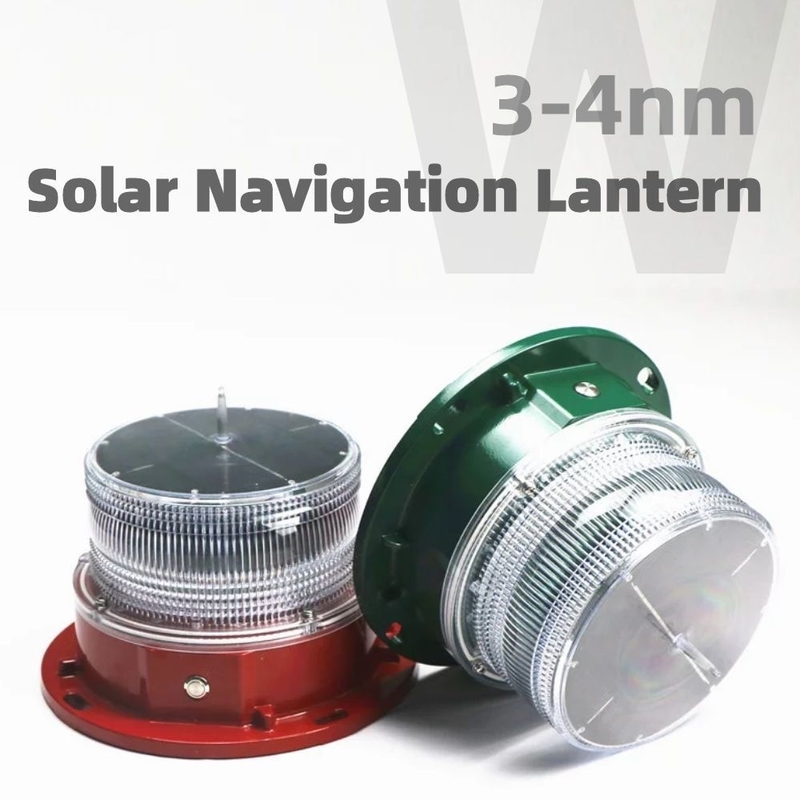

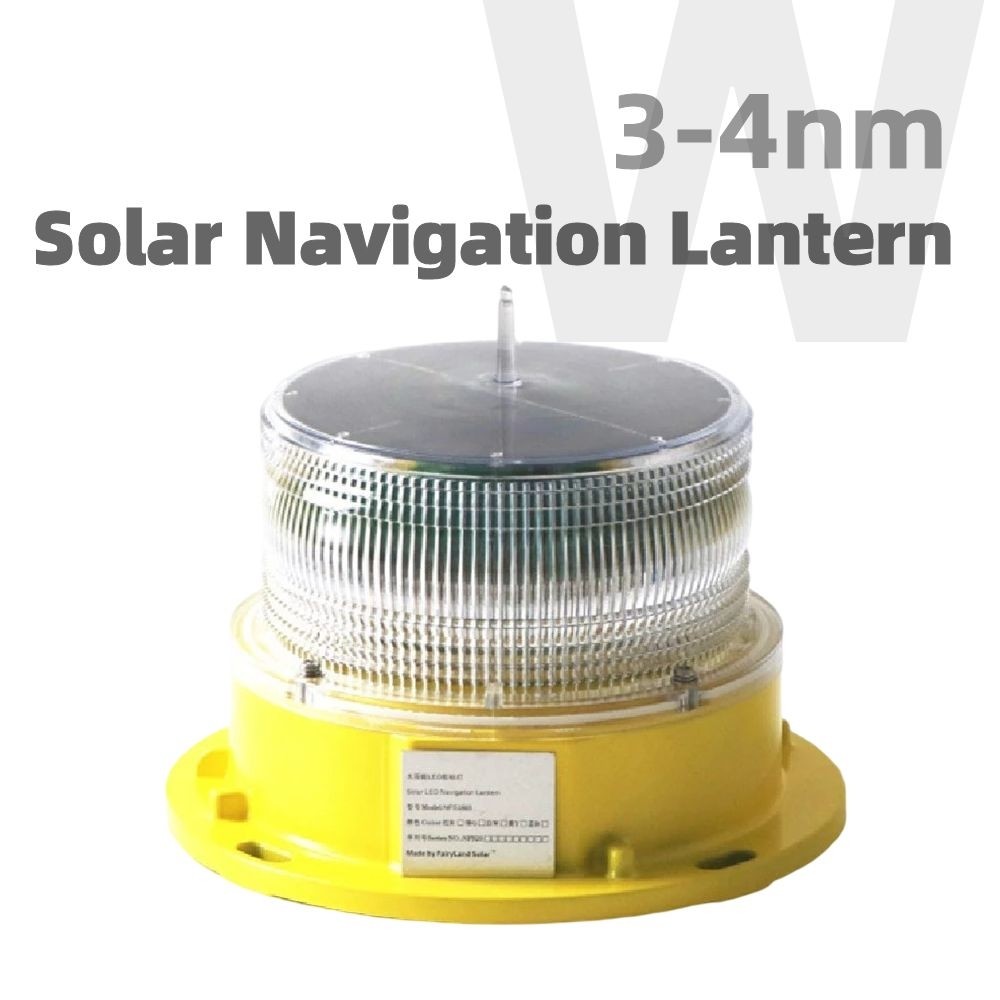

Solar LED Safe Water Mark Lights For Bridge has become the most classical solar-powered LED Light in the field of marine aid to navigation around the world. Because of its self-contained, reliability and durability, it has also become a perfect model for all kinds of warning applications. It installs in minutes and requires no maintenance. The optical part is based on polycarbonate lens for better led transformation which can concentrate light to a small specific angel to meet 4nm visibility requirements. It complies with IALA-AISM’s requirements. The service life can be guaranteed with more than 10 years by using the LiFePO4 batteries. NFS1803TS use touch S to reach IP68 marine requirements.
NOTE:
KEY FEATURES
ENERGY SAVING
UP-TO-DATE MATERIALS AND TECHNOLOGY
RELIABLE
SPECIFICATIONS
Solar LED Safe Water Mark Lights For Bridge
|
|||
Mechanical Specifications | Mechanical Specifications | ||
Visibility
|
3-4nm |
Structure |
Solar Integrated Design Bird deterrent conjoined with lens for not easy to break |
Working Model
|
Flahing/Steady On | Lens Material | Polycarbonate |
Protect Level
|
IP68 | Solar Panel | 2W mono |
Energy Manage System (EMS)
|
Intelligent Microprocessor | Storage Battery | 3.7V8.8AH LiFePO4 battery |
Temperature
|
-45℃~70℃ | Function Optional | Synchronization |
Continuous Working Hours |
250hours | Mounting | 4 bolts M6 for Mounting |
Automatic Light Control (ALC)
|
Turn on at night and off at daytime automatically | Flashing Pattern |
256IALA |
SIZE (mm)
APPLIACTIONS
