10nm LED Bridge Navigation Lights IALA 256 Shock Resistant

10nm LED Bridge Navigation Lights IALA 256 Shock Resistant

10nm LED Bridge Navigation Lights

Bridge Navigation Lights IALA 256

IALA 256 Solar Marker Lights

Place of Origin:

SHAANXI, CHINA

Brand Name:

WelandSignal

Certification:

ROHS, CE

Model Number:

NFS1800

Contact Us
Request A Quote
Product Details
Light Source:
Super Bright LED
Color:
Red, Yellow ,green ,blue, White
Material:
Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection
Design Idea:
Integrated Construction Bird Deterrent Conjoined With Lens For Not Easy To Break
Visibility:
6nm
Waterproof:
IP68
Solar Panel:
7W * 4pcs Mono
Battery:
12.8V10AH LiFePO4 Battery
Mounting:
4pcs Bolts
Warranty:
3 Years
Standard:
IALA 256 Flashing Pattens
Application:
Vessel Navigation Light, Boat Navigation Lantern, Masthead Light, Stern Light, Side Light, All-round Light, 6nm Solar Boat Navigation Light
Highlight:

10nm LED Bridge Navigation Lights

,

Bridge Navigation Lights IALA 256

,

IALA 256 Solar Marker Lights

Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
USD$199
Packaging Details
Each has one small carton
Delivery Time
3-7 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
20000pcs/month
Product Description

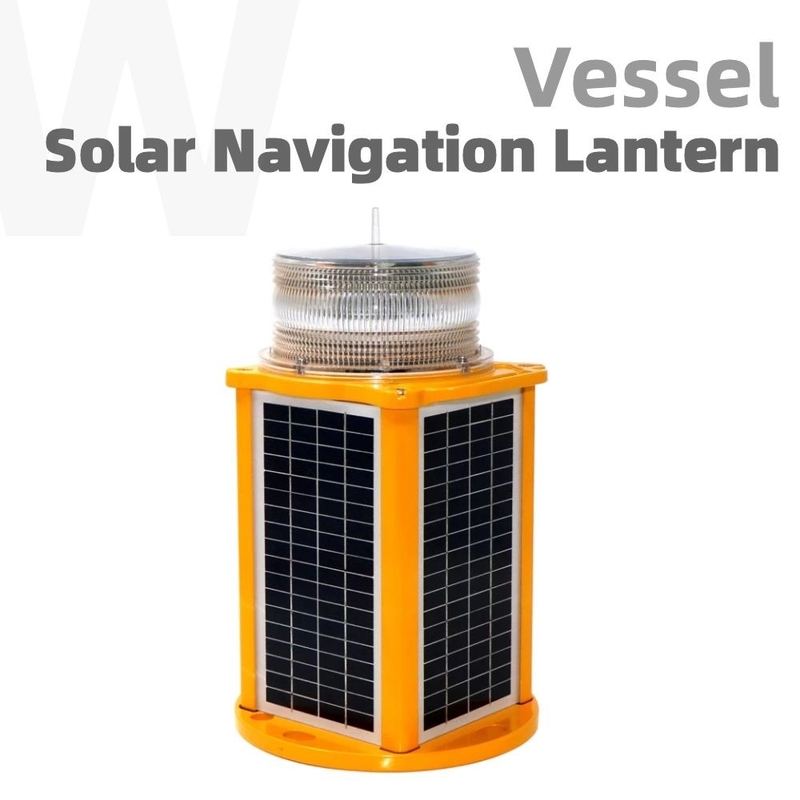

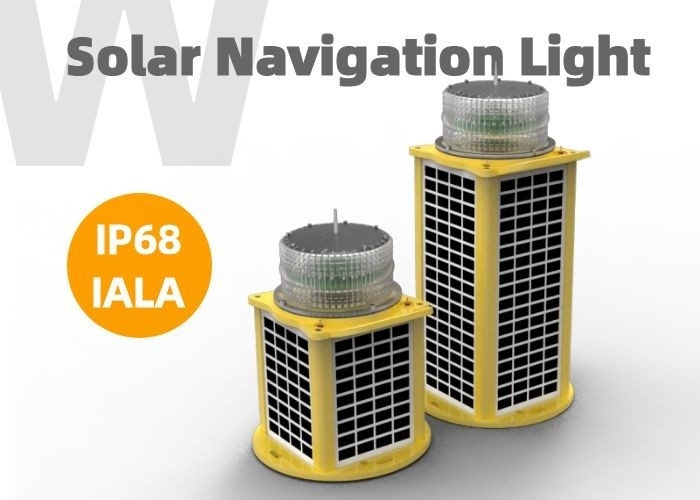

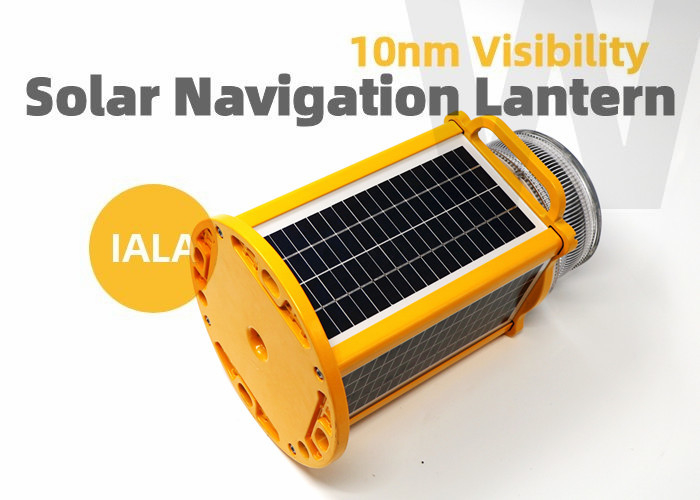

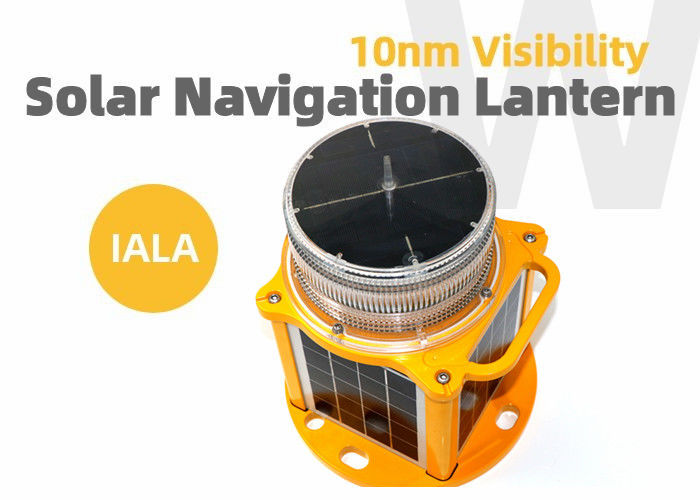

The 10nm Solar LED Marine Channel Marker Lights is a self-contained, compact solar lantern with ranges of up to 10 nm. Its light and compact design makes it the ideal lantern for buoys and for marking waterways and ports. Due to its diffusing lens made of polycarbonate and the highly efficient solar modules, the light is ideally suited for use in northern latitudes and areas of low solar radiation.The 10nm Solar Powered Cardinal Buoys Lights is maintenance-free.It is available in red, yellow, green and white. Our videos show the variants in red, yellow and green. are prescribed across the world by the International Association of Lighthouse Authorities (IALA). In 1977 this IALA endorsed two maritime buoyage systems putting an end to the 30 odd systems existing at that time.



SPECIFICATIONS





10nm Solar LED Marine Channel Marker Lights



Mechanical Specifications Electrical Specifications



Peak Intensity



1500cd with 6nm visibility, adjustable Structure

Solar Integrated Design

Bird deterrent conjoined with lens for not easy to break



Working Model



Flashing Lens Material Polycarbonate



Protect Level



IP68 Solar Panel 7W * 4pcs mono



Energy Manage System (EMS)



Intelligent Microprocessor Storage Battery 12.8V10AH LiFePO4 battery



Temperature



-45℃~70℃ Function Optional Location,256IALA flashing patterns



Continuous Working Hours

250hours Mounting 4 bolts M6 for Mounting



Automatic Light Control (ALC)



Turn on at night and off at daytime automatically Standard



IALA







10nm LED Bridge Navigation Lights IALA 256 Shock Resistant 0



NOTE:

  • Year-round, unrestricted solar exposure is critical to long-term performance. Shade dramatically reduces the ability of the light to charge its battery.
  • Charge every 3 months when storing.



KEY FEATURES


1. Based on LED technology, and its color complies to IALA Recommendations E-200-1.LED technology reduces maintenance time & costs
2. PC housing, UV resistance, shockproof and corrosion proof.
3. Bird deterrent spike as optional.
4. Powder coated die casting aluminum base.
5. 4-side mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon.
6. 4-side solar panel vertical angle adjustable.
7. ON/OFF button interface.
8. Solar panel as photocell for day/night operation(dusk to dawn)
9. 256 kinds of flashing rate comply with IALA, controlled by remote controller.








SIZE (mm)

10nm LED Bridge Navigation Lights IALA 256 Shock Resistant 1



Recent Projects

Our unique.portable designs ensure navigation lanterns can withstand harsh conditions at sea. All components are housed in rugged, high grade enclosure to ensure long-term performance with no maintenance. Since 2010, WelandSignalTM has finished 32,000 installations over 80 countries.



10nm LED Bridge Navigation Lights IALA 256 Shock Resistant 2
