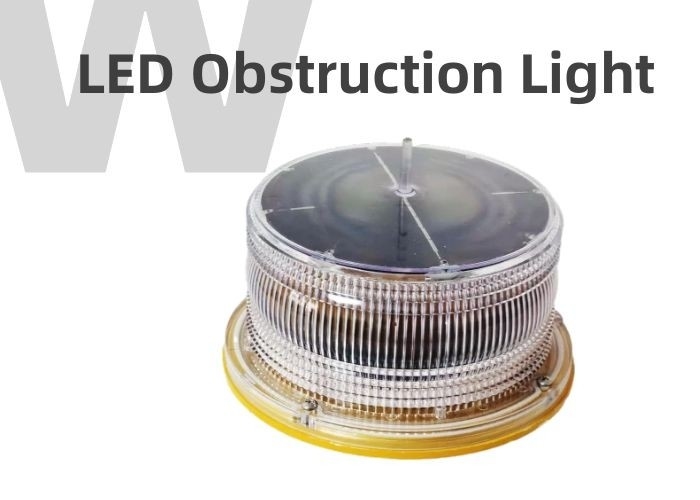

IP68 Waterproof Crane Aviation Light Polycarbonate LED Strobe Warning Lights

IP68 Waterproof Crane Aviation Light Polycarbonate LED Strobe Warning Lights

  • IP68 Waterproof Crane Aviation Light Polycarbonate LED Strobe Warning Lights
  • IP68 Waterproof Crane Aviation Light Polycarbonate LED Strobe Warning Lights
  • IP68 Waterproof Crane Aviation Light Polycarbonate LED Strobe Warning Lights
  • IP68 Waterproof Crane Aviation Light Polycarbonate LED Strobe Warning Lights
  • IP68 Waterproof Crane Aviation Light Polycarbonate LED Strobe Warning Lights
IP68 Waterproof Crane Aviation Light Polycarbonate LED Strobe Warning Lights
Product Details:
Place of Origin: SHAANXI, CHINA
Brand Name: WelandSignal
Certification: ROHS, CE
Model Number: TFS302P
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD$49~69
Packaging Details: Each has one small carton and 6pcs in one big carton
Delivery Time: 3-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Light Source: Super Bright LED Color: Red, Green, Yellow, Blue, White
Material: Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection Working Mode: Flashing, Steady On
Peak Intensity: 10cd, 32.5cd, 55cd Waterproof: IP68
Solar Panel: 1.5W Mono Battery: 5000mAh Lithium Battery
Mounting: 4pcs Bolts Warranty: 3 Years
OEM: Color, Flashing Frequency, Logo, Carton Design Standard: FAA,ICAO
Application: Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area
High Light:

IP68 Waterproof Crane Aviation Light

,

Polycarbonate LED Strobe Warning Lights

,

IP68 super bright led strobe lights

Led Strobe Warning Lights for tower cranes example: illuminate the working area under the tower crane.

LED Crane Lighting luminaires must be mounted on a 70-meter boom that is approximately 85 meters above the ground.
Halogen spotlights have previously been used for this purpose, but more recently LED floodlights have proven to be ideal crane lights.
A 300-watt floodlight, and sometimes a 1000-watt LED floodlight for cranes (depending on the project), easily meets the minimum floor level requirements.

Solution: Replace halogen lamps with 400-watt LED spotlights for regulatory lighting. Naturally, this light must be propelled to reach the ground. The use of primary and secondary optics in the form of lenses with corresponding power will focus and direct the light flux in the correct direction.





SPECIFICATIONS

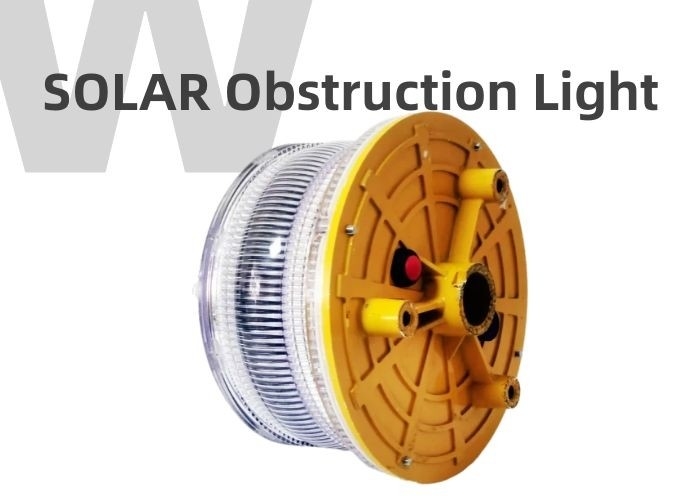

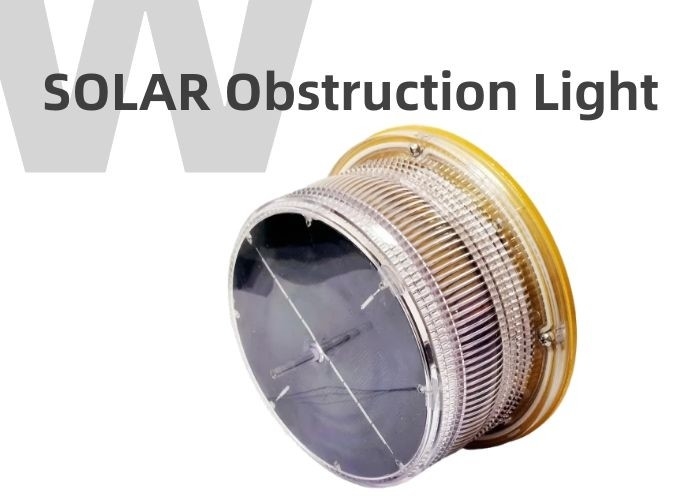

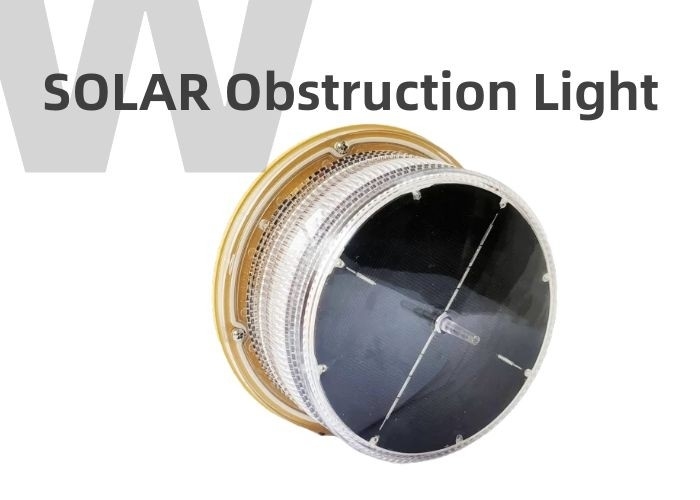

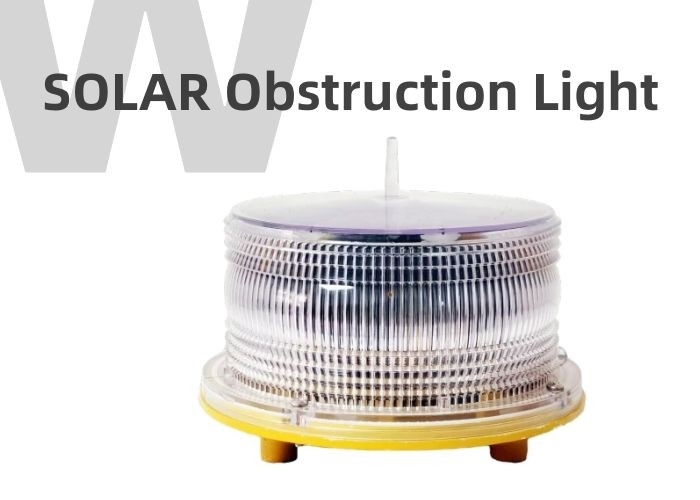

Solar LED Crane Obstacle Lighting



Mechanical Specifications Mechanical Specifications



Peak Intensity



Steady On : 32.5cd

Flashing: 55cd

Structure

Solar Integrated Design

Bird deterrent conjoined with lens for not easy to break



Working Model



Flahing/Steady On Lens Material Polycarbonate



Protect Level



IP68 Solar Panel 1.5 W mono



Energy Manage System (EMS)



Intelligent Microprocessor Storage Battery 5000mAh Lithium battery



Temperature



-45℃~70℃ Function Optional Synchronization



Continuous Working Hours

200hours Mounting 4 bolts M6 for Mounting



Automatic Light Control (ALC)



Turn on at night and off at daytime automatically OEM Service

Color: Red, Green, Yellow, Blue, White

Flashing frequency



IP68 Waterproof Crane Aviation Light Polycarbonate LED Strobe Warning Lights 0



NOTE:

  • Year-round, unrestricted solar exposure is critical to long-term performance. Shade dramatically reduces the ability of the light to charge its battery.
  • Charge every 3 months when storing.



KEY FEATURES



ENERGY SAVING

  • Solar LED Crane Obstacle Lighting can operate with solar panels and batteries in order to offer low power consumption.
  • Will charge under nearly all weather conditions and up to 200 hours of operating capacity.
  • Over 60% cost saving, compared with using traditional types. No cables or electrical infrastructure required, and lab also saves by no need to take heavy to the top.



UP-TO-DATE MATERIALS AND TECHNOLOGY

  • We update main components every year with the rapid development of solar panel, batteries and LEDs.
  • We always keep ourselves up-to-date.



RELIABLE

  • Patented dome protects solar panel while improving efficiency, sheds snow.
  • Regulation automatically turns on at dusk and off at dawn.






IP68 Waterproof Crane Aviation Light Polycarbonate LED Strobe Warning Lights 1

SIZE (mm)



IP68 Waterproof Crane Aviation Light Polycarbonate LED Strobe Warning Lights 2

STANDARD

IP68 Waterproof Crane Aviation Light Polycarbonate LED Strobe Warning Lights 3

PACKING DETAILS

IP68 Waterproof Crane Aviation Light Polycarbonate LED Strobe Warning Lights 4
