| Place of Origin: | SHAANXI, CHINA |
| Brand Name: | WelandSignal |
| Certification: | ROHS, CE |
| Model Number: | TFS1803 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD$59~79 |
| Packaging Details: | Each has one small carton and 6pcs in one big carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000pcs/month |
| Light Source: | Super Bright LED | Color: | Red, Green, Yellow, Blue, White |
|---|---|---|---|
| Material: | Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection | Working Mode: | Flashing, Steady On |
| Peak Intensity: | 10cd, 32.5cd, 55cd | Waterproof: | IP68 |
| Solar Panel: | 2W Mono | Battery: | LifePO4 Lithium Battery |
| Mounting: | 4pcs Bolts | Warranty: | 3 Years |
| OEM: | Color, Flashing Frequency, Logo, Carton Design | Standard: | FAA,ICAO |
| Application: | Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area | ||
| High Light: | Synchronization Aircraft warning lights,Aircraft warning lights on tower cranes ICAO,ICAO tower crane warning lights |
||

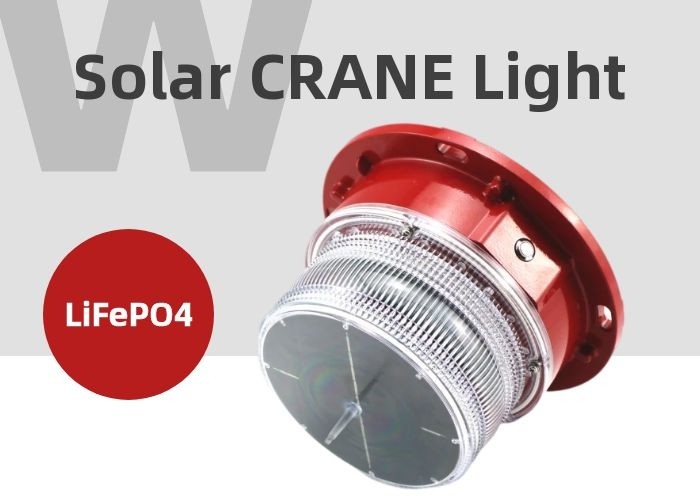

The TFS1803Aircraft warning lights on tower cranes Light is ideal for on-site marking of ground hazards, fences, roadblocks and other construction hazards.According to Federal Aviation Administration (FAA) and International Civil Aviation Organization (ICAO) tower lighting requirements, all structures exceeding 200 feet above ground level (AGL) must be appropriately marked with tower lights or tower painting. In addition, the Federal Communications Commission governs monitoring requirements.
SPECIFICATIONS
|
Aircraft warning lights on tower cranes
|
|||
| Mechanical Specifications | Electrical Specifications | ||
|
Peak Intensity
|
Steady On : 32.5cd Flashing: 55cd |
Structure |
Solar Integrated Design Bird deterrent conjoined with lens for not easy to break |
|
Working Model
|
Flahing/Steady On | Lens Material | Polycarbonate |
|
Protect Level
|
IP68 | Solar Panel | 2W mono |
|
Energy Manage System (EMS)
|
Intelligent Microprocessor | Storage Battery | 3.7V8.8AH LiFePO4 battery |
|
Temperature
|
-45℃~70℃ | Function Optional | Synchronization |
|
Continuous Working Hours |
250hours | Mounting | 4 bolts M6 for Mounting |
|
Automatic Light Control (ALC)
|
Turn on at night and off at daytime automatically | OEM Service |
Color: Red, Green, Yellow, Blue, White Flashing frequency |
Advantages of led lights
IMAGES
SIZE (mm)
STANDARD
1 – IF THE CRANE IS TO BE LIGHTED ONLY AT NIGHT
2 – IF THE CRANE IS TO BE LIGHTED DAY AND NIGHT WITH WHITE LIGHTS
3 – IF THE CRANE IS TO BE LIGHTED WITH WHITE AND RED LIGHTS
