Solar LED Crane Aviation Light IP68 Waterproof FAA Shock Resistant

Solar LED Crane Aviation Light IP68 Waterproof FAA Shock Resistant

  • Solar LED Crane Aviation Light IP68 Waterproof FAA Shock Resistant
  • Solar LED Crane Aviation Light IP68 Waterproof FAA Shock Resistant
  • Solar LED Crane Aviation Light IP68 Waterproof FAA Shock Resistant
  • Solar LED Crane Aviation Light IP68 Waterproof FAA Shock Resistant
  • Solar LED Crane Aviation Light IP68 Waterproof FAA Shock Resistant
  • Solar LED Crane Aviation Light IP68 Waterproof FAA Shock Resistant
  • Solar LED Crane Aviation Light IP68 Waterproof FAA Shock Resistant
Solar LED Crane Aviation Light IP68 Waterproof FAA Shock Resistant
Product Details:
Place of Origin: SHAANXI, CHINA
Brand Name: WelandSignal
Certification: ROHS, CE
Model Number: AFS302P
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD$49~69
Packaging Details: Each has one small carton and 6pcs in one big carton
Delivery Time: 3-7 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Light Source: Super Bright LED Color: Red, Green, Yellow, Blue, White
Material: Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection Working Mode: Flashing, Steady On
Peak Intensity: 10cd, 32.5cd, 55cd Waterproof: IP68
Solar Panel: 1.5W Mono Battery: 5000mAh Lithium Battery
Mounting: 4pcs Bolts Warranty: 3 Years
OEM: Color, Flashing Frequency, Logo, Carton Design Standard: FAA,ICAO
Application: Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area
High Light:

Solar LED Crane Aviation Light

,

Crane Aviation Light FAA Shock Resistant

,

FAA Crane Aviation Warning Light

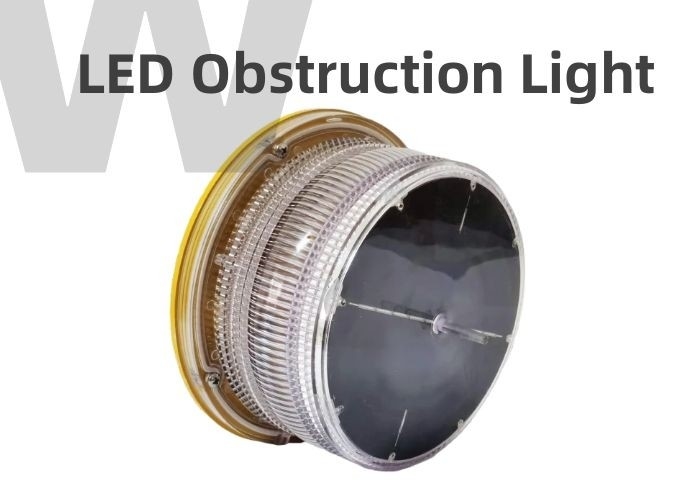

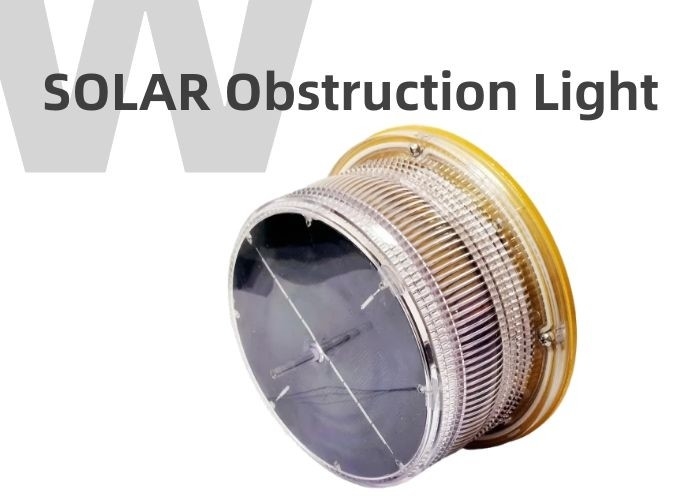

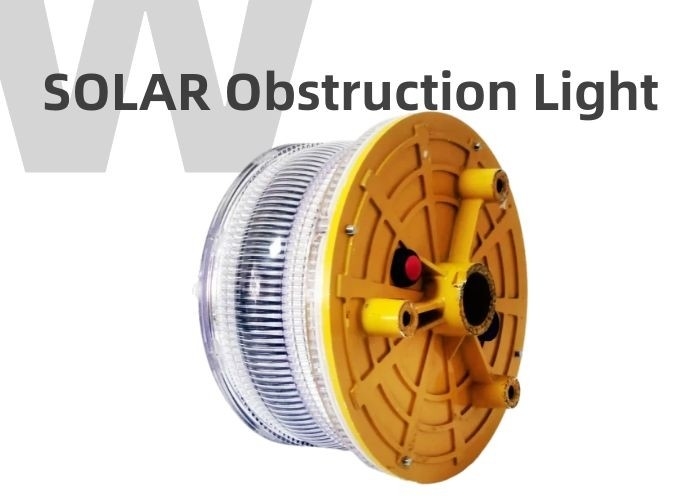

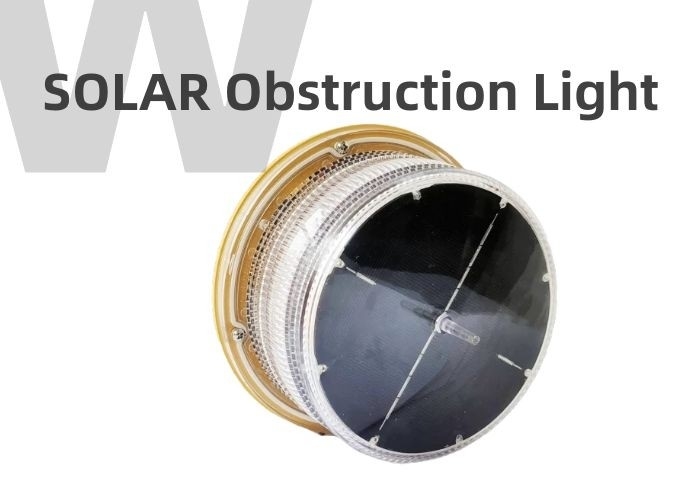

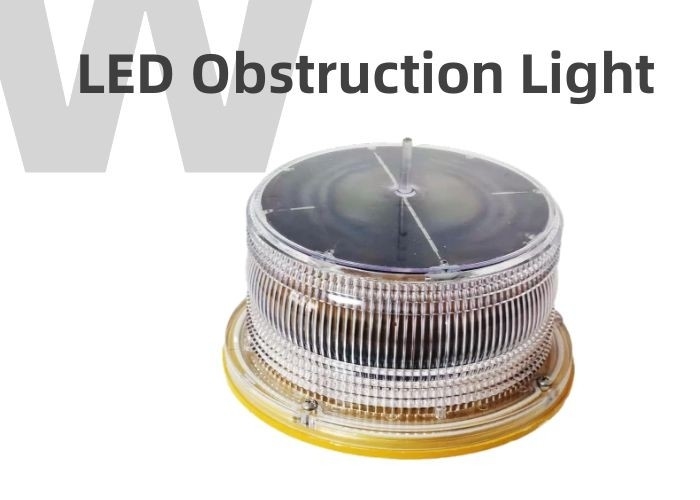

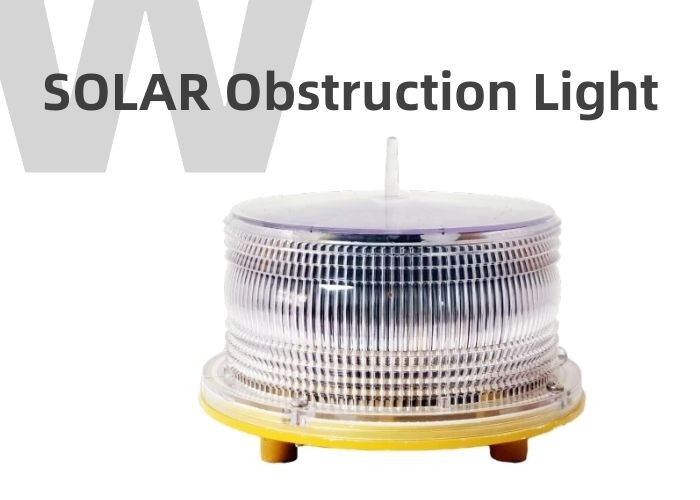

Solar LED Crane Obstacle Lighting is an integrated lighting solution packed in one structure including solar panel, lithium battery and high efficiency LED sources. It is the first model of WelandSignal for aviation obstruction lighting with solar type. Because of its integrated type, it has become the most classical model and serviced for more than 80 counties. In more than 50,000 projects.

A crane is a type of machine that offer the best combination of height and lifting capacity and are mainly used in the construction of tall buildings. As any tall structure, the presence of a single or a group pf cranes have the potential risk to cause accident happen. So it is necessary to mark the cranes with clear lights.

The AFS302P is designed to meet lighting standards for FAA L-810, ICAO low intensity types A/B (red). It works as low intensity obstruction light. East to install with only 4 bolts, and requires no maintenance or servicing for up to five years. It complies with FAA & ICAO’s requirements.



SPECIFICATIONS





Solar LED Crane Obstacle Lighting



Mechanical Specifications Mechanical Specifications



Peak Intensity



Steady On : 32.5cd

Flashing: 55cd

Structure

Solar Integrated Design

Bird deterrent conjoined with lens for not easy to break



Working Model



Flahing/Steady On Lens Material Polycarbonate



Protect Level



IP68 Solar Panel 1.5 W mono



Energy Manage System (EMS)



Intelligent Microprocessor Storage Battery 5000mAh Lithium battery



Temperature



-45℃~70℃ Function Optional Synchronization



Continuous Working Hours

200hours Mounting 4 bolts M6 for Mounting



Automatic Light Control (ALC)



Turn on at night and off at daytime automatically OEM Service

Color: Red, Green, Yellow, Blue, White

Flashing frequency



Solar LED Crane Aviation Light IP68 Waterproof FAA Shock Resistant 0



NOTE:

  • Year-round, unrestricted solar exposure is critical to long-term performance. Shade dramatically reduces the ability of the light to charge its battery.
  • Charge every 3 months when storing.



KEY FEATURES



ENERGY SAVING

  • Solar LED Crane Obstacle Lighting can operate with solar panels and batteries in order to offer low power consumption.
  • Will charge under nearly all weather conditions and up to 200 hours of operating capacity.
  • Over 60% cost saving, compared with using traditional types. No cables or electrical infrastructure required, and lab also saves by no need to take heavy to the top.



UP-TO-DATE MATERIALS AND TECHNOLOGY

  • We update main components every year with the rapid development of solar panel, batteries and LEDs.
  • We always keep ourselves up-to-date.



RELIABLE

  • Patented dome protects solar panel while improving efficiency, sheds snow.
  • Regulation automatically turns on at dusk and off at dawn.








Solar LED Crane Aviation Light IP68 Waterproof FAA Shock Resistant 1

SIZE (mm)



Solar LED Crane Aviation Light IP68 Waterproof FAA Shock Resistant 2

STANDARD

Solar LED Crane Aviation Light IP68 Waterproof FAA Shock Resistant 3

PACKING DETAILS

Solar LED Crane Aviation Light IP68 Waterproof FAA Shock Resistant 4
