| Place of Origin: | SHAANXI, CHINA |
| Brand Name: | WelandSignal |
| Certification: | ROHS, CE |
| Model Number: | AFS1803 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD$59~79 |
| Packaging Details: | Each has one small carton and 6pcs in one big carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000pcs/month |
| Light Source: | Super Bright LED | Color: | Red, Green, Yellow, Blue, White |
|---|---|---|---|
| Material: | Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection | Working Mode: | Flashing, Steady On |
| Peak Intensity: | 10cd, 32.5cd, 55cd | Waterproof: | IP68 |
| Solar Panel: | 2W Mono | Battery: | LifePO4 Lithium Battery |
| Mounting: | 4pcs Bolts | Warranty: | 3 Years |
| OEM: | Color, Flashing Frequency, Logo, Carton Design | Standard: | FAA,ICAO |
| Application: | Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area | ||
| High Light: | LED Solar Aviation Light For Tower Crane,Aviation Light For Tower Crane ICAO,ICAO solar aircraft warning light |
||

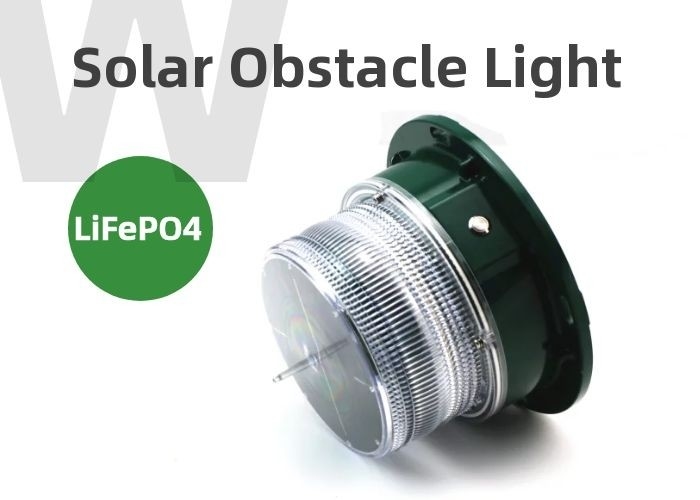

The TFS1803 Solar LED Crane Obstacle Light is s a lightweight, high performance solar safety light with superior energy management capabilities. Designed for harsh industrial locations such as mines and construction areas, the TFS1803 Solar LED Crane Obstacle Light is ideal for on-site marking of ground hazards, fences, roadblocks and other construction hazards.
NOTE:
KEY FEATURES
TFS1803 Models and Options
Color Output: The TFS1803 is available in various color configurations depending on your application. Check the specs to see the intensity settings for each color option. Peak intensity depends on your location and selected flash mode.
TFS1803 with ON/OFF Switch: The solar safe light with ON/OFF switch option allows you to easily turn the light on and off when needed. When the switch is in the ON position, the light will charge during the day and turn on at night. When the switch is in the off position, the light will still charge, but it will not light up at night.
TFS1803 without ON/OFF switch: Solar warning lights without ON/OFF switch are pre-programmed to turn on at night. Just install the light where you need it and it will automatically charge during the day and turn on when night falls.
SPECIFICATIONS
|
TFS1803 Red/ Green Solar LED Crane Obstacle Light
|
|||
| Mechanical Specifications | Electrical Specifications | ||
|
Peak Intensity
|
Steady On : 32.5cd Flashing: 55cd |
Structure |
Solar Integrated Design Bird deterrent conjoined with lens for not easy to break |
|
Working Model
|
Flahing/Steady On | Lens Material | Polycarbonate |
|
Protect Level
|
IP68 | Solar Panel | 2W mono |
|
Energy Manage System (EMS)
|
Intelligent Microprocessor | Storage Battery | 3.7V8.8AH LiFePO4 battery |
|
Temperature
|
-45℃~70℃ | Function Optional | Synchronization |
|
Continuous Working Hours |
250hours | Mounting | 4 bolts M6 for Mounting |
|
Automatic Light Control (ALC)
|
Turn on at night and off at daytime automatically | OEM Service |
Color: Red, Green, Yellow, Blue, White Flashing frequency |
IMAGES
SIZE (mm)
STANDARD
1 – IF THE CRANE IS TO BE LIGHTED ONLY AT NIGHT
2 – IF THE CRANE IS TO BE LIGHTED DAY AND NIGHT WITH WHITE LIGHTS
3 – IF THE CRANE IS TO BE LIGHTED WITH WHITE AND RED LIGHTS
