Electrostatic Polyester 48VDC Light Controller Panel Cold Rolled Steel

Electrostatic Polyester 48VDC Light Controller Panel Cold Rolled Steel

48VDC Light Controller Panel

Light Controller Panel Cold Rolled Steel

48VDC LED Light Control Panel

Place of Origin:

SHAANXI, CHINA

Brand Name:

WelandSignal

Certification:

ROHS,CE

Model Number:

CL01

Contact Us
Request A Quote
Electrostatic Polyester 48VDC Light Controller Panel Cold Rolled Steel
Product Details
Input Power Voltage:
100-240VAC(50/60HZ)
Output Operation Voltage:
48VDC
Surge Protector:
65KA/2.5KV
Protection Class:
IP65
Material (Two Options):
Cold-Rolled Steel Sheet, Ral-7035 Electrostatic Polyester
Operating Temperature:
-30C°-+60C°
Dimension:
400mm*300mm*150mm
Weight:
8kg
Application:
Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area
Standard:
FAA,ICAO
Highlight:

48VDC Light Controller Panel

,

Light Controller Panel Cold Rolled Steel

,

48VDC LED Light Control Panel

Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
USD$199
Packaging Details
Each has one small carton
Delivery Time
3-7 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
20000pcs/month
RELATED PRODUCTS
Good price DC24V 48V Low Intensity Aircraft Warning Lights On Towers online

DC24V 48V Low Intensity Aircraft Warning Lights On Towers

Get Best Price
Good price Solar Red Tower Obstruction Light Aircraft Warning Lights On Tower Cranes online

Solar Red Tower Obstruction Light Aircraft Warning Lights On Tower Cranes

Get Best Price
Good price Maintenance Free Dual Obstruction Light Mounting Brackets ROHS online

Maintenance Free Dual Obstruction Light Mounting Brackets ROHS

Get Best Price
Good price 304 316 Stainless Steel Light Brackets For OL10 Low Intensity Obstruction Light online

304 316 Stainless Steel Light Brackets For OL10 Low Intensity Obstruction Light

Get Best Price
Contact Us
Contact Now
Product Description

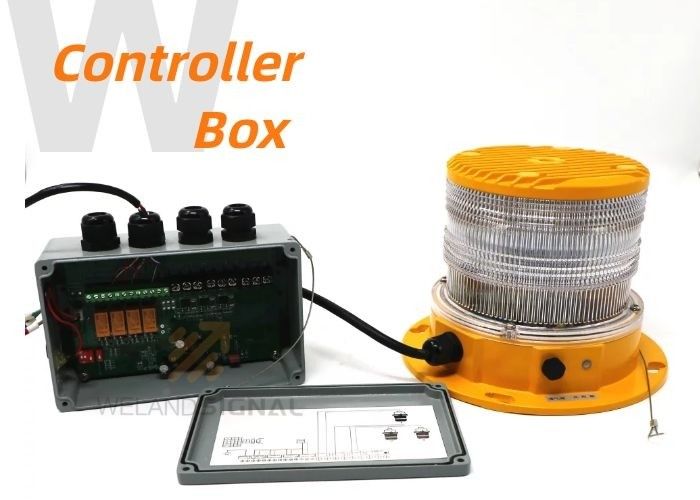

Our LED Obstruction Lighting Controller with Transfer Relay & Alarm Relay is designed to reliably monitor the proper operation of the latest low power LED obstruction lights and features a range of dry alarm contacts to report all aspects of system health.



Specifications

Electrostatic Polyester 48VDC Light Controller Panel Cold Rolled Steel 0



Electrostatic Polyester 48VDC Light Controller Panel Cold Rolled Steel 1

Features

  • Control up to three medium intensity beacons and 1 level of up to 4 units of low intensity single obstruction lights, also suitable for only single or double obstruction lighting system.
  • LED indicators in control board to indicate lights, power, photocell operation status
  • Alarm relay for each beacon
  • Alarm relay for each sidelight level
  • Alarm signal output, easy for connecting remote alarm monitoring device
  • Combined with welandsignal' photocell, which can turn on/off the system from dusk to dawn
  • Surge protedtor for input and output



Detailed Images



Electrostatic Polyester 48VDC Light Controller Panel Cold Rolled Steel 2



Typical System Application

Electrostatic Polyester 48VDC Light Controller Panel Cold Rolled Steel 3
