10nm Cardinal Buoys Lights Solar Powered IALA 256 Solar Powered

10nm Cardinal Buoys Lights Solar Powered IALA 256 Solar Powered

10nm Cardinal Buoys Lights

Cardinal Buoys Lights IALA 256

IALA 256 solar powered buoy lights

Place of Origin:

SHAANXI, CHINA

Brand Name:

WelandSignal

Certification:

ROHS, CE

Model Number:

NFS1500

Contact Us
Request A Quote
Product Details
Light Source:
Super Bright LED
Color:
Red, Yellow ,green ,blue, White
Material:
Polycarbonate, Shock-resistance, Anti-UV, Salt And Dust Self-protection
Design Idea:
Integrated Construction Bird Deterrent Conjoined With Lens For Not Easy To Break
Visibility:
10nm
Waterproof:
IP68
Solar Panel:
7W * 4pcs Mono
Battery:
12.8V10AH LiFePO4 Battery
Mounting:
4pcs Bolts
Warranty:
3 Years
Standard:
IALA 256 Flashing Pattens
Application:
Vessel Navigation Light, Boat Navigation Lantern, Masthead Light, Stern Light, Side Light, All-round Light, 6nm Solar Boat Navigation Light
Highlight:

10nm Cardinal Buoys Lights

,

Cardinal Buoys Lights IALA 256

,

IALA 256 solar powered buoy lights

Payment & Shipping Terms
Minimum Order Quantity
1pc
Price
USD$299
Packaging Details
Each has one small carton
Delivery Time
3-7 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
20000pcs/month
Product Description

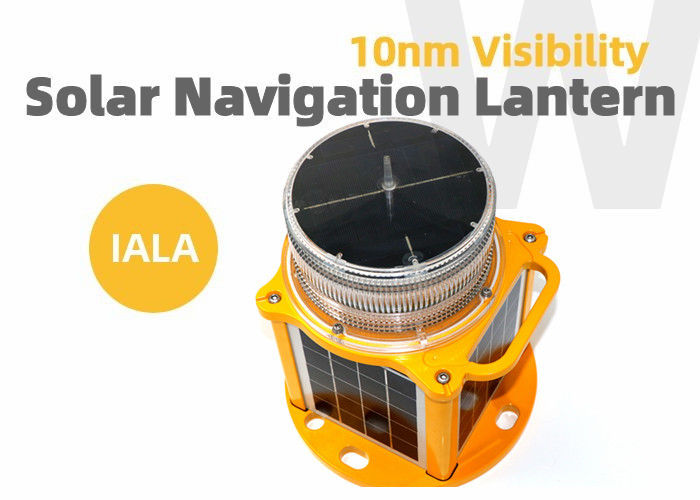

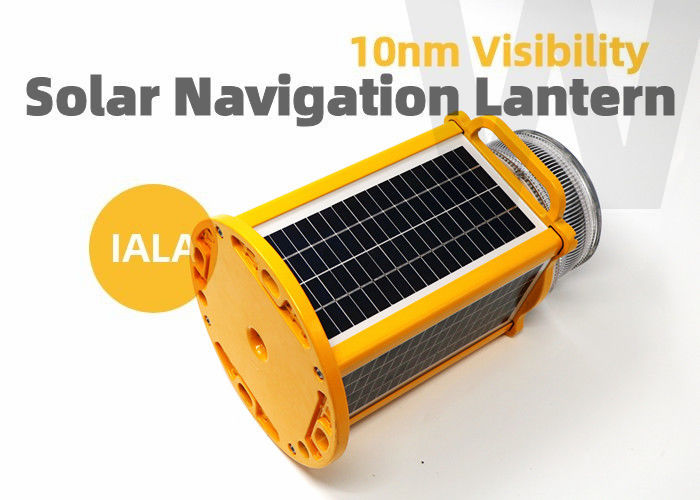

The 10nm Solar Powered Cardinal Buoys Lights are large solar powered marine lanterns with a visible range of 5-12NM and a service life of over 15 years. The power supply unit is made from UV stabilised polyethylene and holds four (4) premium-grade solar modules and a large internal battery. The solar and battery power supply provides an increased working autonomy and is suitable for more demanding user requirements or low sunlight regions. The solar powered lantern uses the NFS1500 as a light-source, offers a range of features including multiple lens divergences and PC programming.

SPECIFICATIONS





10nm Solar Powered Cardinal Buoys Lights



Mechanical Specifications Electrical Specifications



Peak Intensity



2500cd with 10nm visibility, adjustable Structure

Solar Integrated Design

Bird deterrent conjoined with lens for not easy to break



Working Model



Flashing Lens Material Polycarbonate



Protect Level



IP68 Solar Panel7 W * 4pcs mono



Energy Manage System (EMS)



Intelligent Microprocessor Storage Battery 12.8V10AH LiFePO4 battery



Temperature



-45℃~70℃ Function Optional Location, Wireless controller and mornitoring



Continuous Working Hours

250hours Mounting 4 bolts M6 for Mounting



Automatic Light Control (ALC)



Turn on at night and off at daytime automatically Standard



256IALA flashing patterns

Light Characteristics NFS1500
Available Colours: Red, Green, White, Yellow
Typical Maximum Intensity (cd)*: Refer to Typical Maximum Intensity Table for SL-155 Series Lanterns.
Visible range @ 0.74: 5-12 nm
Visible range @ 0.85: 6.3-17.4 nm
Horizontal Output: 360 degrees.
Flash Characteristics: Up to 310 including 256 IALA recommended, & 1 custom.
Intensity Adjustments: User adjustable.
LED Life Expectancy >100.000 hours.



10nm Cardinal Buoys Lights Solar Powered IALA 256 Solar Powered 0



NOTE:

  • Year-round, unrestricted solar exposure is critical to long-term performance. Shade dramatically reduces the ability of the light to charge its battery.
  • Charge every 3 months when storing.



KEY FEATURES



ENERGY SAVING

  • The navigation lights can operate with solar panels and batteries in order to offer low power consumption.

  • Will charge under nearly all weather conditions and up to 200 hours of operating capacity.

  • Over 60% cost saving, compared with using traditional types. No cables or electrical infrastructure required, and lab also saves by no need to take heavy to the top.



UP-TO-DATE MATERIALS AND TECHNOLOGY

  • We update main components every year with the rapid development of solar panel, batteries and LEDs.
  • We always keep ourselves up-to-date.



RELIABLE

  • Patented dome protects solar panel while improving efficiency, sheds snow.
  • Regulation automatically turns on at dusk and off at dawn.



SIZE (mm)

10nm Cardinal Buoys Lights Solar Powered IALA 256 Solar Powered 1



Recent Projects

Our unique.portable designs ensure navigation lanterns can withstand harsh conditions at sea. All components are housed in rugged, high grade enclosure to ensure long-term performance with no maintenance. Since 2010, WelandSignalTM has finished 32,000 installations over 80 countries.
