| Place of Origin: | SHAANXI, CHINA |
| Brand Name: | WelandSignal |
| Certification: | ROHS,CE |
| Model Number: | CL01 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD$199 |
| Packaging Details: | Each has one small carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000pcs/month |
| Input Power Voltage: | 100-240VAC(50/60HZ) | Output Operation Voltage: | 48VDC |
|---|---|---|---|
| Surge Protector: | 65KA/2.5KV | Protection Class: | IP65 |
| Material (Two Options): | Cold-Rolled Steel Sheet, Ral-7035 Electrostatic Polyester | Operating Temperature: | -30C°-+60C° |
| Dimension: | 400mm*300mm*150mm | Weight: | 8kg |
| Application: | Tower, Chimney ,tall Buildings, Bridge Aviation Obstruction Lighting Area | Standard: | FAA,ICAO |
| High Light: | AC DC Obstruction Light Controller,Obstruction Light Controlle IP65,IP65 light control panel |
||

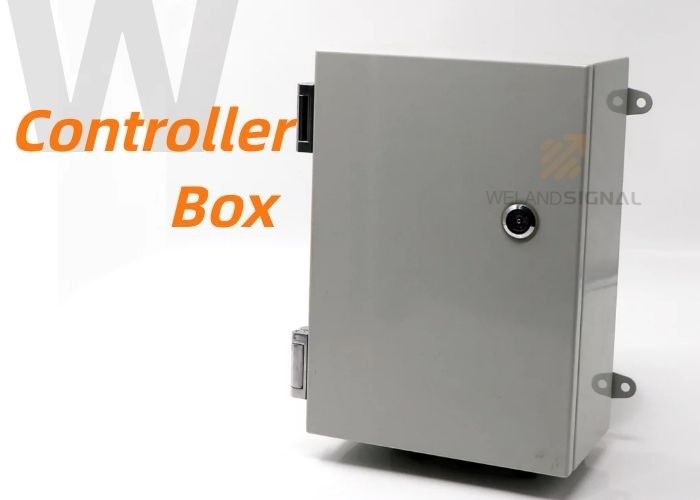

Control Box for LED Obstruction Light
WelandSignalTM Obstruction Light Control Box is specially designed for voltage AC input and DC output outdoor controller installation, to control and monitor aviation obstruction lighting system. It employs MCU IC control technology. With a programmed software, control up to 4 ways aviation obstruction lights. In case of any medium intensity beacon or any level of low intensity sidelights failure, will send alarm signal to the controller and then output to remote monitoring system. A photocell is deployed within the controller system, which can turn on/off the system from dusk to dawn automatically, easy for maintenance and trouble shooting. Once the photocell fails, all lights in the system will be on in a safe status.
Specifications
Features
Detailed Images
Typical System Application
